8-72 Section 8-5 - Electronic Boards- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
6.) Using both hands, carefully pull the T-FEPS towards you and remove it from the T-CFE.
8-5-3-5 Front End Power Supply (T-FEPS) Installation Procedure
1.) Return a new T-FEPS to its position on the Front End door assembly.
2.) Follow the T-FEPS removal procedure step 4, in reverse order.
3.) Reconnect the cables (previously disconnected).
4.) Close the Front End door and fasten securely with the two latches:
5.) Refit the following covers: Lower Front eTower, Left side eTower, and Right Side eTower:
:
6) Install all accessories.
7.) Turn ON power to the system.

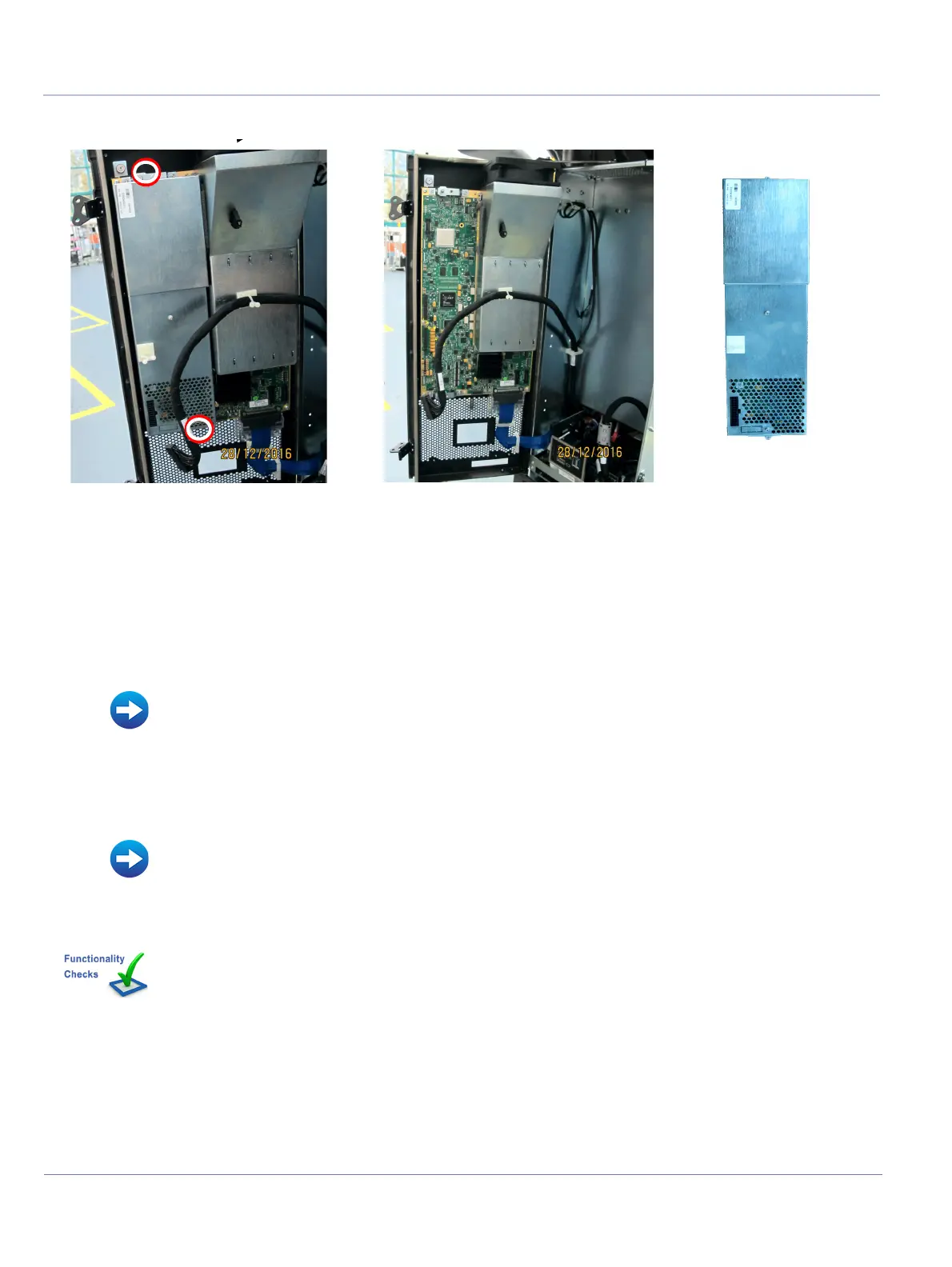

Figure 8-58 Removing the T-FEPS Metal Cover
• Right Side eTower Cover Installation Procedure
• Left Side eTower Cover Installation Procedure
• Lower Front eTower Cover Installation Procedure
• RS Probe Cover Installation Procedure
• Accessories - Replacement Procedures
Perform the checks listed in Front End Power Supply (T-FEPS) Replacement Procedure on page 8-
217
