8-154 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
• Display port
5.) Reconnect the following cable connectors:
• SATA DATA BE TO SSD A (red cable)
• SSD PWR cable
6.) Reconnect the supporting bracket using an appropriate Phillips screwdriver:
• Two captive screws

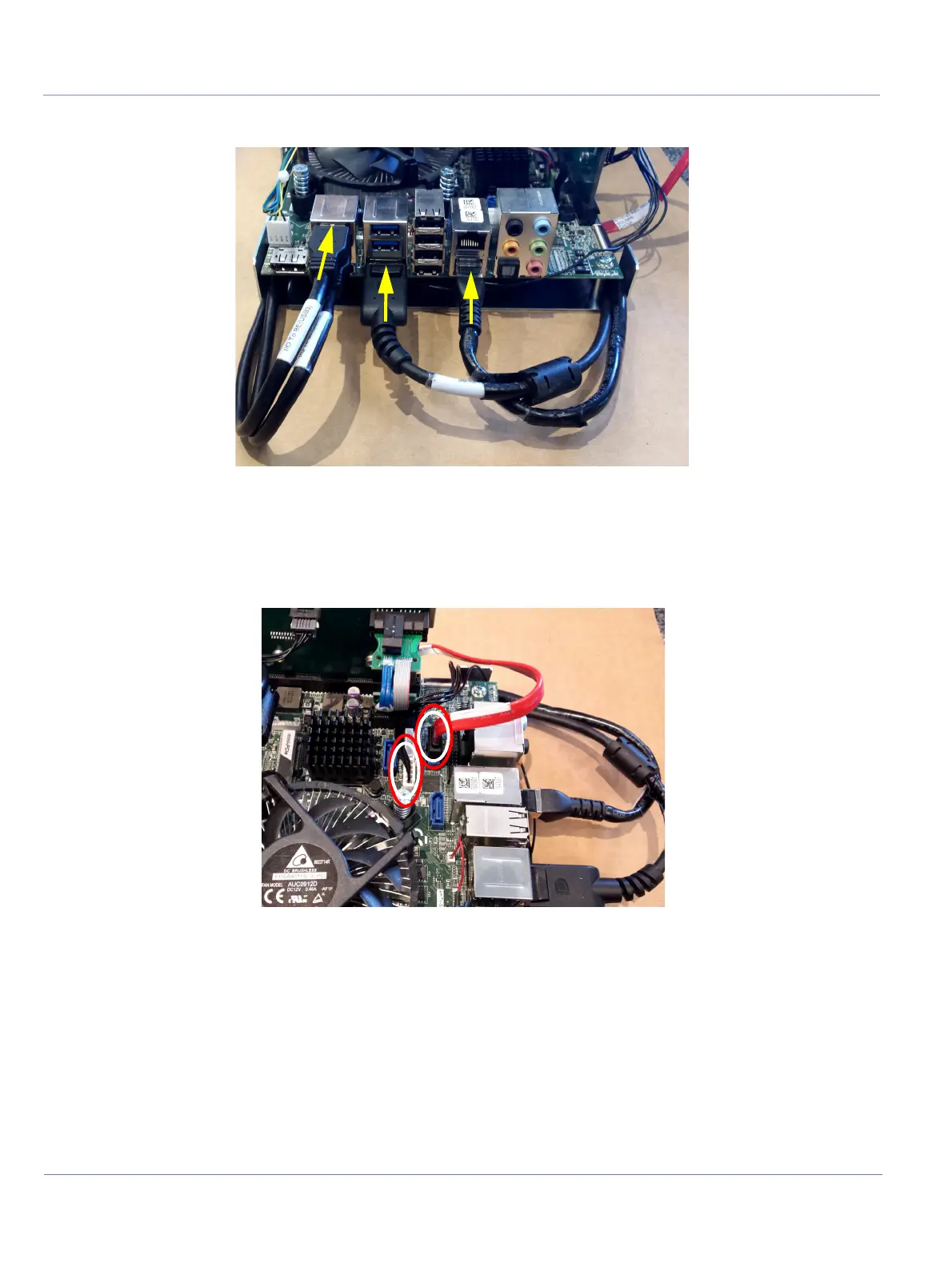

Figure 8-160 Reconnect BE Cables from BE Back
Figure 8-161 Reconnect SATA DATA and SSD PWR Cables
