2.) Route the cables on the BEP bottom bracket as shown below
3.) Reconnect the PCB using four screws in the PCB corners using Phillips screwdriver
4.) Reconnect the following cables at the back of the BE:
• Two USB connectors
• Network cable

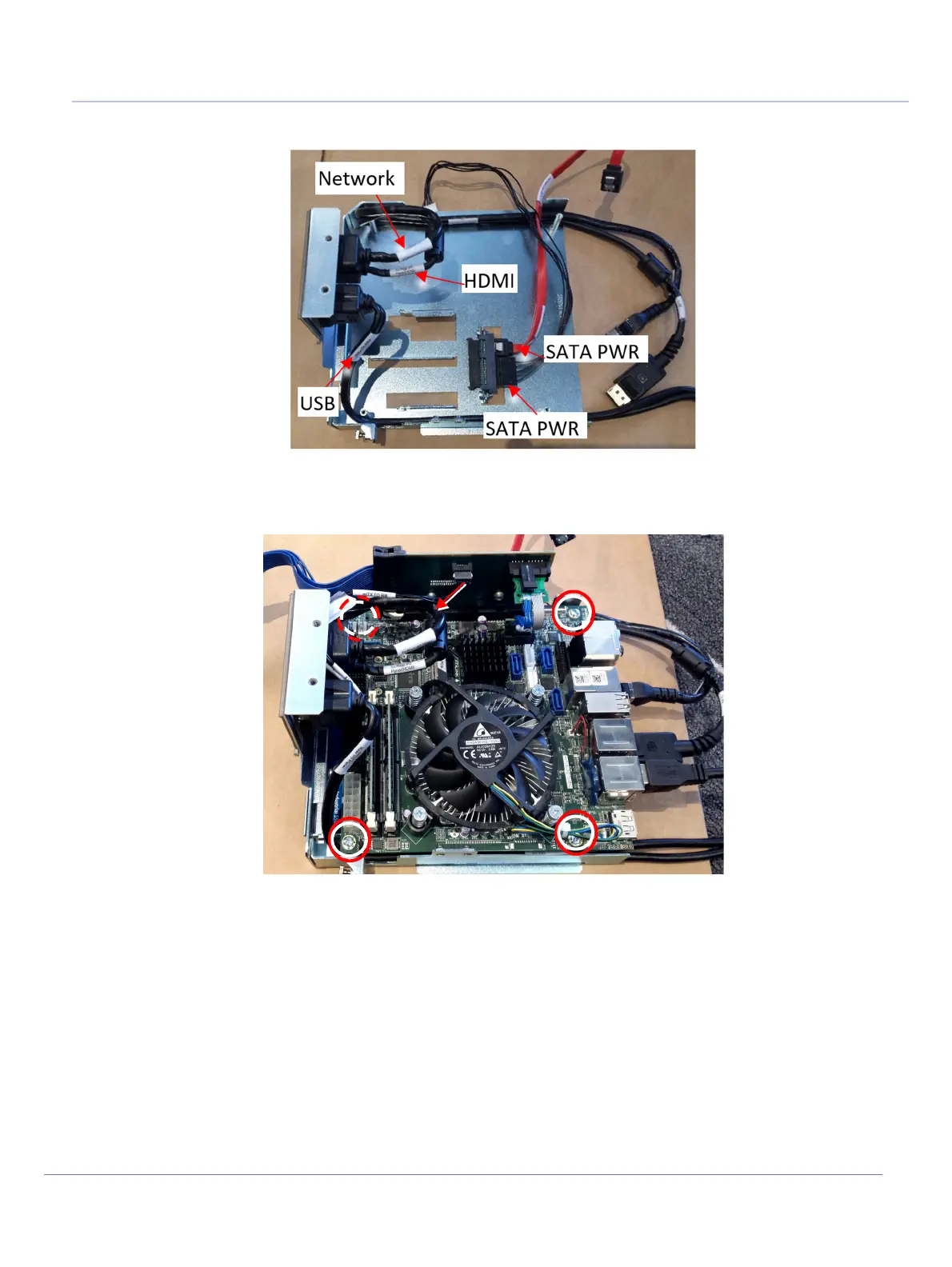

Figure 8-158 Route cables on BEP Bottom Bracket
Figure 8-159 Reconnect PCB
