8-196 Section 8-9 - Operating System and Application Software Loading Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
3.) Select the Select All checkbox to select all patients for backup.
4.) Tap Send Selected.
5.) In the Copy window, select USB Storage and click OK.

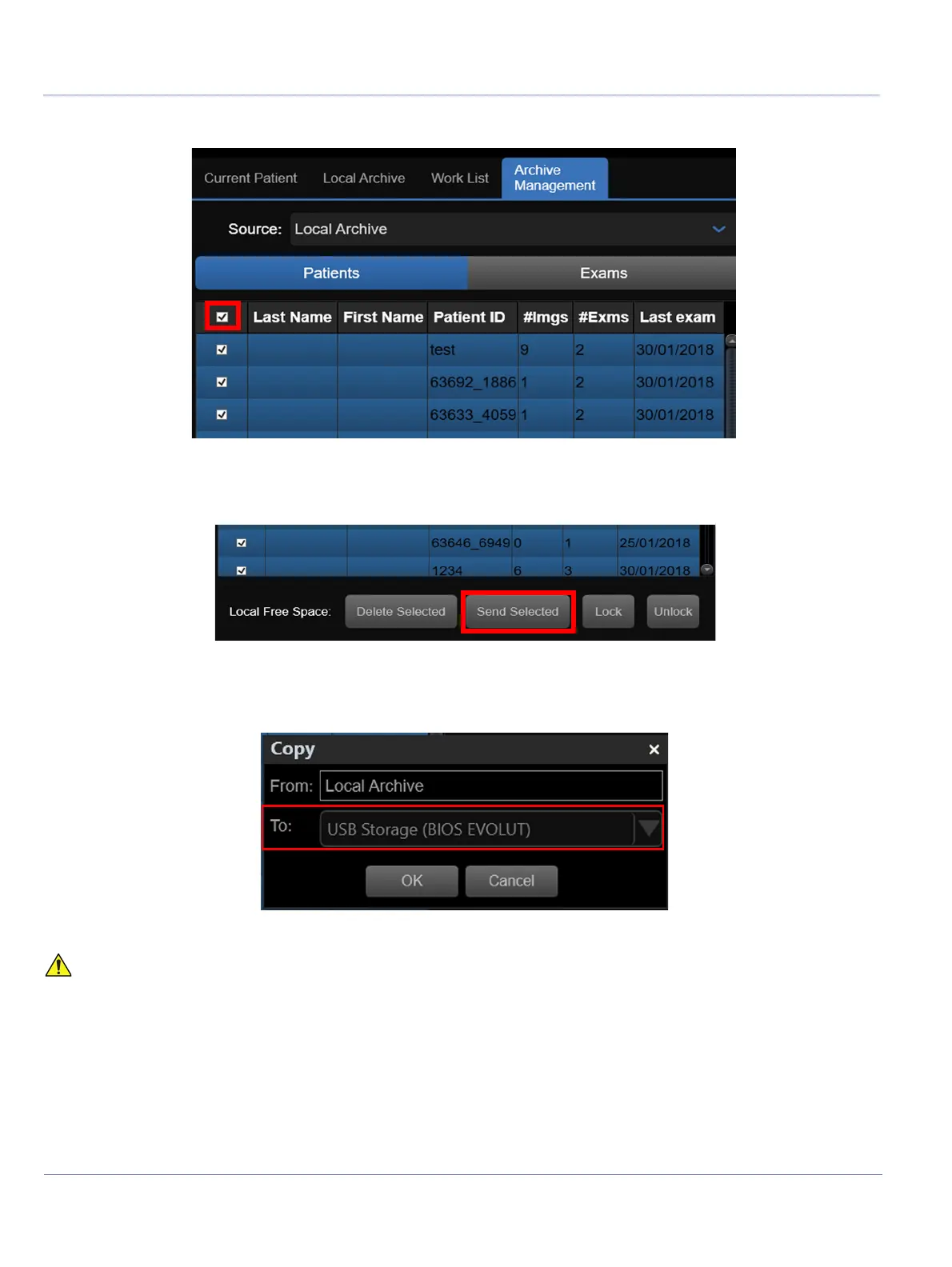

Figure 8-232 Select All Patients for Backup
Figure 8-233 Send Selected Button
Figure 8-234 Copy Window
IMPORTANT Make sure the selected option is USB Storage and not DICOM USB.
