ADV100 • Functions description and parameters list 37

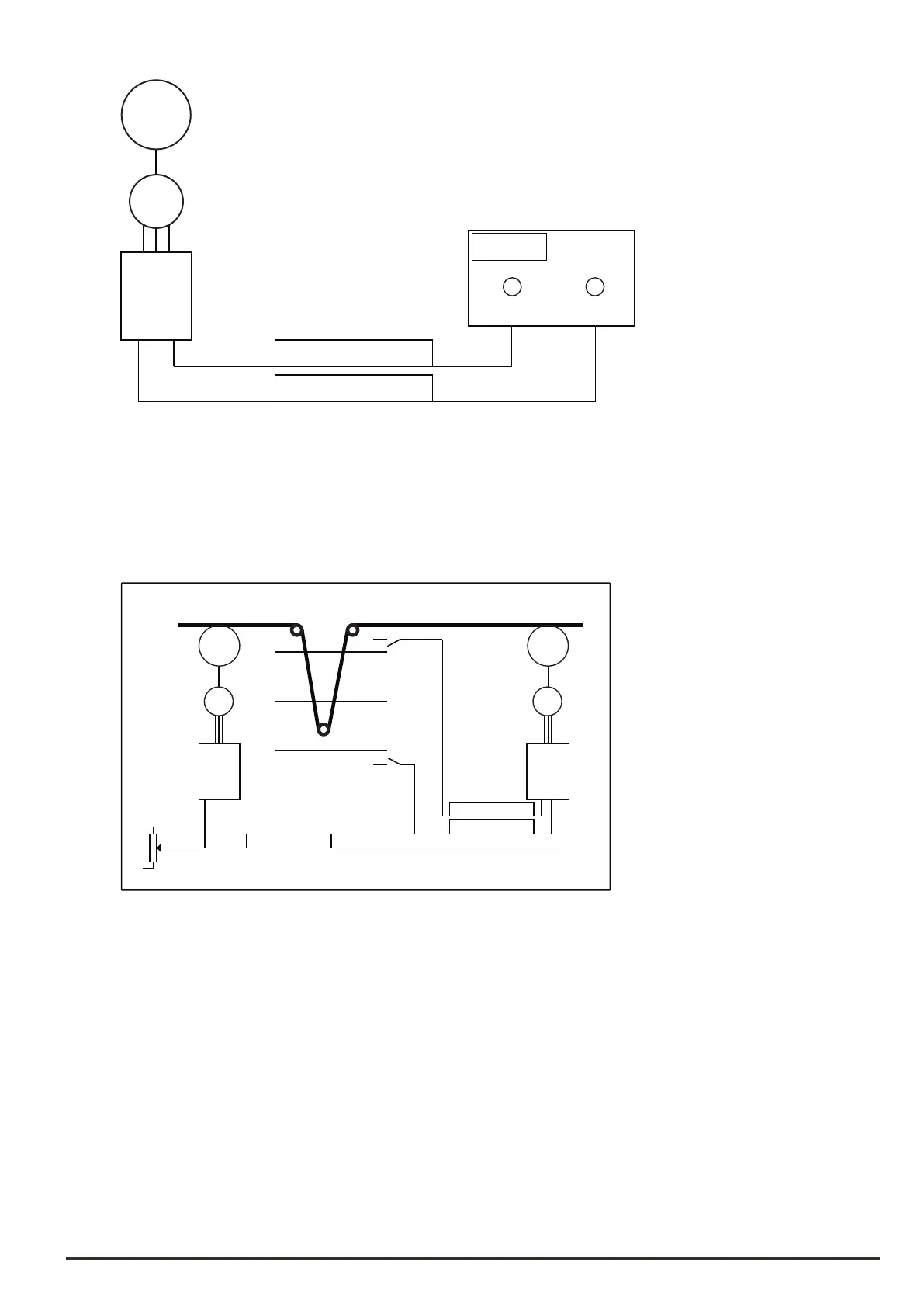

M
ADV
Mpot up
Mpot down
UP DOWN
Speed
Command console
The Up and Down keys are used to adjust the speed of a motor.
For ne-tuning of the speed reference value the recommended settings are MpotMode=Fine&Follow or
Fine&LastVal. Each time they are pressed for 1 second, the speed increases by 1 rpm. For an immediate effect on
motor speed, the Acceleration time and Deceleration time parameters should be set to short times.
Automaticspeedcontrolforrudimentarydancercontrol.
M
ADV
1
M
ADV
2
0V
10V
Center
Bottom
Top
24V
24V
Mpot up
Mpot down
Ramp ref
The limit switches at the ends of dancer travel ranges are connected to the Up and Down commands in the motor
potentiometer function. If the dancer presses the bottom limit switch, this means motor 2 is running slowly and the
Up command must be sent. If the dancer presses the top limit switch, this means motor 2 is running quickly and the
Down command must be sent.
Connect the line reference to Rampref1src on both drives, connect the motor potentiometer function output to
Speedref1src on drive 2.
To change the motor speed immediately, the recommended settings are MpotMode=Ramp&Follow or
Rampa&LastVal.
