Option 2: Ramp behaviour
The two operating modes are: Ramp or Fine
In Ramp mode, each time the Up or Down commands are enabled, the output of the Motor potentiometer function
increases or decreases with the set ramp. When the Up or Down command is removed, the last value that was
reached is maintained.
Up
Down

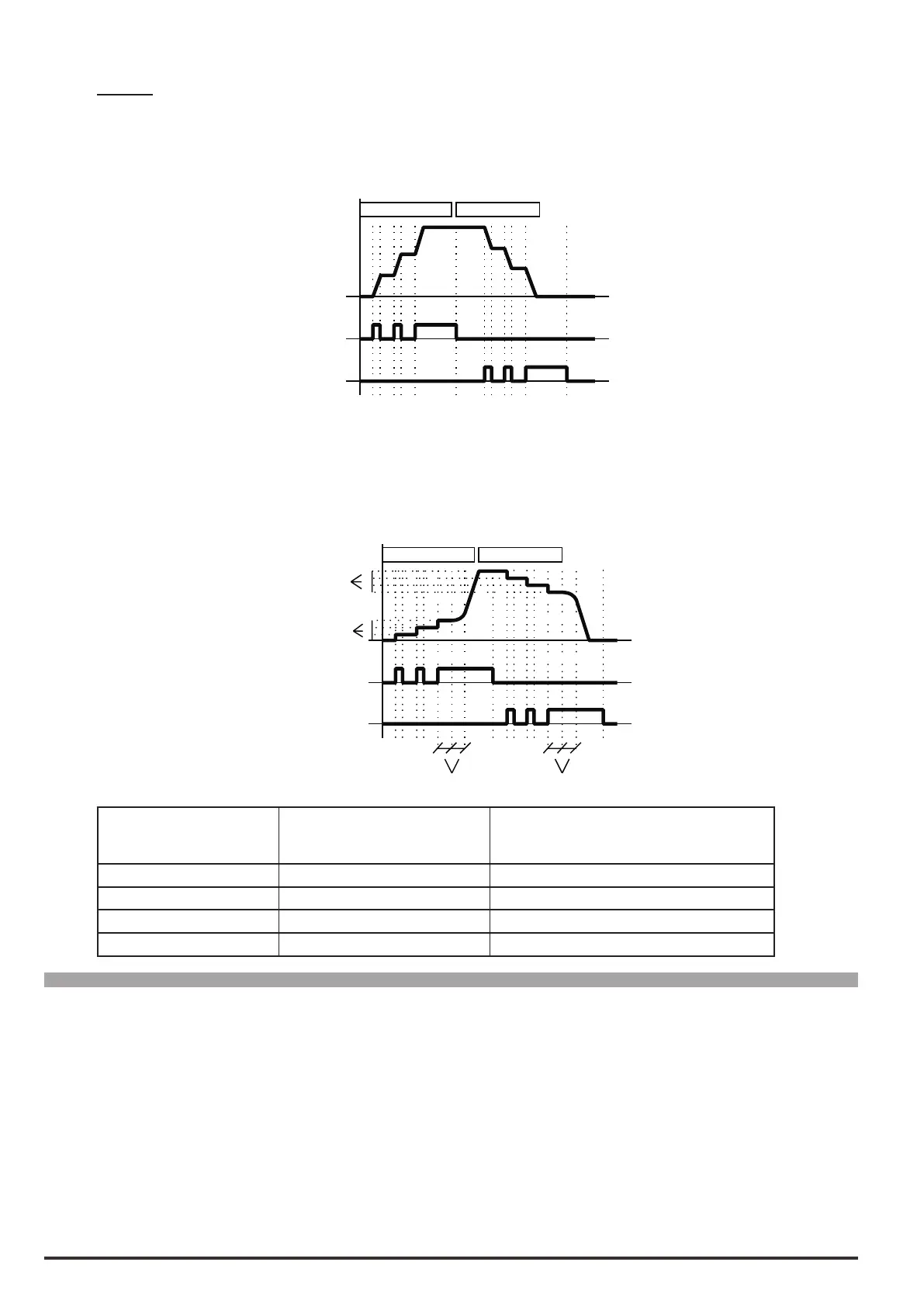

Monitor uscita Mpot Mod.:Rampa
In Fine mode, each time the Up or Down commands are enabled, the output of the Motor potentiometer function
increases or decreases by 1 rpm.
If the command persists for less than 1 second, no other changes are made on the output.
If the command persists for more than 1 second, the output increases or decreases with the set ramp. The variation
with the set ramp is performed gradually (1 second). When the Up or Down command is removed the last value that
was reached is maintained.
Up
Down
Monitor uscita Mpot
1s 1s
1rpm
1rpm
Mod.:Precis
Mpotmode Rampbehaviour
Behaviour of the Motor potentiometer function with
the Stop or FastStop command present with the
Controlmode=Ramp parameter.
0 Ramp Last val
1 Ramp Follow
2 Fine Last val
3 Fine Follow
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
8.13 894 Mpotoutputmon rpm INT16 16/32 0 0 0 ER FVS
The value of the output of the motor potentiometer function is displayed.
Two examples of application of the motor potentiometer function are shown below.
Manualspeedcontrolwithcommandsentfromcontroldesk.
