ADV100 • Functions description and parameters list 49

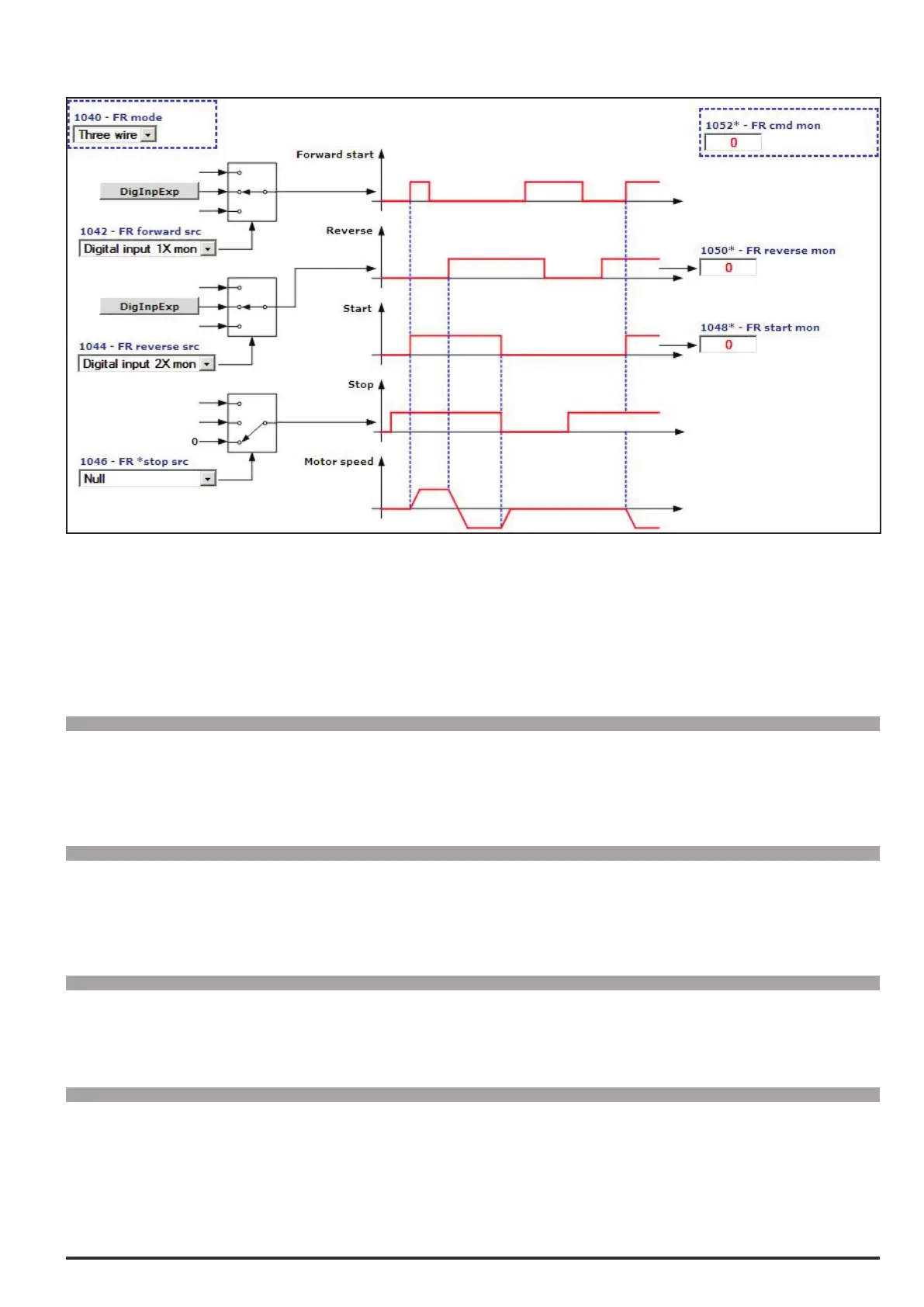

For 2-Threewire control the FR*stop command must be present on a digital input programmed via the FR*stop

src parameter (not present in the default condition). When set to Threewire control, the motor starts upon receiving

an impulse of not less than 50 msec on the FRForward terminal. Once the motor has started the command is no

longer necessary on the FRForward terminal. To reverse the direction of rotation enable the FR Reverse command:

the motor will be brought to the zero speed with the set ramp and will restart in the opposite direction of rotation. The

motor rotates in the Reverse direction for as long as the FR Reverse signal is enabled. If the FRReverse signal is

disabled the motor rotates in the Forward direction. To stop the motor open the FR *stop contact.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

11.17 1042 FRforwardsrc LINK 16 1210 0 16384 ERW FVS

Selection of the origin (source) for the FR forwardstart signal. With this command the motor starts to rotate (with the

Enable command enabled). The terminal to be associated with this function can be selected from the “L_DIGSEL2”

selection list.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

11.18 1044 FRreversesrc LINK 16 1212 0 16384 ERW FVS

Selection of the origin (source) for the FR reverse signal. With this command the motor reverses the direction of rota-

tion (with the Enable command enabled). The terminal to be associated with this function can be selected from the

“L_DIGSEL2” selection list.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

11.19 1046 FR*stopsrc LINK 16 6000 0 16384 ERW FVS

Selection of the origin (source) for the FR stop signal. The terminal to be associated with this function can be se-

lected from the “L_DIGSEL2” selection list.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

11.20 1048 FRstartmon BIT 16 0 0 1 ER FVS

The status of the Start output of the ForwardReverseControl(FRC) block is displayed.

0 Stop

1 Start
