Geoscan 201 - Parachute Installation Guide

Parachute Installing
1. Rotate UAV for the parachute compartment was on top.
2. Pick up the carabiner and straight rigging lines.
3. Put the short static line end in a carabiner as shown on the picture.

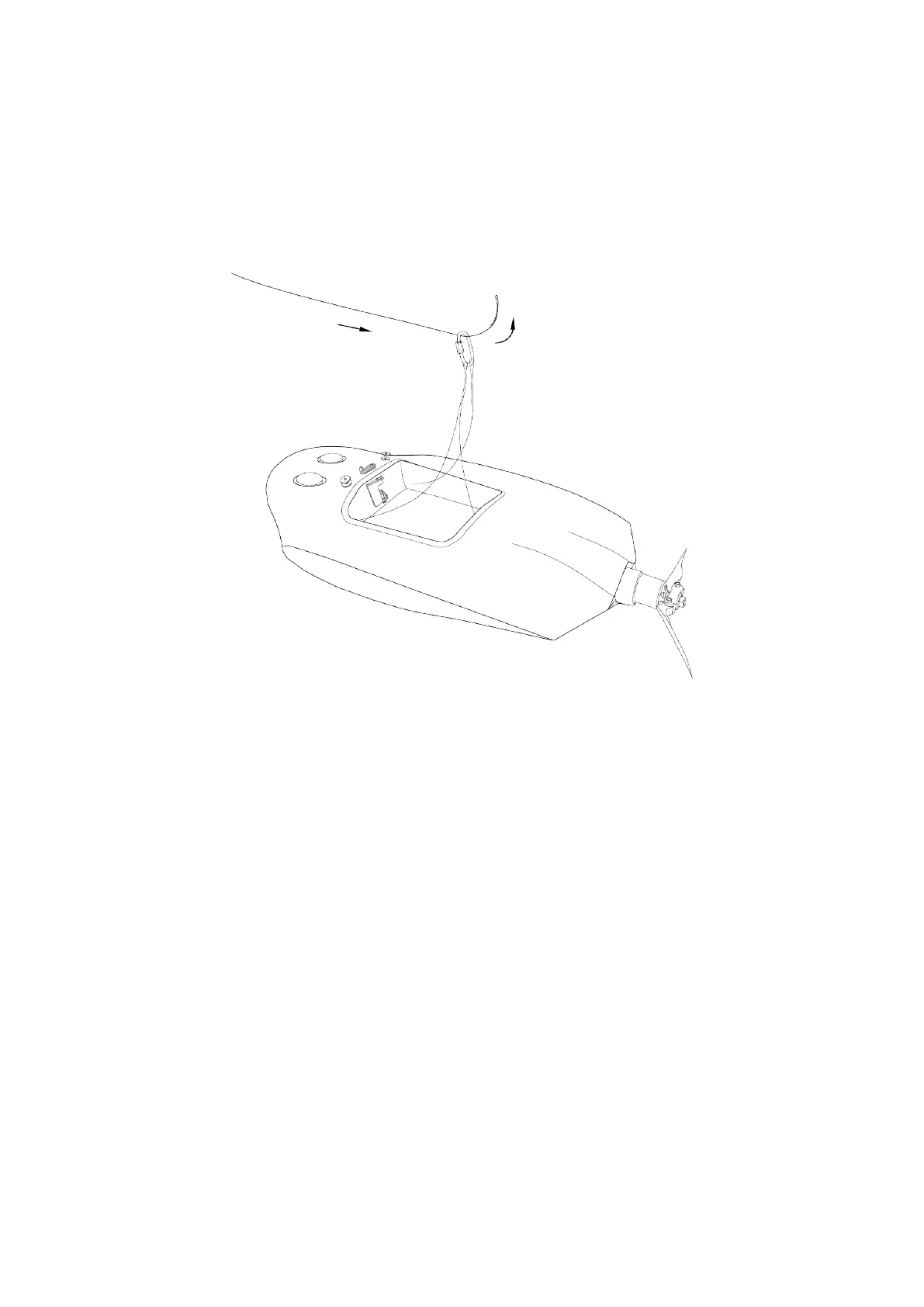

Short static line end in carabiner
4. Put short static line end in unhook system ring as shown on the picture.
