Arctic Launcher Preparing to Start

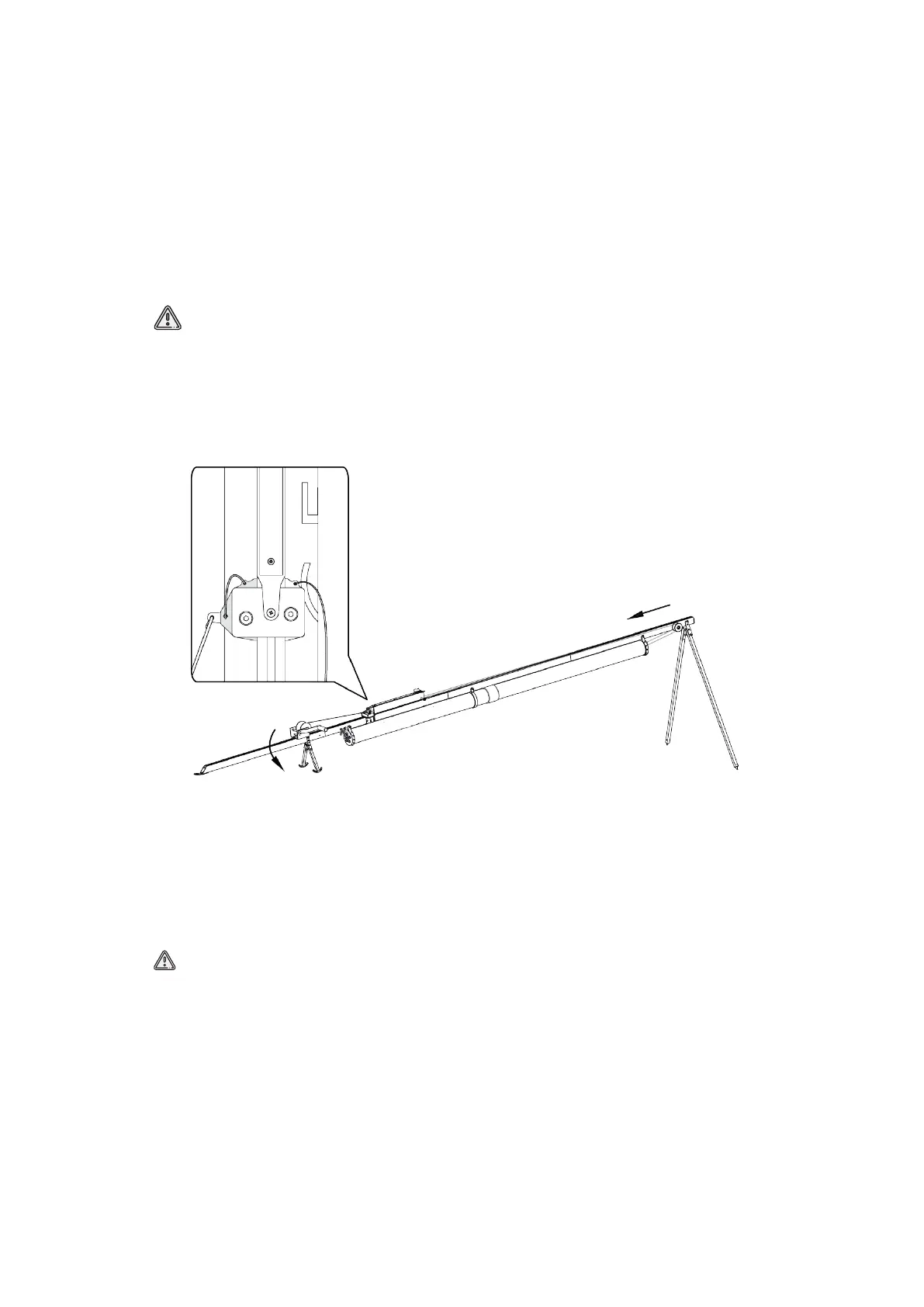

1. Detach safe system’s side carbineers.
2. Tense the reel cable by handle rotating up to 2-clicks of carriage locking mecha-
nism (near «Stop» mark).
It is important to stop reel cable tension immediately after locking.
More tension can block launch mechanism.
3. Insert safety pin in launch mechanism. Attach and unfold launch cord.
Safety pin inserting
4. Disconnect the carabiner from rear carriage shaft.
The UAV can be placed on the launcher’s carriage.
When you install UAV make sure that propeller blades are folded.
UAV launch is impossible without Geoscan Planner ight mission and successful full
pre-launch check. Please see Launch section for more information.
