14. Connect the other end of a rubber band to the winding line with a carabiner. The
winding line must pass through the roller. The carbine must be clutched.
15. Attach the next rubber band in a same way.
16. Install the winch reel handle.

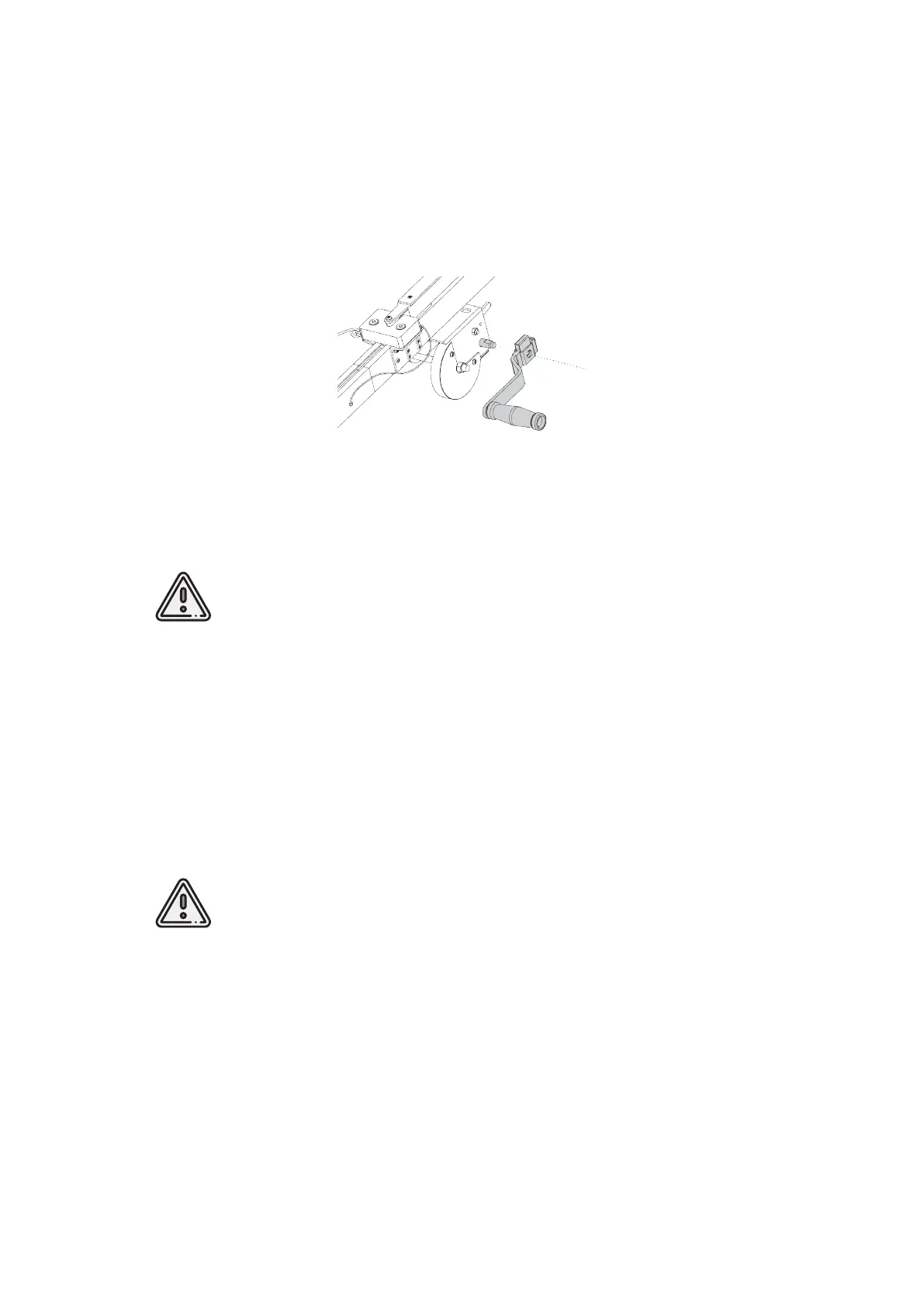

Reel handle installing
Preparation to UAV Launch
Pull the rubber cords only after the successful launch preparation imme-
diately before the launch. This will increase their shelf life and ensure
safety on the launch area.
Tense the rubber cords by rotating the winch reel handle. In case of contact with the
cords between the roller and the launcher’s parts or break from the roller, it is neces-
sary to stop the tension of the cords. Displaced cable should be placed on the roller.
Continue to pull the rubber cords only after that.
On the launcher’s middle part engraved “STOP” marker. You must stop the cords
stretching, when carabiners will be opposite to it.
Now the UAV can be placed on the launcher.
Make sure that the propeller is folded.
See Launch section for details about full launch preparing.
