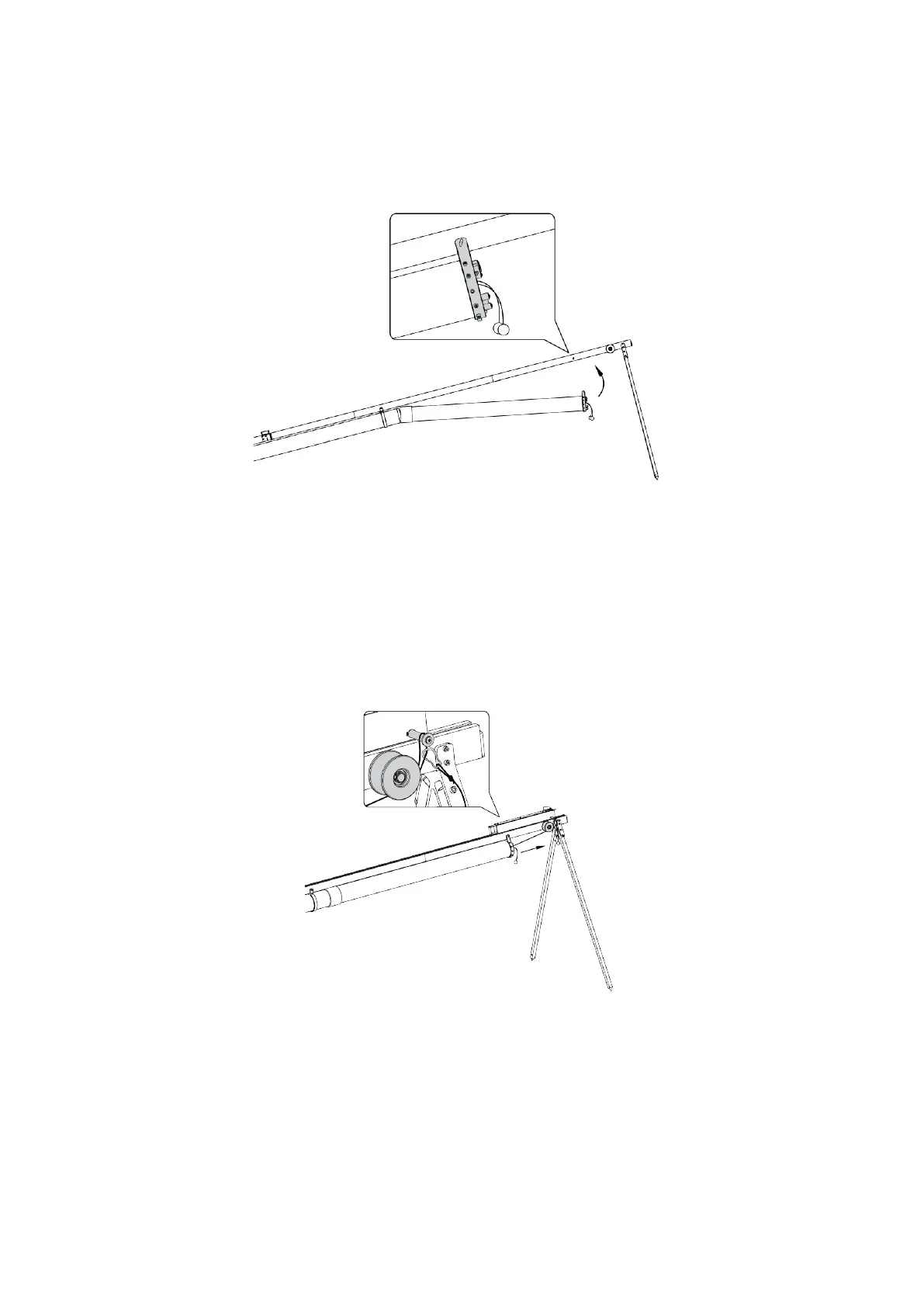

17. Lift the front end of front tube up and lock it by pin.
Front tube locking
18. Place the carriage onto the guide of the launcher, so that it could slide along
launcher rails.
19. Attach springs’ tube’s rope to carriage and safe system’s carabiner as shown on
the picture.
Springs’ tube’s rope attaching
41
