Magnetic Compass Calibration
You need portable compass to calibrate camera’s inside magnetic compass system.
The calibration should be performed away from metal objects and buildings.
1. Select DLS Сonguration in Settings tab.
2. Press Calibrate DLS Mag button to start magnetic compass calibration.
3. Follow steps on the screen.
Keep UAV horizontal for each calibration step.
Pay attention to black point in calibration window.
It is «ground level».

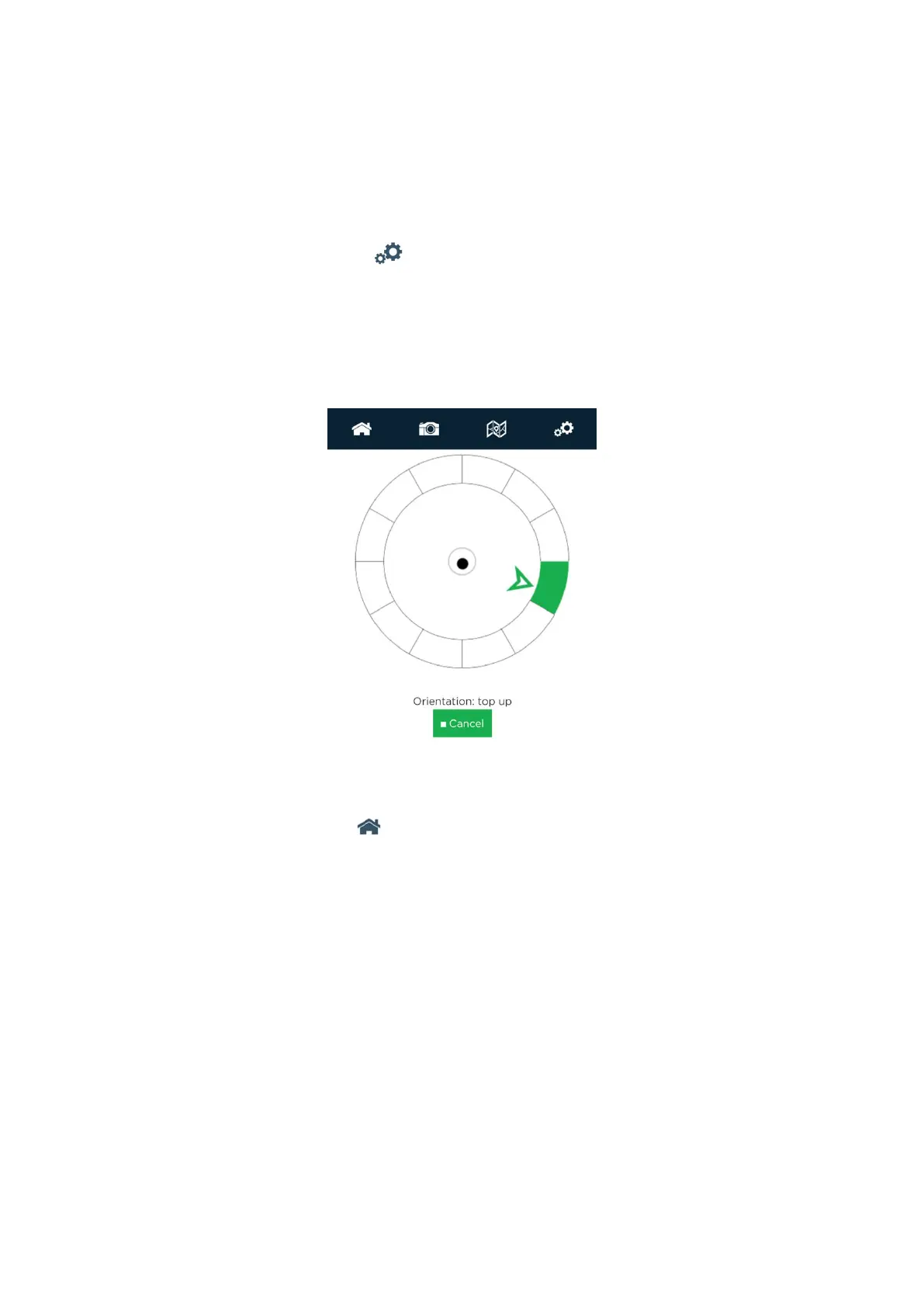

Calibration window
Check magnetic compass value after calibration nish.
To do this, go to home page and check Heading value.
The difference between portable compass heading and camera compass heading
should be no more than +/- 5°.
