72
[Configure]
Set Color: Changes the color of the panel. Three kinds of colors are available: Red,
Green and Blue.
Transparent Degree: Adjusts the transparency level of the panel. Ten levels range
from 10% (fully transparent) to 100% (fully opaque).
6.1.8 Camera Name Display
To display the camera name on the image, click the Options button (No. 8, Figure 6-2), and
select Show Camera Name.

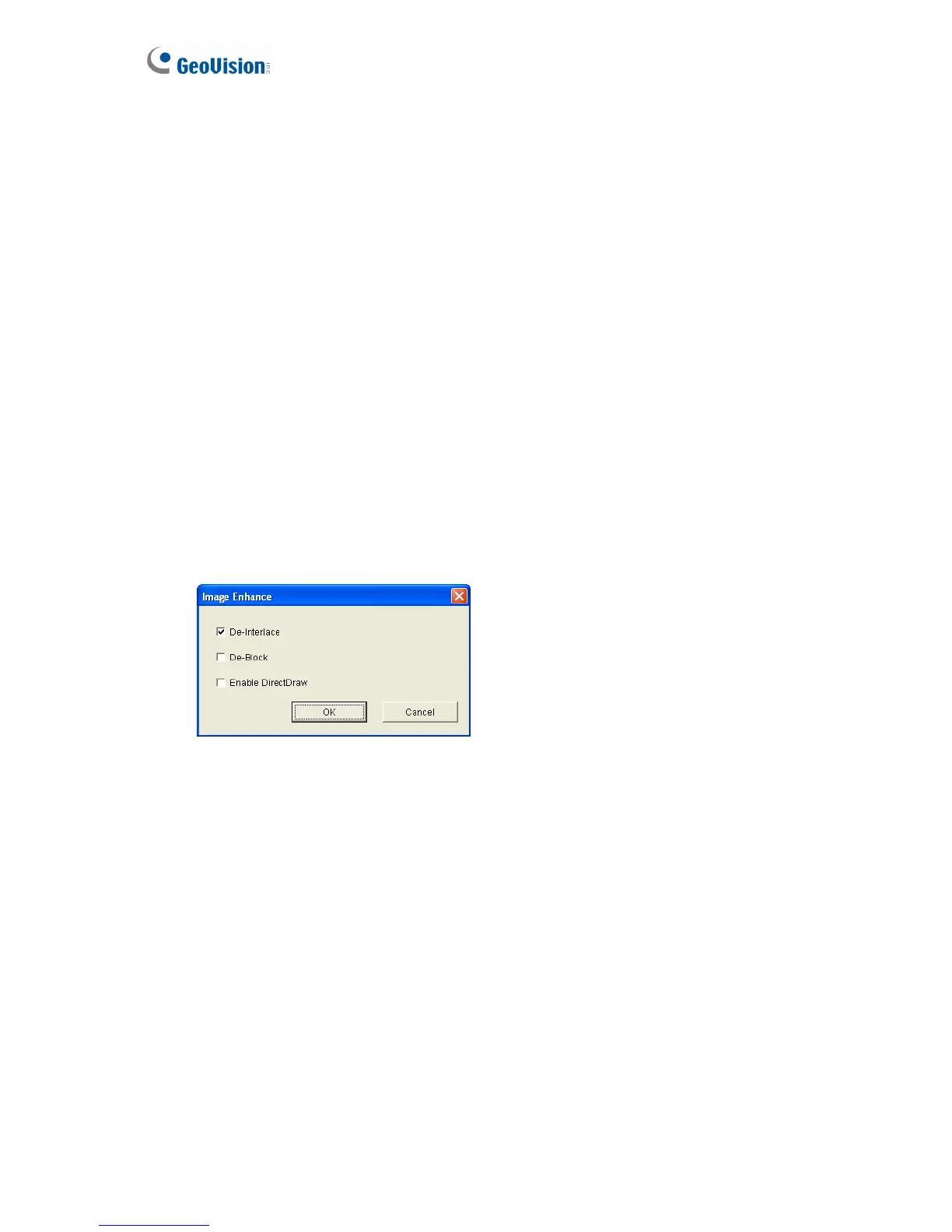

6.1.9 Image Enhancement
To enhance the image quality of live video, click the Options button (No. 8, Figure 6-2), and
select Image Enhance. This dialog box appears.
Figure 6-8
De-Interlace: Coverts the interlaced video into non-interlaced video.
De-Block: Removes the block-like artifacts from low-quality and highly compressed
video.
Enable DirectDraw: Activates the DirectDraw function.
