GERBERplotter MP Series User Manual
English
Wheels / Support bases
Step 4 of 17
1

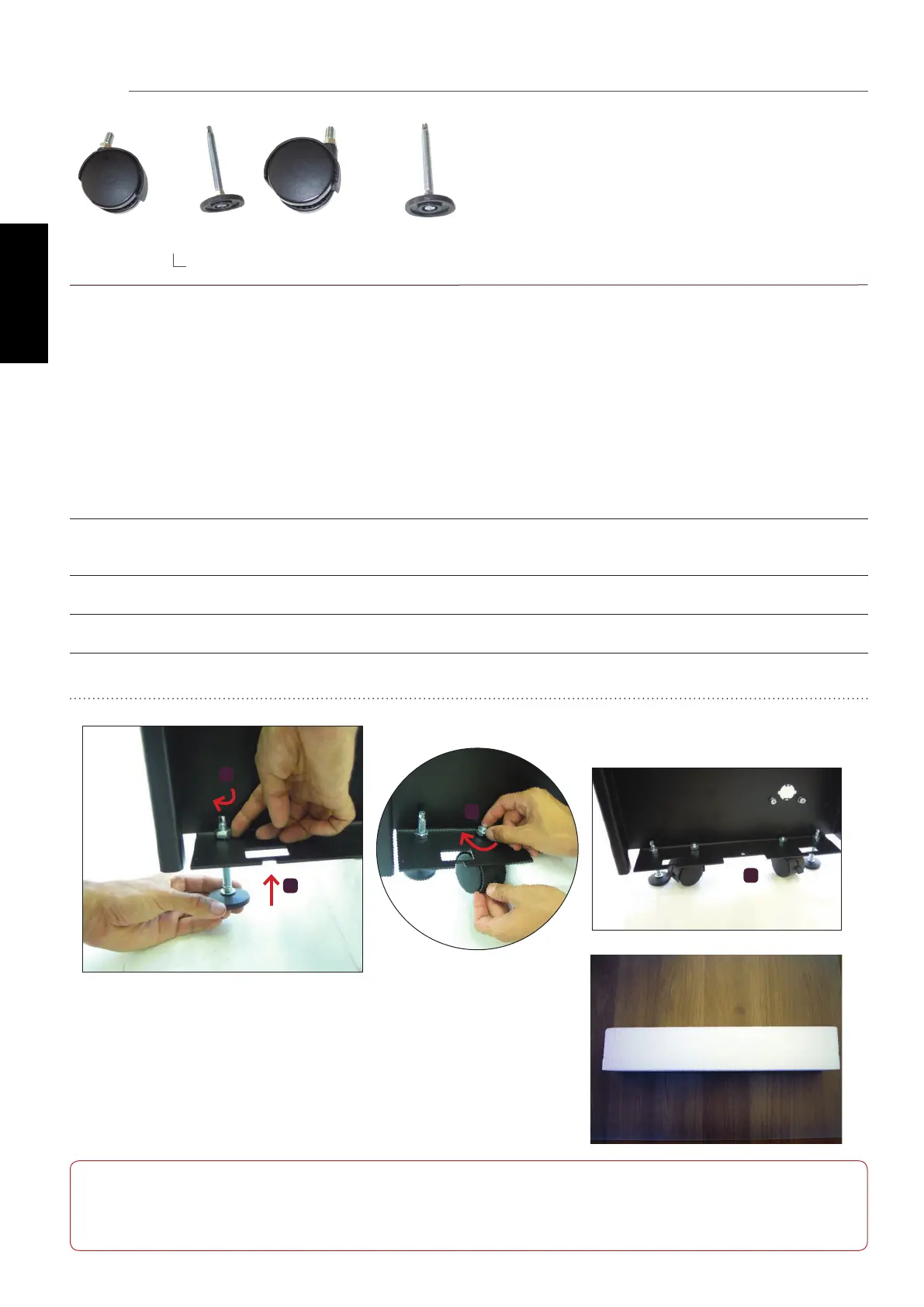

Raise the left-side panel (CN229) about 10 cm (3.93 in) and rest it on Styrofoam, or something similar, so it stays
at the required height.
2
Fit two wheels, support bases, or both to the bottom of the raised side panel using the nuts and washers found in
bag 4 (CN111).
3
Return the side panel to the standing position, resting on the newly tted bases.
4
Repeat steps 1 to 3 for the right-side panel.
The contents of box CN309 let you install four wheels and/or four xed support bases to the side panels.
A 13mm and a 17mm wrench are needed to t the selected bases.
This is the only step in the entire procedure where some items might not be used.
It is a good idea to store these extra pieces somewhere safely in case you change your mind.
Wheels let you move the plotter easily, while support bases are used to adjust its height. Depending on
the oor, you might use a bubble level to help adjust each support base to achieve a desired, level operat-
ing height.
1
1
2
3
CN309 (box 2)
CN111 (Bag 4)
4
