GERBERplotter MP Series User Manual
English

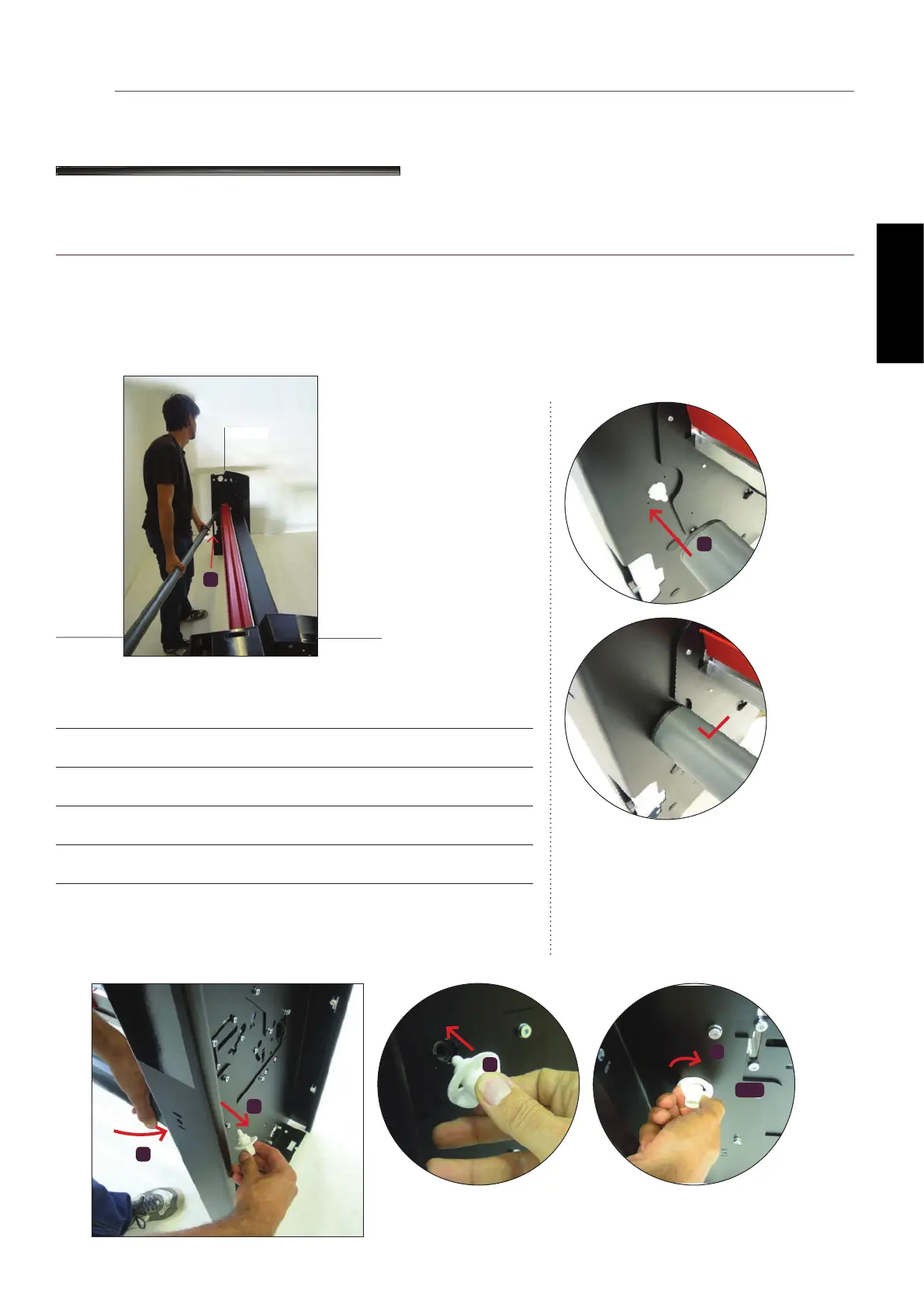

Rear bar
Step 5 of 17
1
Install one end of the bar CN221 into the plastic shaft on the right-
side panel (CN229).
2
Remove the plastic shaft from the panel.
3
Place the end of CN221 in the left-side panel (CN227).
4
Fit the plastic shaft into the hole of the rear bar.
5
Turn the plastic shaft to until it clicks into working position.
Fit the rear bar (CN221) between both side panels and to the rear of the printer bridge.
The rear bar (CN221) is directs the paper to the top of the plotter.
CN221
CN227
CN229
1
1
4
5
CLICK
CN221 + CN053 (Bag 3)
2
3
5
