GERBERplotter MP Series User Manual
English
Clamps / Cables
Step 6 of 17

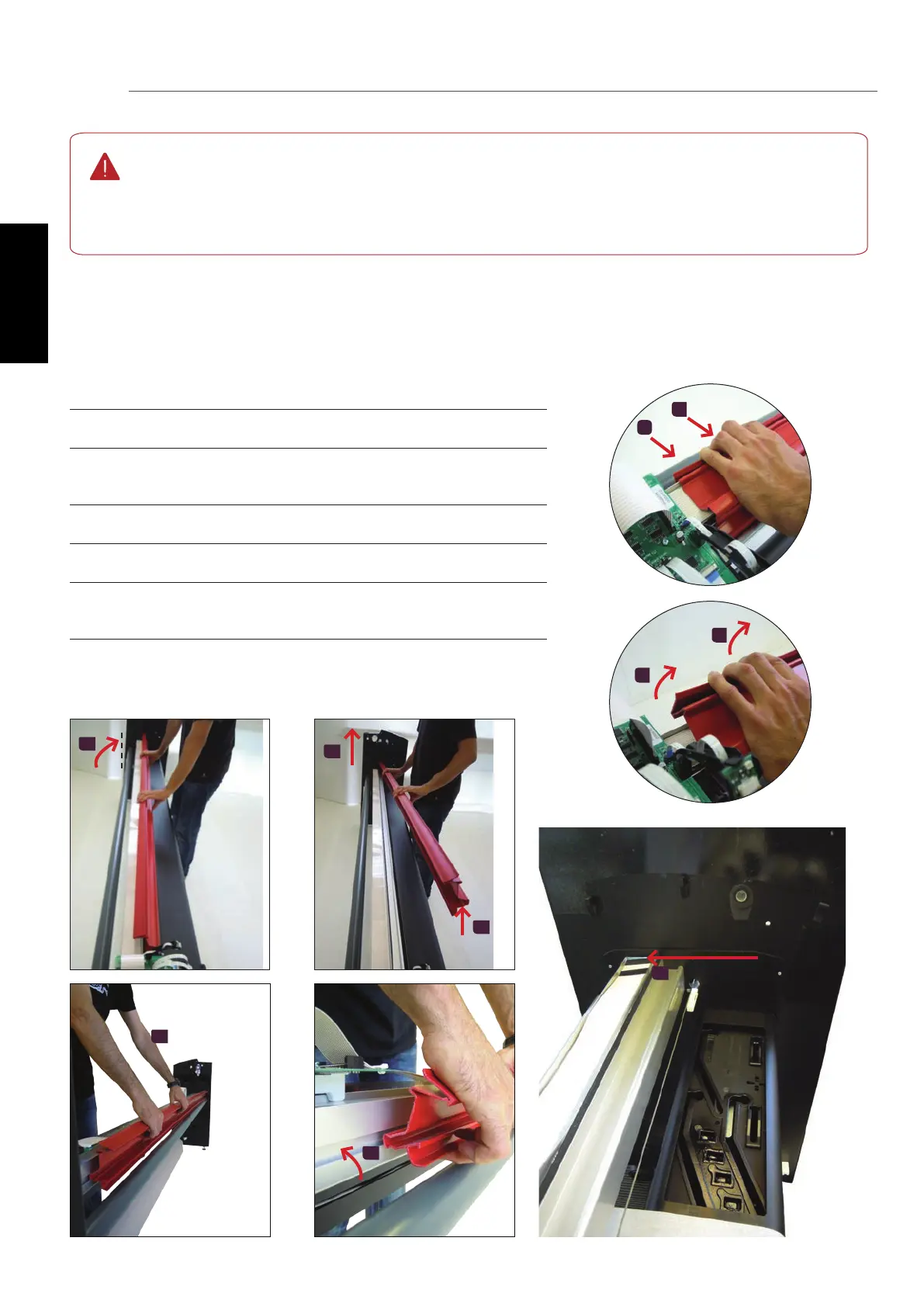

After the printer bridge and both side panels have been assembled, remove the encoder strip protector and pass the
ribbon cables through the side panels. Two print-head plotters use two ribbon cables, and four print-head plotters use
three ribbon cables.
Warning
Avoid damaging the vertical strip encoder.
1
Unpin the rear protector.
2
Rotate the protector 90 degrees.
3
Without damaging the encoder strip, separate the protector from
the bridge.
4
Place the protector in the rear of the bridge.
5
Anchor the encoder protector.
6
Pass the longitudinal cable through the slot in the right-side panel
(CN227).
2
2
2
3
3
1
1
4
5
6
6
