Gerber Technology GERBERplotter MP Series User Manual

22
GERBERplotter MP Series User Manual
English

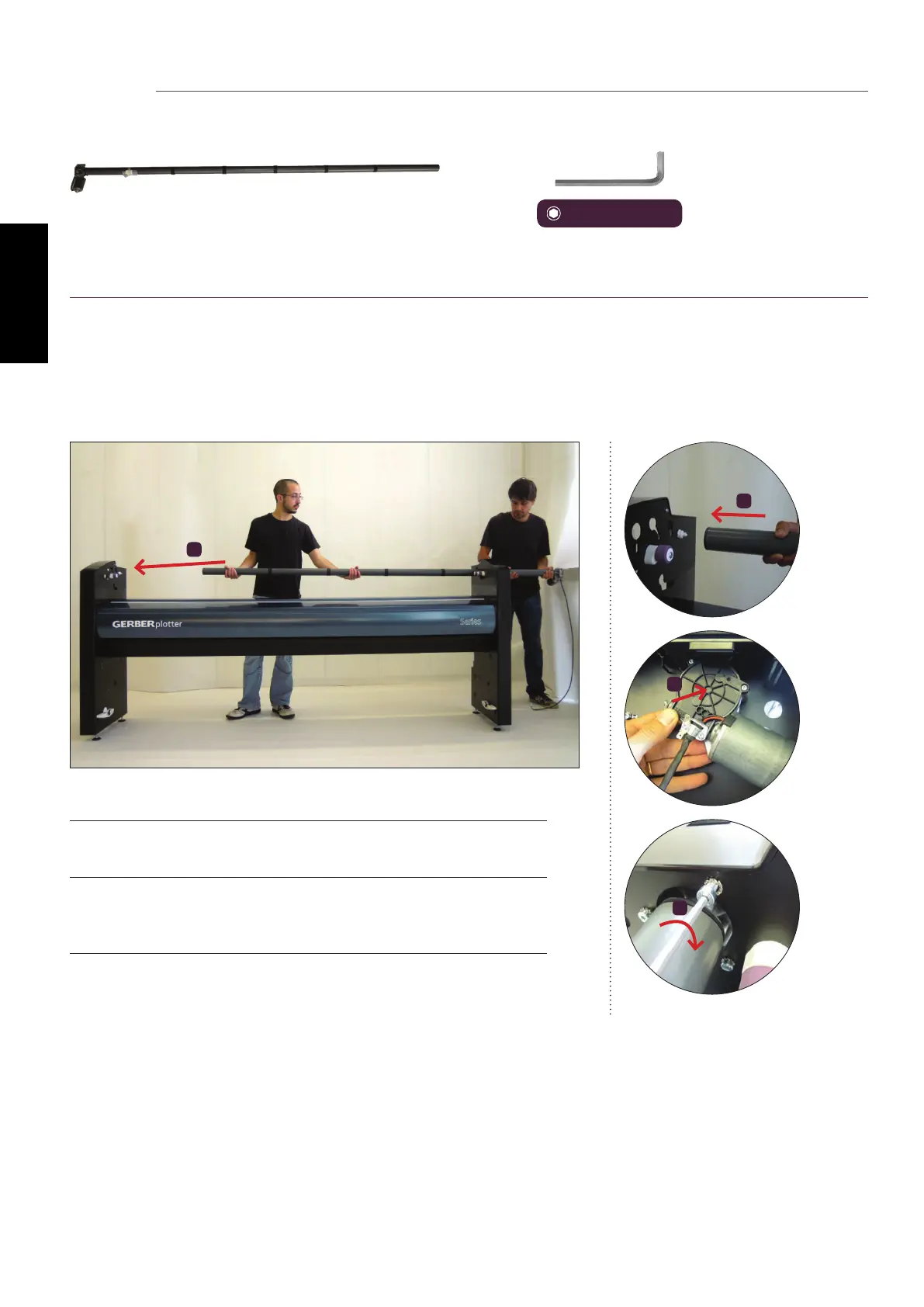

Traction bar
Step 10 of 17
1
Slide CN207 through the right-side panel from the outside.
2
Slide CN207 towards the shaft located next to the inverter on the
left-side panel.
3
No.4 Allen key + CN049 (Bag 7): Position the motor as indicated,
and x it to the right-side panel from the inside using the three
bolts and washers supplied.
The traction bar redirects the paper so it can roll. Install the right side of the bar from the front of the plotter Three
bolts and locking washers are used to x the bar and motor in place on the right-side panel. Then, move the bar to
the left and install it to the bolt beside the inverter.
No.4 Allen key
1
3b
2
3a
CN207 + CN049 (Bag 7)
10
