Getinge 86 SERIES Technical Manual

Page 73 of 174
<Doc_TEC><Doc_502606900><Rel_B><Lang_GB>









V1544
X29
X30
X28

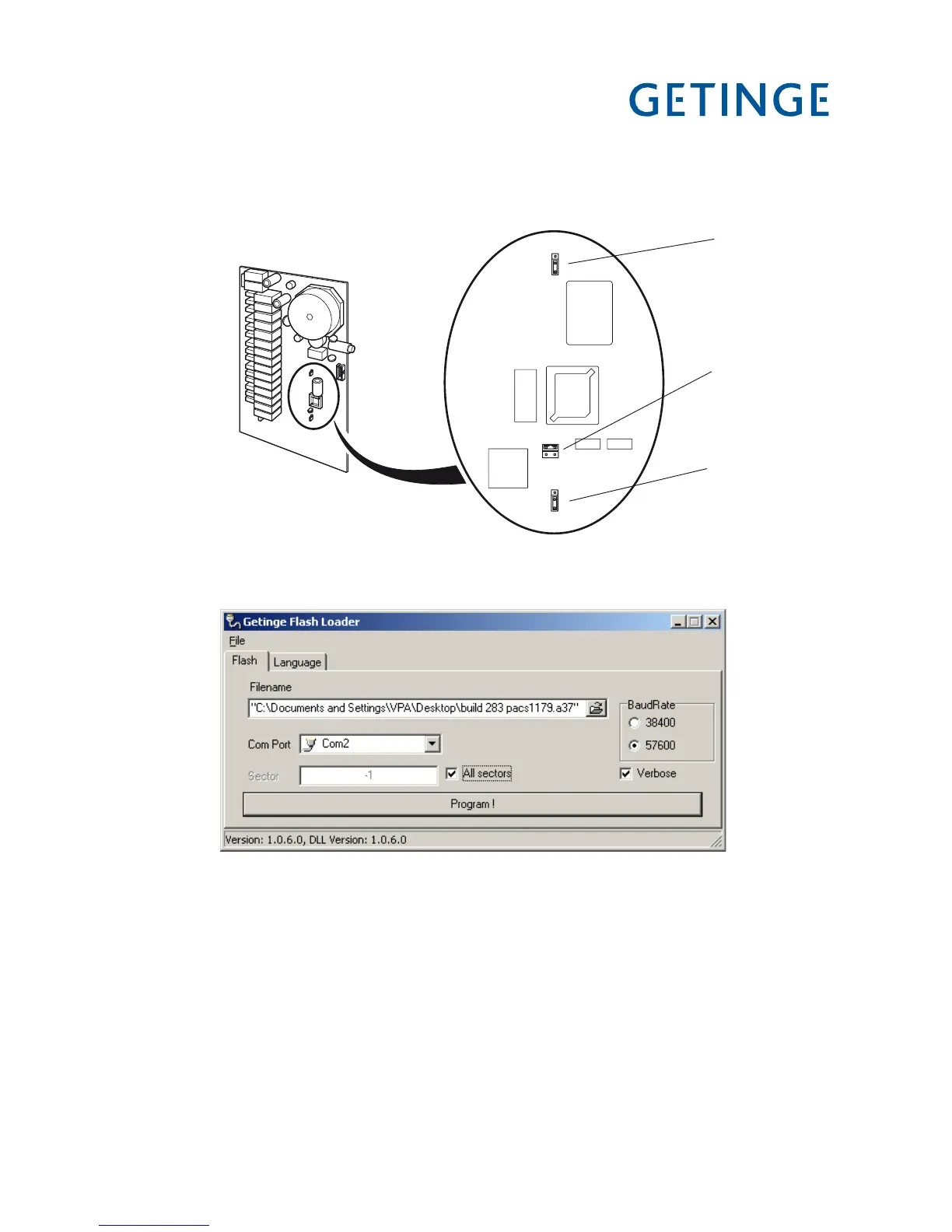

7. Change the jumper (X29) on the board for the PACS 300 control system from
Normal to Test. Check that jumper X28 is in the Flash position and that jumper X30
is in the ON position.
8. Set up as shown.
V1578
File name Choose the right program file (*.a37).
Com Port The port to which you connected the data cable to your PC.
Baud Rate Choose 57600
All Sectors and Verbose must be checked (=selected).
