4 |G5 – Owner’s Manual
3.1.1 CYMBALS
3.1.1.1 GEWA CYMBALS

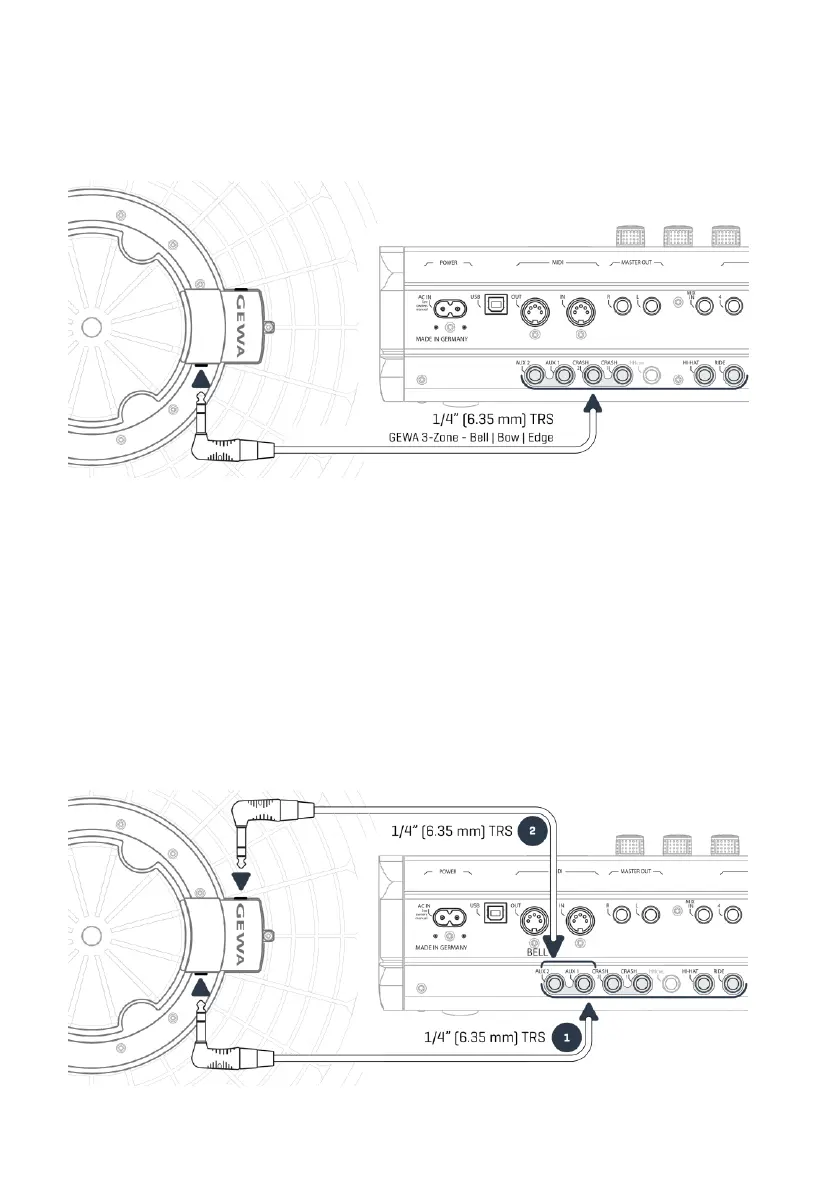

GEWA cymbals are equipped with two stereo jacks (6.35 mm - 1/4" TRS standard). In operation with
GEWA modules, only the jack that is closer to the center hole of the cymbal is relevant.
3.1.1.2 OTHER MANUFACTURERS
Connect analog sensors from other manufacturers as shown in the diagram below. Also note the
selection at [TRIGGER SETTINGS] -> AUX1 -> [F1] -> Trigger Type (3-Way) in the module:
