GILES GBF-50 - 2.05.1 Electrical Connections Diagram; Electrical Connections Diagram; Ventilation

2.06 Ventilation
Consult a professional ventilation contractor or HVAC company to determine if an existing system is sufficient to
provide proper ventilation when operating this equipment, or to design and specify a ventilation hood system that
will be compliant with code requirements.

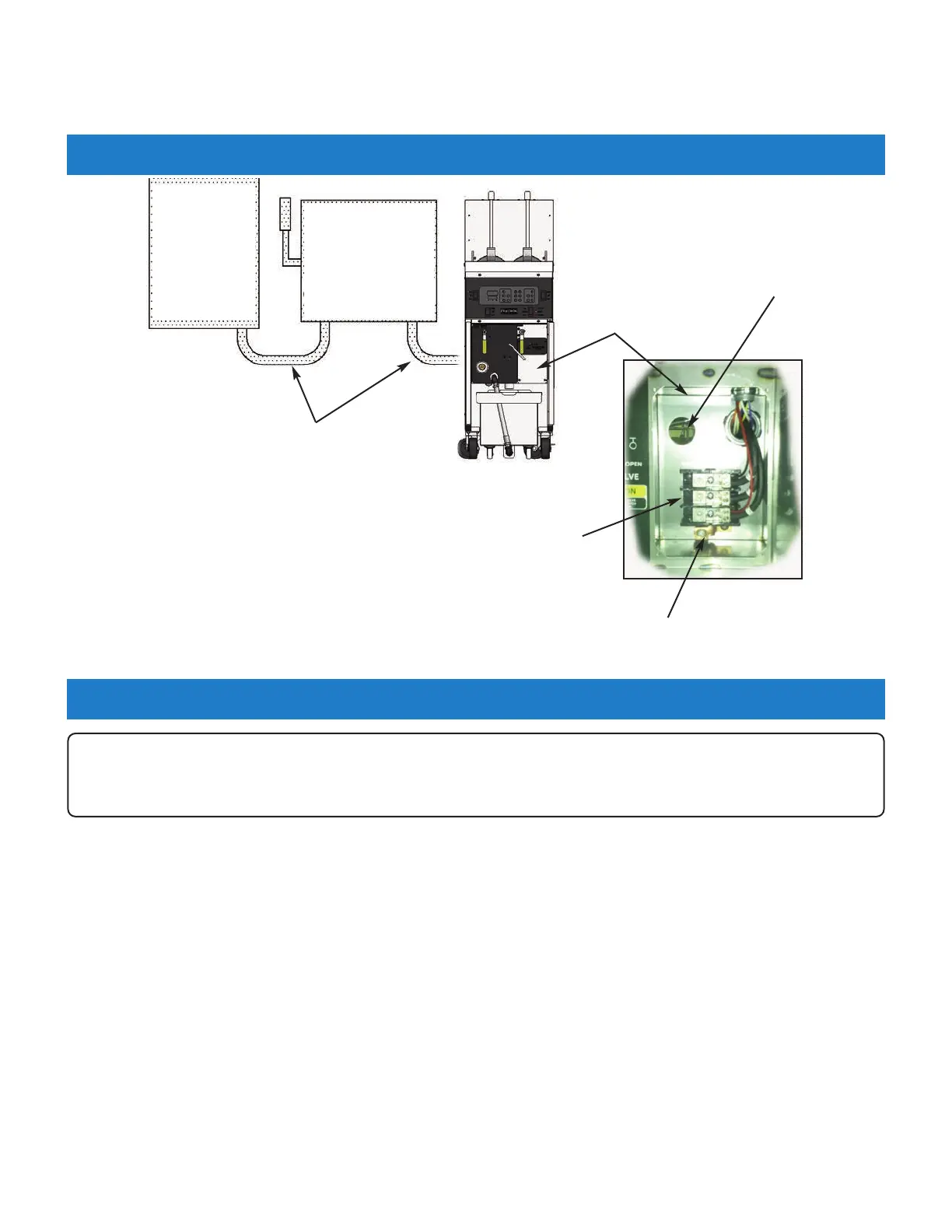

2.05.1 Electrical Connections Diagram
Flexible Conduit
Service Box
Connect flex conduit from
incoming supply power
here.
Ground Lug
Distribution Block:
connect supply power
to this side.
GBF-Series Fryers
Installation
8
Main Breaker
Box
Disconnect Switch
Box
(Recommended)
NOTE:
Guidelines and codes for ventilation system requirements differ from locale to locale. Always consult the local
Code Authorities (AHJ) to ensure proper compliance.
