GM Energy V2H Bundle Installation Manual 22

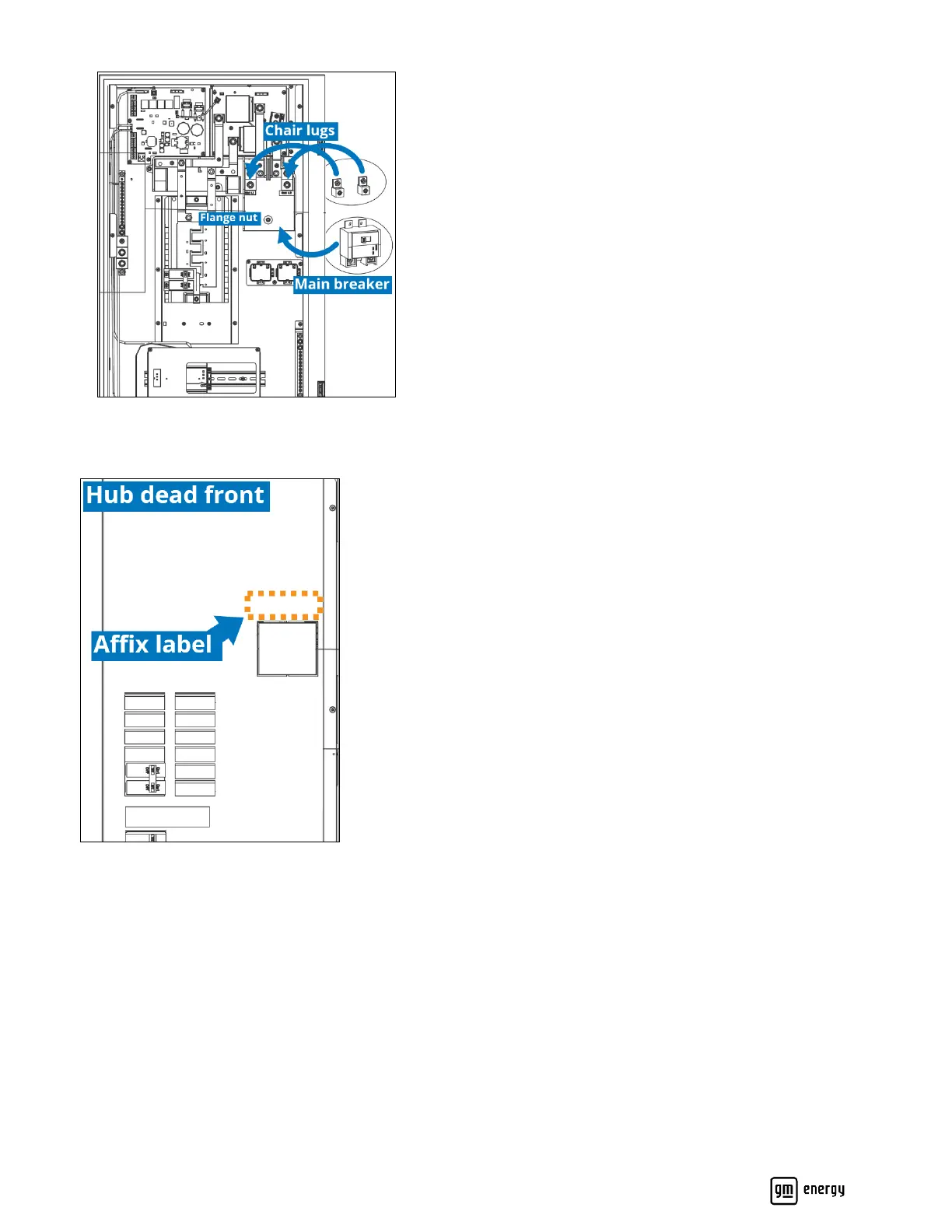

Figure 12: Location of main breaker installation
If the Hub will be used as the main service panel, affix the MAIN SERVICE DISCONNECT label on the Hub dead front
above the opening for the main breaker (Figure 13):
Figure 13: Location to apply MAIN SERVICE DISCONNECT label
