Pre-failover behavior
K2 RAID
K2 Media
Servers
K2 SAN-attached systems
Ethernet
switches
A
A
B
B
Fibre Channel
connections
Control
Media
Control
Media
Control
FTP
Media
Control
FTP
Media
ISLs

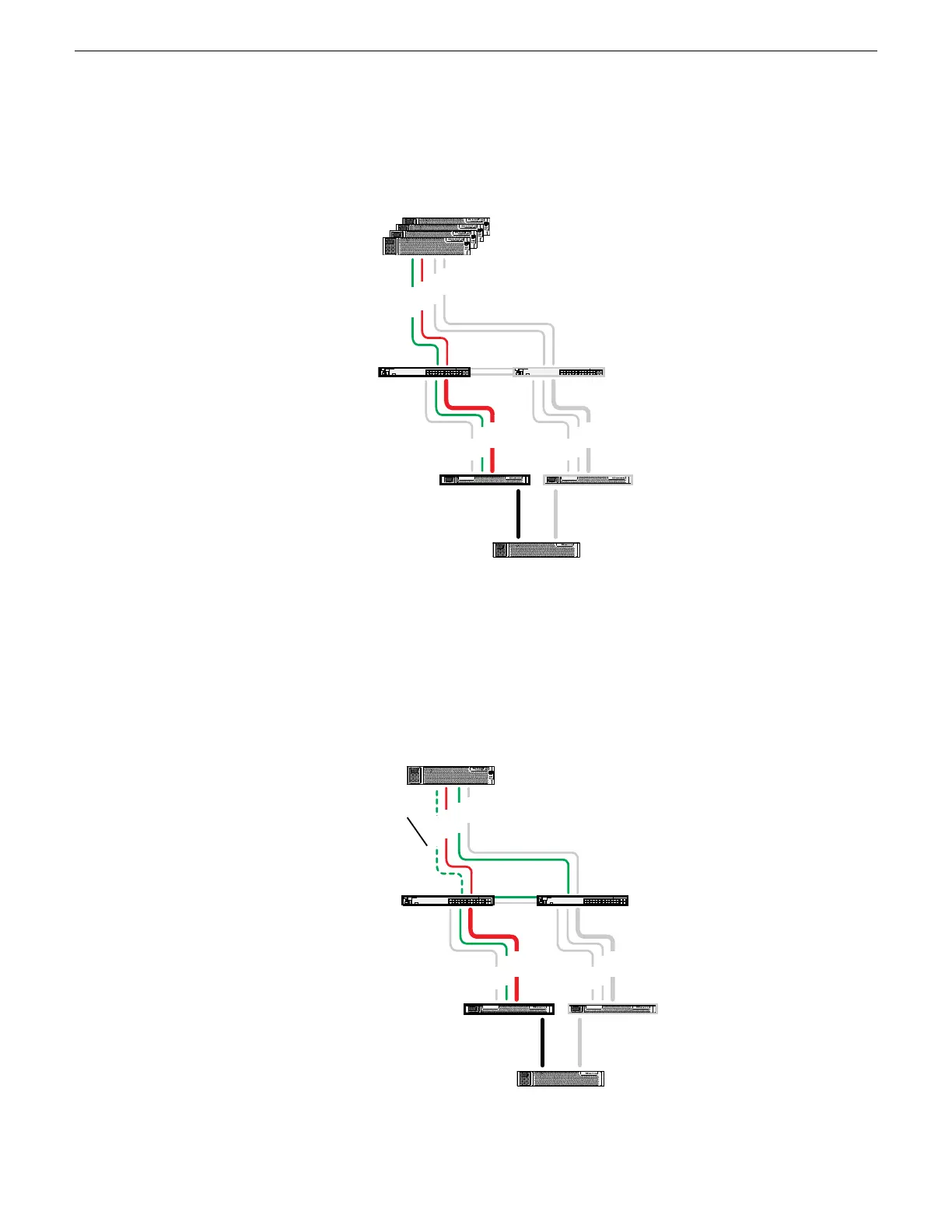

The system operates initially with both media and control traffic on GigE switch “A” and K2 Media
Server “A”. Media (iSCSI) traffic is using media network “A”. The iSCSI adapters (TOEs) on the
“A” K2 Media Server provide access to the Fibre Channel connected RAID storage. K2 Media
Server “A” is the media file system/metadata server.
Control Team failover behavior
K2 RAID
K2 Media
Servers
K2 SAN-attached system
Connection
Failure
Ethernet
switches
A
A
B
B
Fibre Channel
connections
Control
Media
Control
Media
Control
FTP
Media
Control
FTP
Media
ISLs
X
02 February 2012 K2 SAN Installation and Service Manual 251
Operating the K2 SAN
