SpecificationCharacteristic
Idle power: 49 W; Maximum power rating: 82 WPower
consumption
Operating: 32ºF to 131ºF (0ºC to 55ºC); Non-operating: -40ºF to 158ºF (-40ºC
to 70ºC)
Temperature
Operating: 15% to 95% @ 104ºF (40ºC)
15% to 95% @ 149ºF (65ºC)
Relative humidity:
(non-condensing)
Up to 10,000 ft. (3 km)Maximum altitude
K2 Media Server description
The central component of the K2 SAN is the K2 Media Server. The Dell PowerEdge R610 is qualified
as the platform for the K2 Media Server.
The following interfaces provide K2 SAN functionality:
• Two GigE ports on the motherboard. The R610 has four GigE ports, but only two are used.
• One iSCSI interface card. A port on this card is also referred to as a TOE (TCP/IP Offload
Engine).
• One Fibre Channel card.
K2 Media Server specifications
The K2 Media Server is built on a Dell PowerEdge R610 server platform. Specifications that are
unique to it purpose as a K2 Media Server are listed in the following table. For a complete list of
specifications, refer to Dell documentation.

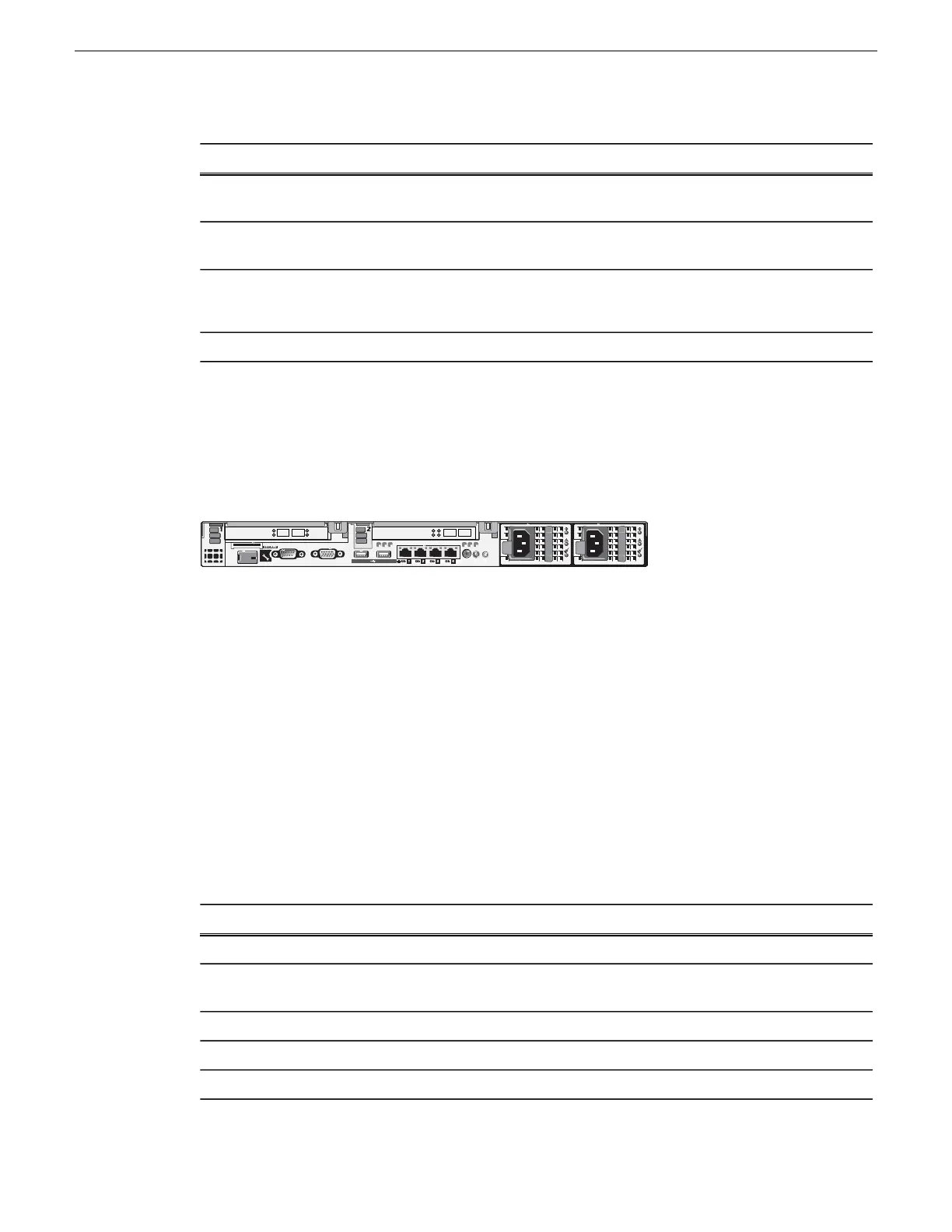

Dell R610 PowerEdge server
SpecificationCharacteristic
Microsoft
®
Windows
®
Server 2008 R2Operating System
ATTO Celerity FC-81ENSingle-Channel 8Gb/s Fibre Channel PCIe 2.0 Host
Adapter
Fibre Channel
Adapter
QLogic QLE8240 Single Port 10-Gbps iSCSI TOE to PCI Express HBAiSCSI Adapter
Two dual port embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICCommunications
1UForm Factor
260 K2 SAN Installation and Service Manual 02 February 2012
Description of K2 SAN Devices
