SERVICE AND REPAIR
Place the cover correct and test that the function on of the
switch track by pulling the turning arm from side to side.
When switching the activation arm shall move from side
to side with a distinct movement. If this is not the case,
please follow the list until correct function is obtained.
e) Control that the change arm and the turning arm are
connected correct.
f) Control that the activation plate and the activation arm
are connected correct. The activation arm must be
placed between the legs of the activation plate.
g) Make sure that the sleeve is placed right above the
motor mounting plate, if not move the sleeve and the
two locking washers to make sure the sleeve is placed
correct and re-install the cover.
h) The sleeve must obtain a slight pressure against the
motor mounting plate. If this is not the case, slightly
bend the activation arm to ensure a slight pressure and
test the function of the switch track.
Re-install the cover and test again.
Install the cover, make sure that the cables lies at the side
and with out risk of getting caught in moving parts.

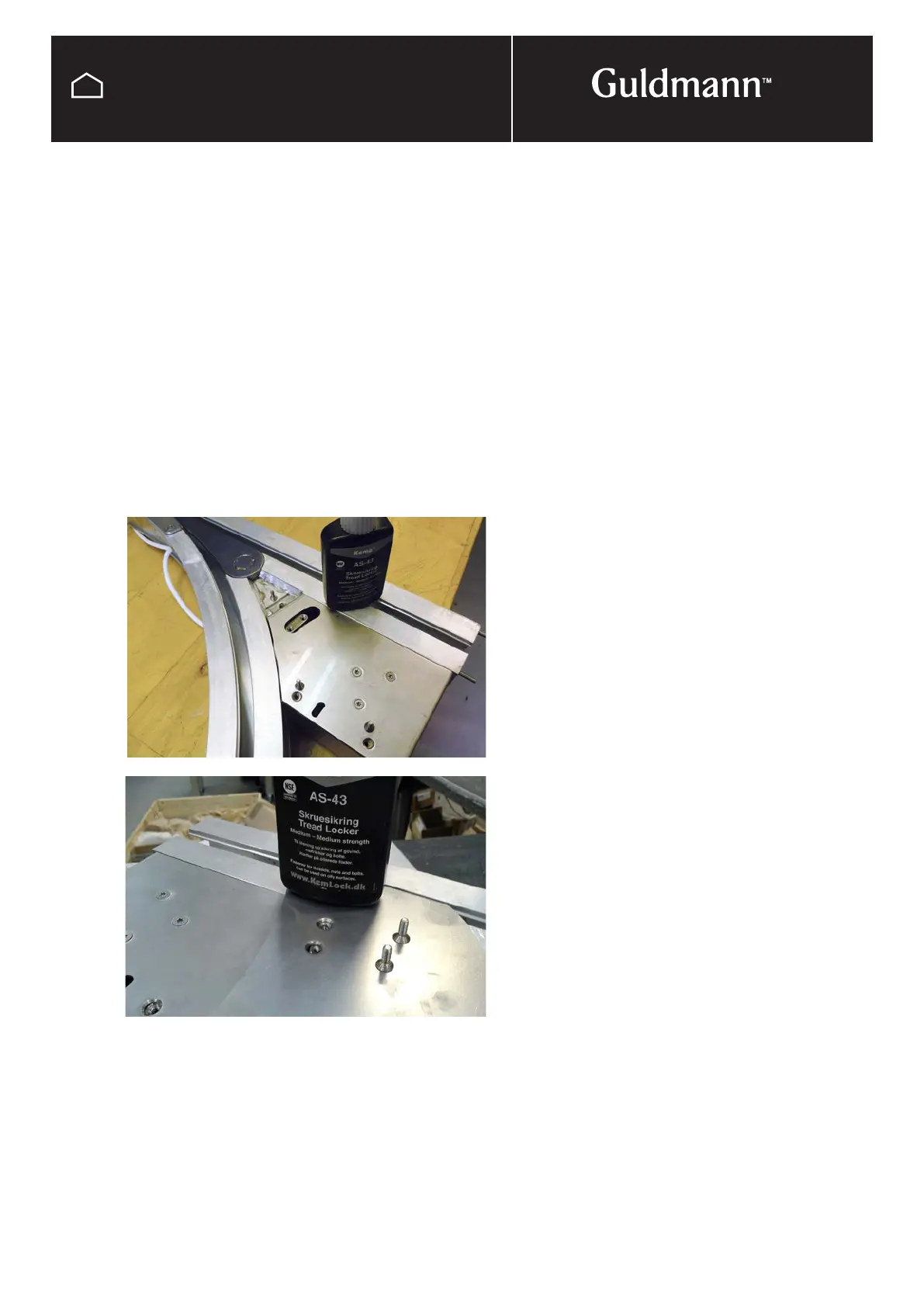

Secure the screws with Kemlock AS 43 or similar and
tighten the three screws.
Install the change plate, secure the two screws with Kem-
lock AS 43 or similar and tighten the screws.
Turn the switch track on and test the function.
Electrical switching:
When the hand control is activated the tongue must turn
from side to side
Run-trough with out electrical switching:
The switch track shall turn before the hoist touches the
tongue both when the hoist approaches the switch track
from the curve and the straight rail.
Switch track GH
