SERVICE AND REPAIR
GH3

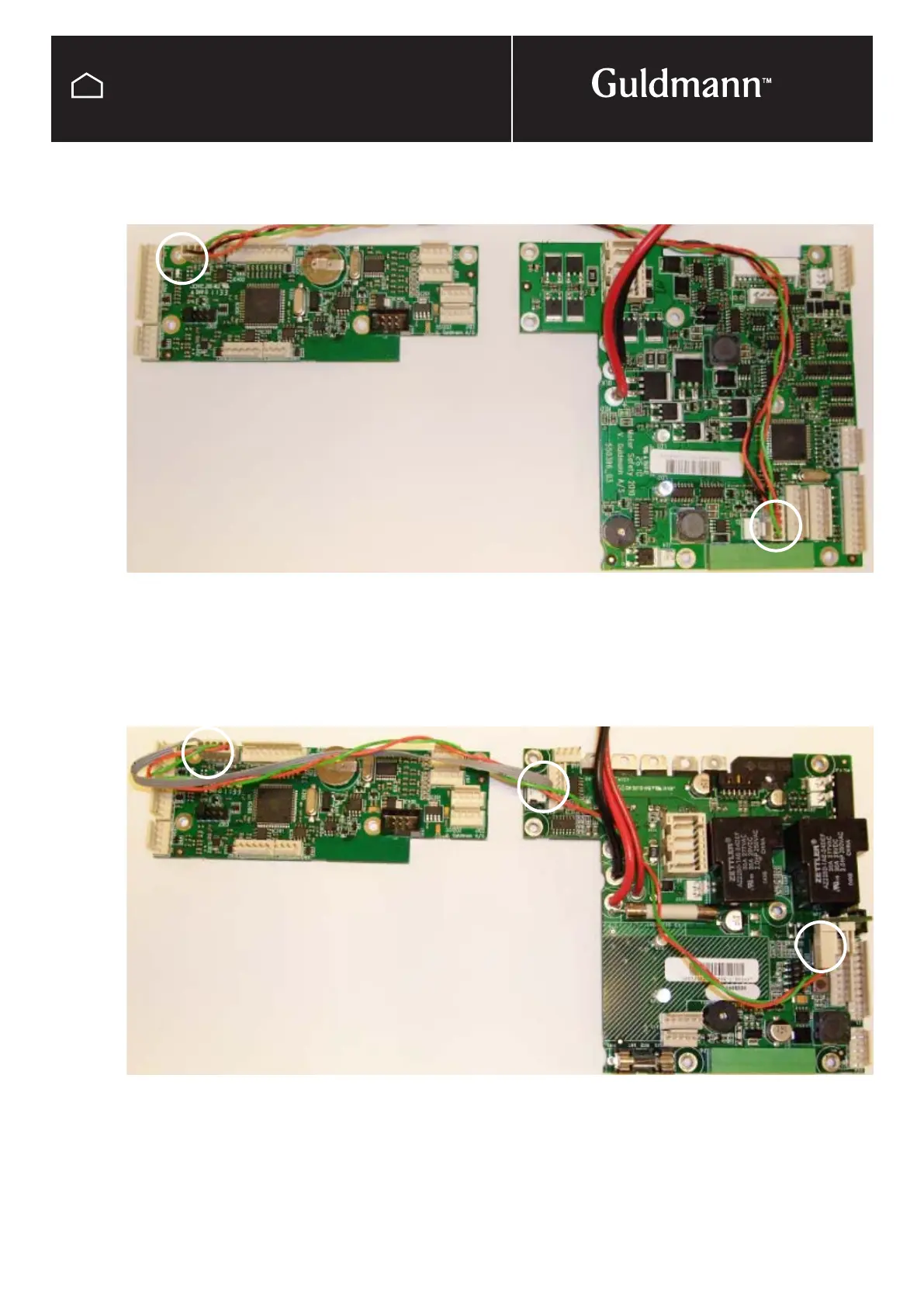

550550_00 Communication PCB, addition
Connecting a 551203 Communication pcb to 550396 MotorSafety pcb
Cable 1: Connects J105 on communication PCB to J2 on MotorSafety PCB
Connecting a 551203 Communication pcb to 550202 MotorSafety pcb
Cable 2: Connects J105 on communication PCB to J2 and RS485 communication PCB on MotorSafety PCB.
