SERVICE AND REPAIR
GH3
550550_00 Communication PCB, addition

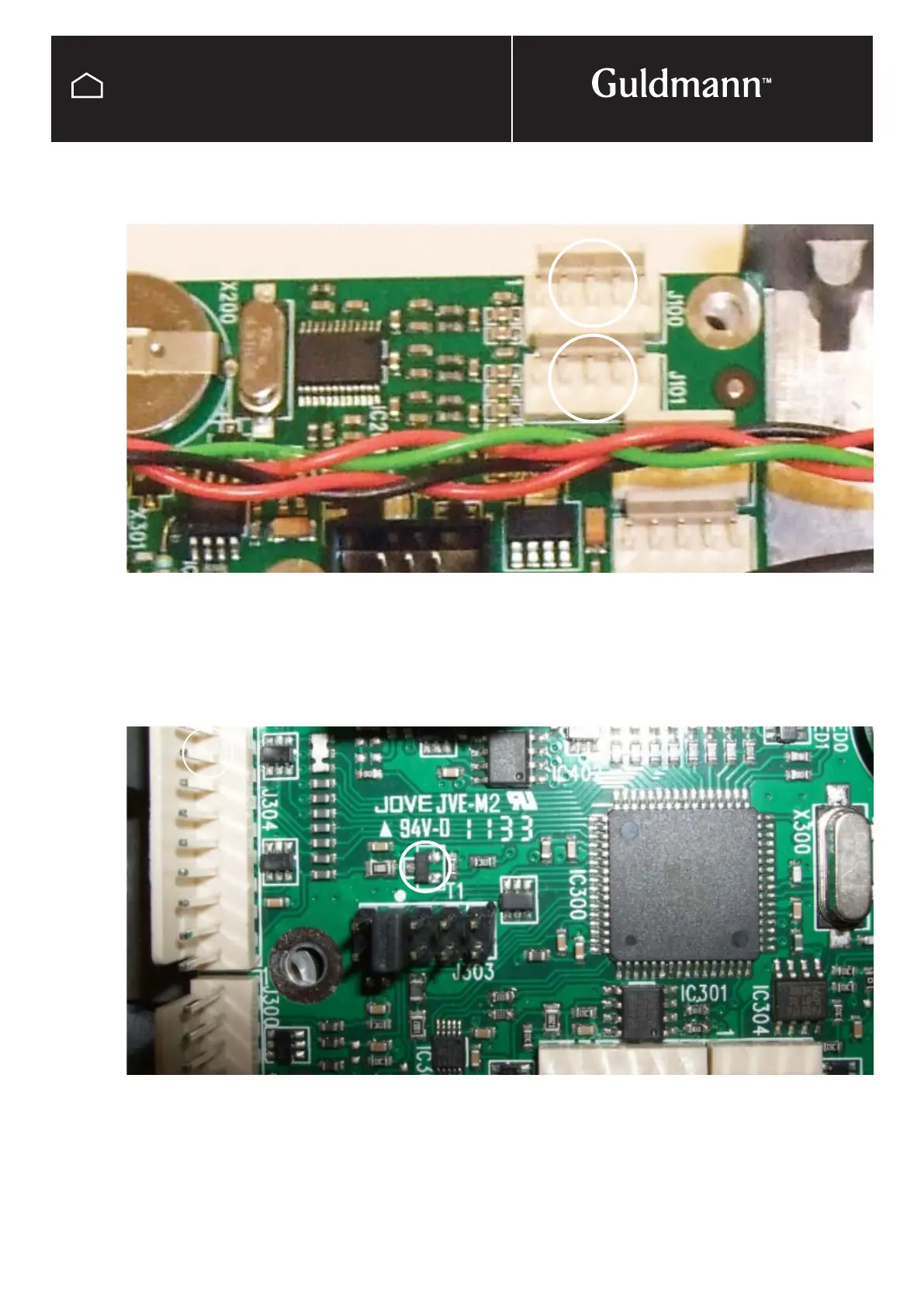

Connecting Load cells
If Load cells are present they must be connected to J100 and J101.
Jumper Setting (Only for Twin hoist follower)
When used in follower Twin Hoist a jumper must be mounted on J303 at the white dot.
