SERVICE AND REPAIR

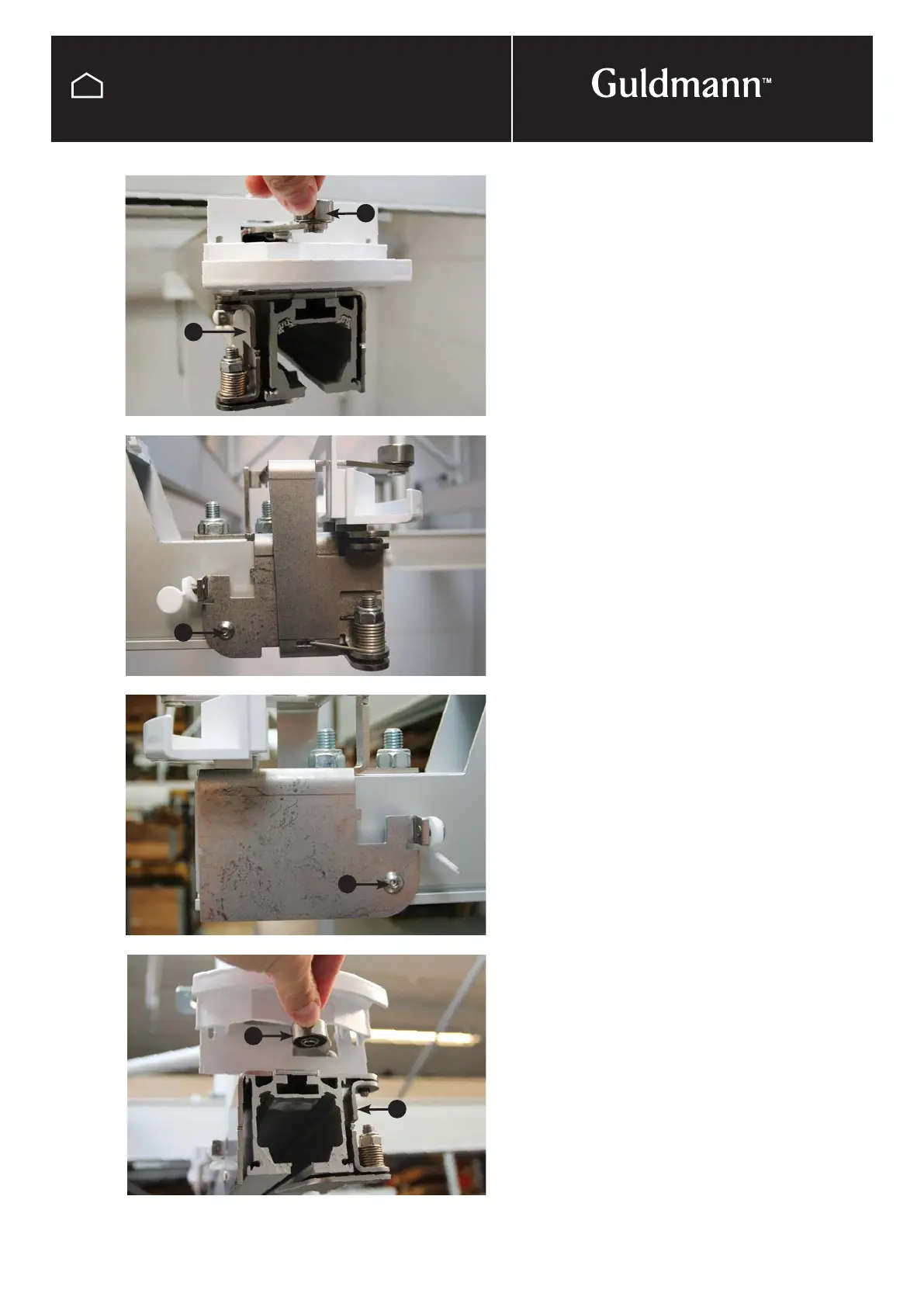

Push the bearing (1), and the gate (2) will move outwards
on the traverse rail’s safety lock.
Be sure all parts are moving easily.
When the bearing is released the gate shall return to
closed position.
Important: If the gate stays open, the safety lock must be
replaced.
Check that the safety lock does not show signs of being
bent or damaged and it is free of corrosion.
Check that the safety lock on the traverse rail is installed
with safety screws (1) on the left side.
Check that the safety lock does not show signs of being
damaged or bent and that it is free of corrosion.
Check that the safety lock on the traverse rail is installed
with safety screws (1) on the right side.
Push the bearing (1), and the gate (2) will move outwards
on the fixed rail’s safety lock.
Be sure all parts are moving easily.
When the bearing is released the gate shall return to
closed position.
Important: If the gate stays open, the safety lock must be
replaced.
Check that the safety lock does not show signs of being
bent or damaged and it is free of corrosion.
GH Combi lock
