SERVICE AND REPAIR

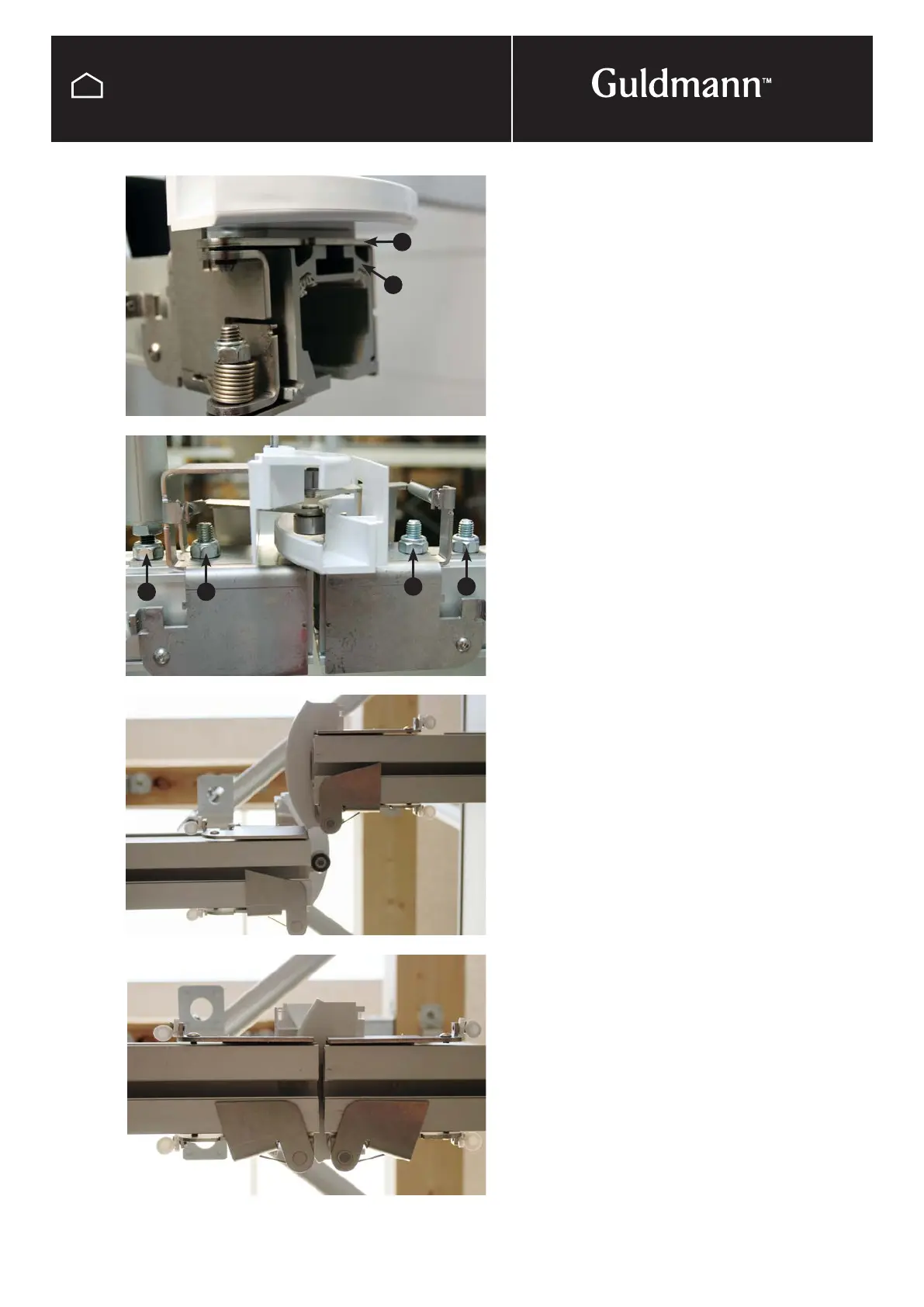

Check that the safety lock’s tongue (1) for the fixed rail is
flush with rail end (2).
Check that the four M10 lock nuts (1) are tightened with
correct torque setting (54Nm).
Check that the safety locks are covering the rail slot, when
the Combi lock is not activated (Closed).
Check that the safety locks are completely open and not
interfering with the rail gap, when the Combi lock is acti-
vated (Open).
GH Combi lock GH
