Productivity Inc – Haas CNC TL Series Lathe Operator Manual Page 37

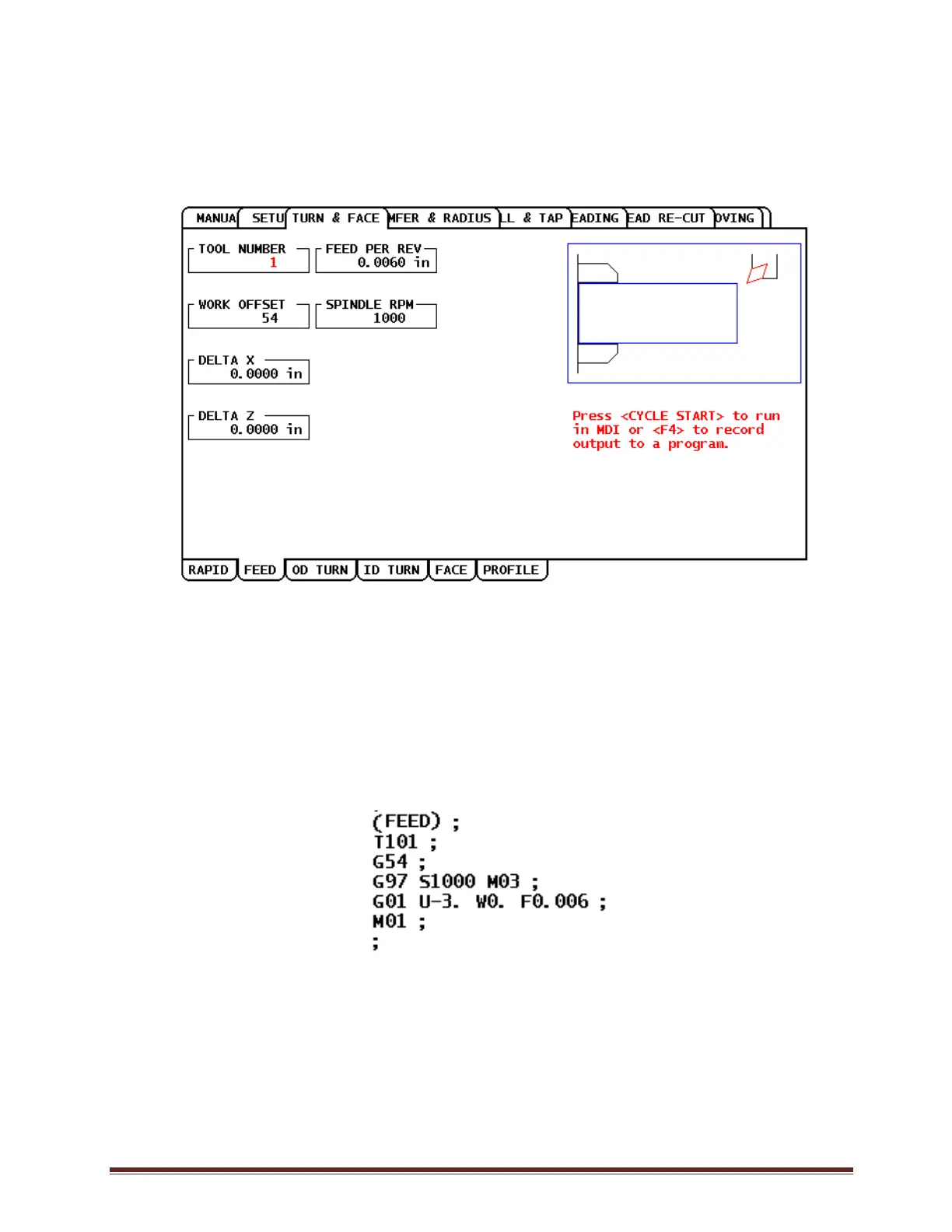

Another way to establish a face and turned surface is to go the IPS screen TURN & FACE and
open the FEED tab below to open the following screen.
In this mode the tool is brought up to the face or turning position manually. Next, a DELTA X or a
DELTA Z distance selected. A feed and spindle speed is entered. The delta x or delta z values are
the incremental distance machine will move at the prescribed feed and speed from the present
position it is at. Pressing the F4 key then selecting Output to MDI will create the program into
MDI.
With a DELTA X of -3.0 entered the following short facing program may be created and run in
MDI.
