Haas TL Series - Tailstock Setup; Work Offsets

ES0609 rev D 4/09
5

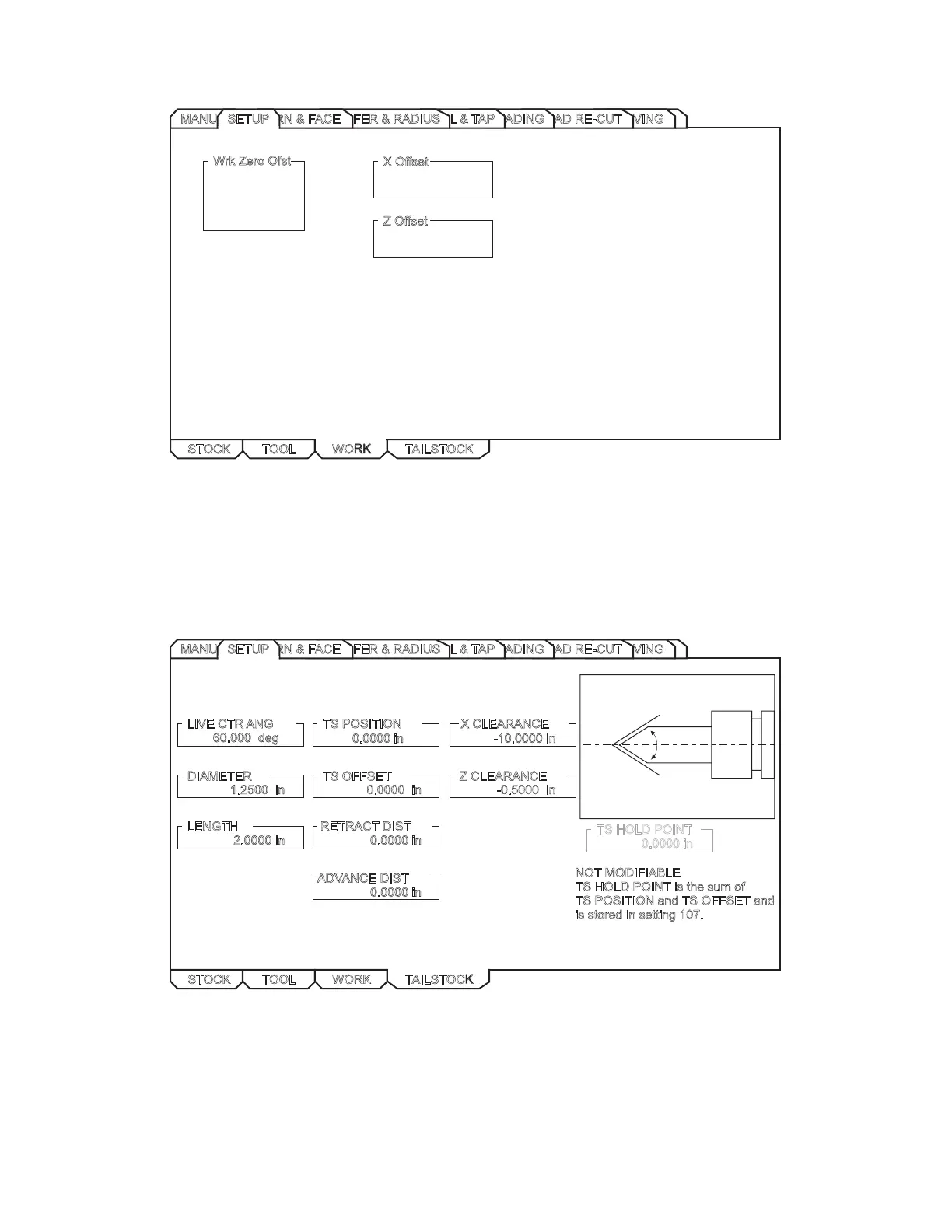

Work Offsets
STOCK TOOL WORK TAILSTOCK
XOffset
Wrk Zero Ofst
54
0.
ZOffset
0.
GROOVINGGROOVINGTHREAD RE-CUTTHREADINGDRILL &TAPCHAMFER&RADIUSTURN&FACEMANUALSETUP
Work Zero Offset – Press the Up and Down arrows to change the displayed Work Zero Offset.
X Offset – Press Write to add or F1 to set position. Enter a value and either press Write to add the value to
the current value, or F1 to replace the value with the entered value.
Z Offset – Press Write to add F1 to set or Part Zero Set to record current position. Enter a value and either
press Write to add the value to the current value, or F1 to replace the value with the entered value. Press Part
Zero Set to record the Z Offset current position.
Tailstock Setup
STOCK TOOL WORK TAILSTOCK
LIVE CTR ANG
60.000 deg
DIAMETER
LENGTH
2.0000 in
TS POSITION
TS OFFSET
RETRACT DIST
0.0000 in
X CLEARANCE
Z CLEARANCE
ADVANCE DIST
0.0000 in
0.0000 in
1.2500 in
NOT MODIFIABLE
TS HOLD POINT is the sum of
TS POSITION and TS OFFSET and
is stored in setting 107.
-10.0000 in
0.0000 in -0.5000 in
TS HOLD POINT
0.0000 in
GROOVINGGROOVINGTHREAD RE-CUTTHREADINGDRILL &TAPCHAMFER&RADIUSTURN&FACEMANUALSETUP
Live Center Angle – Controls center angle of tailstock.
Diameter – Controls the diameter of the tailstock.
Length – Controls the length of the tailstock.
TS Position –
TS Offset –
