Haas TL Series - To Build the Profile Shown

ES0609 rev D 4/09
12
F1 – Help screen popup. Lists available keys used in the Prole Creator along with a short description of each
key’s function.
F2 – Saves the prole on the screen, exits the Prole Creator screen and transfers control back to the Prole
tab.
F3 – Exits the Prole Creator screen and transfers control back to the Prole tab screen. Does not save the
prole’s data.
F4 – Activates and de-activates the zoom and scrolling feature.
INSERT – Inserts a line into the table. This feature will not work if the table is full (all 30 lines used).
ORIGIN – Clears all data in the table.
X JOG KEY – Jumps to the X-axis position in the data table for the currently selected row.
Z JOG KEY – Jumps to the Z-axis position in the data table for the currently selected row.
CURSOR KEYS – Moves around in the data table. If zoom is active, the cursor keys move the part around on
the screen.
(.0001), (.001), (.01), (.1) – Changes the jog step size while drawing in the graphic window.

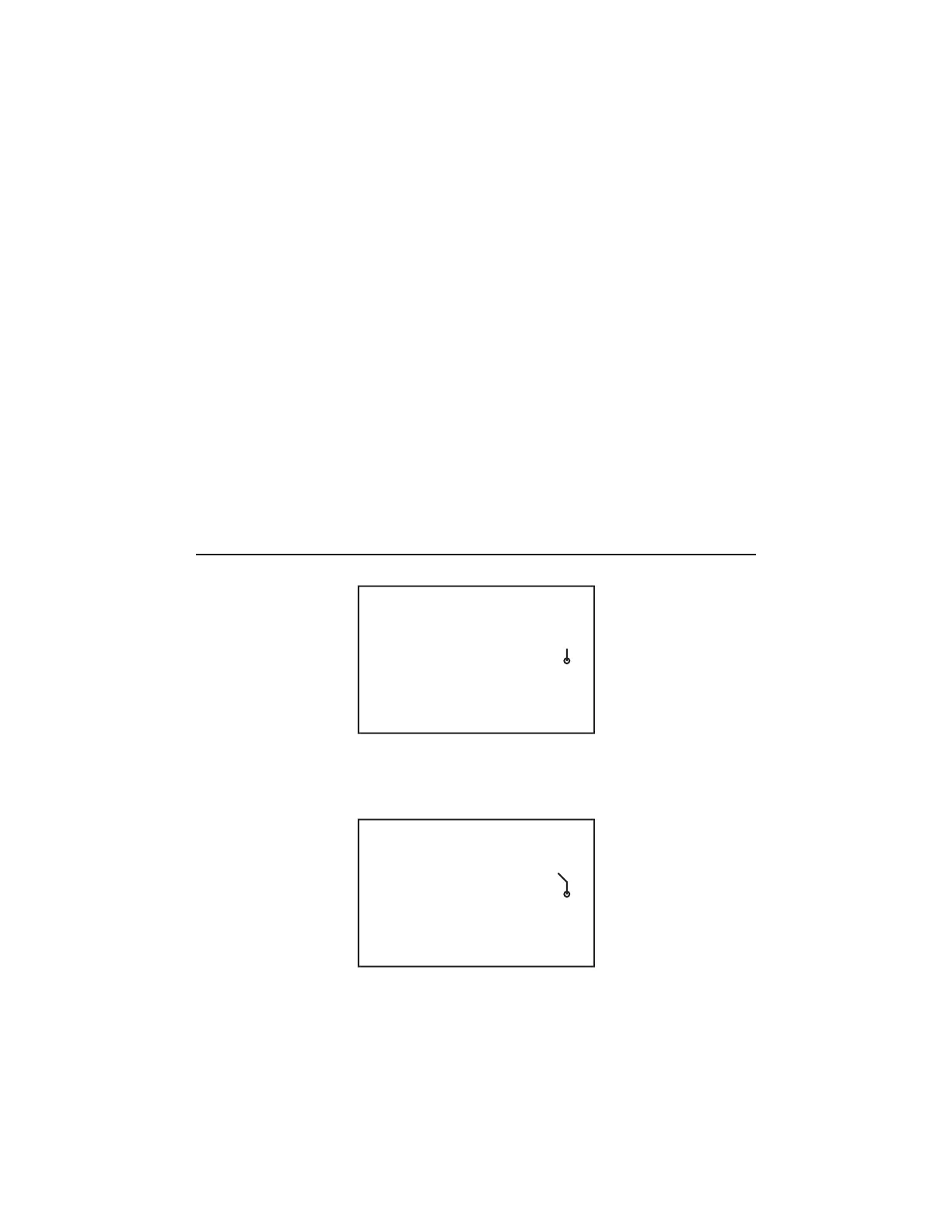

To Build the Prole Shown:
a. Select the Rapd Pt row. Use the arrow keys to select the X POS column and enter 3.5. Use the arrow keys
to select the Z POS column and enter 0.1. Use the arrow keys to go to the beginning of the Start row.
b. Leave the Start PT at X0 Z0. Use the arrow keys to go to the beginning of the next line in the table (4
None). Press 1 to activate a Feed move.
c. Jog X POS to 0.5 by turning the handwheel clockwise, and press Write/Enter.
NOTE: Each handwheel click either increments or decrements the position by 0.1”.
Use the arrow keys to go to the beginning of the next line in the table and press 1 to activate a Feed move.
d. Press Write/Enter until X POS is selected. Jog X to 1.0 and press Write/Enter until Z POS is selected. Jog
Z to -0.25 and press Write/Enter.
Go to the beginning of the next line. Press 1 to activate a Feed move.
e. Press Write/Enter until Z POS is selected. Jog Z to -1.0 and press Write/Enter.
