Productivity Inc – Haas CNC TL Series Lathe Operator Manual Page 6

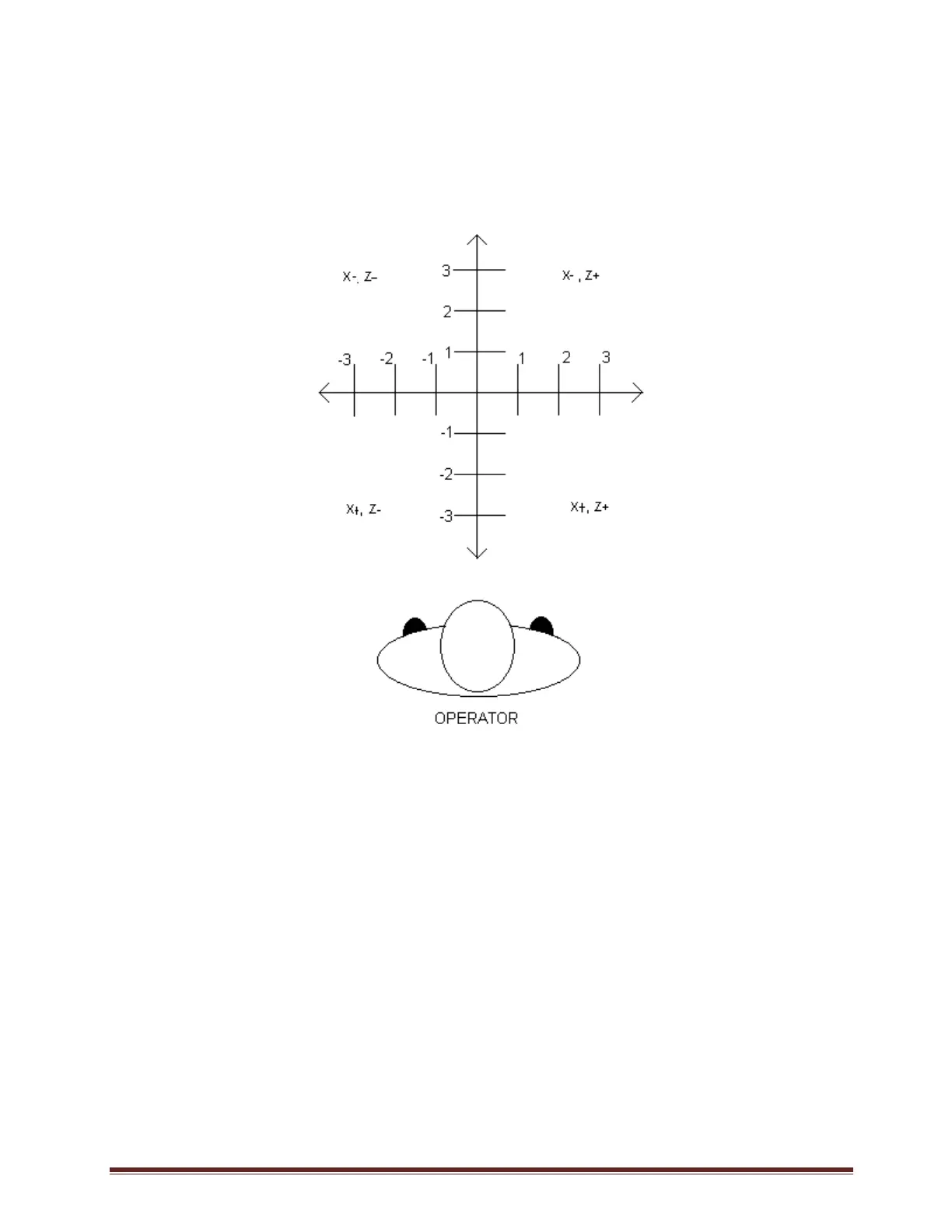

Fig. 1-4: Operator’s working grid.
Whenever we set a zero somewhere on the X axis and somewhere on the Z axis, we have automatically
caused an intersection of the two lines. This intersection where the two zeros come together will
automatically have the four quadrants to its sides, above, and below it. How much of a quadrant we will
be able to access is determined by where we placed the zeros on the travel axes of the lathe.
