UVTOCSetup and System Configuration.fm Setup and System Configuration
Section 5 Setup and System Configuration
5.1 Setup Menu Structure

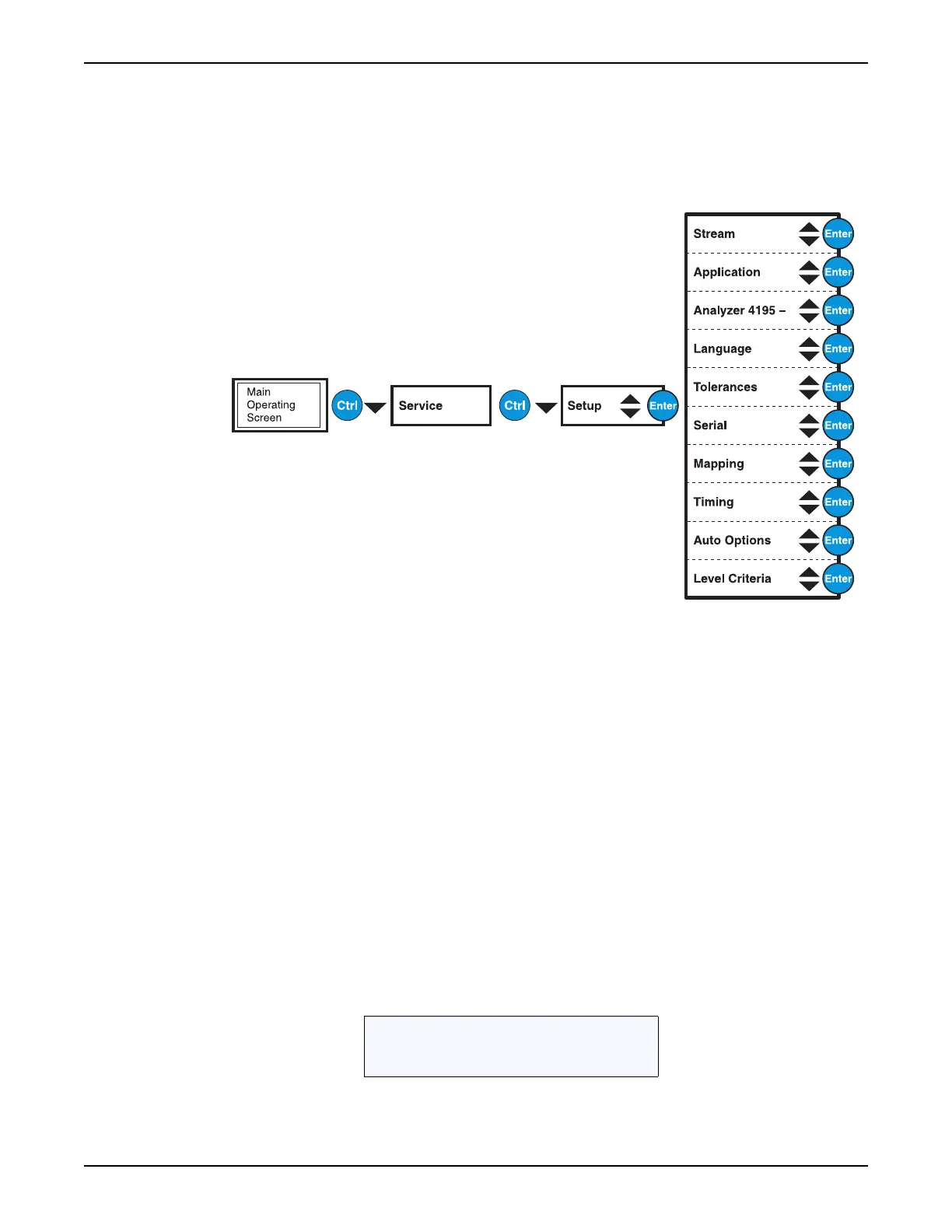

From the Main Menu press CTRL + the DOWN button to enter the Service
menu, then press the UP button to enter the Setup menu. For the complete
setup menu structure, refer to Cat. No. 58487-18 supplied with the analyzer.
5.2 Setup Menu
The Setup screens are normally only used during commissioning to
make minor changes for your application (such as new alarm settings
or range settings).
Under Setup, the following menus are available:
5.2.1 Level Criteria Screen
Press ENTER. The first screen to appear is a Second level screen,
Level criteria.
Press ENTER. The Alarm 1 level screen is displayed.
• Level criteria • Tolerances
• Auto options • Language
• Timing • Analyzer H-4195
• Mapping • Application
• Serial (protocol selection) • Stream (Single/Dual)
Level criteria
To Next Page
