Equipment Description 29
Haemonetics
®
ACP-215
®
Service Manual P/N: SM-ACP215-01-EN(AB)
Shaker A dedicated shaker properly mixes the blood in the RBC bag with the added
solutions. The shaker connects to the rear panel of the device through a hard-
wired cable with a 15-pin subminiature “D” connector (see Figure 8 on page
29). The function of each pin is defined in Table 1 on page 29.

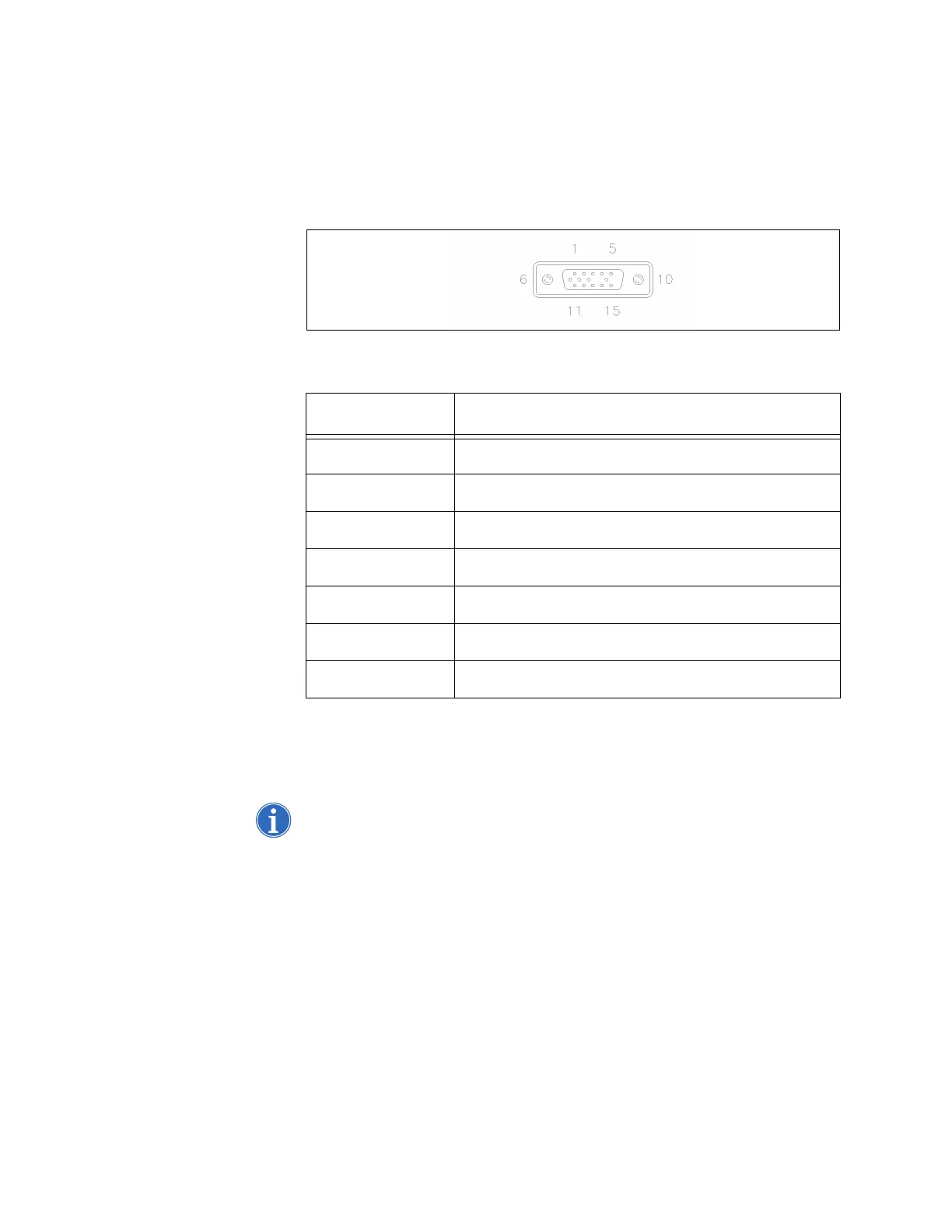

Figure 8, Pin out for shaker cable (end view)
The device provides power to the shaker and controls the shaker’s operations.
The shaker has a platform to firmly hold the RBC bag in place using magnets.
The shaker operates at a frequency of 3 Hz and 1.5 inch amplitude
displacement, (peak-to-peak).
Note: The shaker unit is not repairable in the field. For technical assistance or
to have your shaker serviced in the USA, call Haemonetics Customer Care
Service at 1-800-537-2802. For technical assistance or to have your shaker
serviced in other countries, please contact your local Haemonetics
representative.
Table 1
Pin Number Pin Definition
1, 2, 3, 4 Motor - output
5, 6, 7, 8 Motor + output
9, 10, 11 No connection
12 +5 volts DC
13 DC ground
14 Motor encoder A input
15 Motor Encoder B input
