HTX30 Product Manual
Commissioning
5-19
The JETanchor control module must be mounted in one of the orientations shown in the following figure.
Check the JETanchor control module to see which orientation it has been mounted in, then select the
corresponding orientation from the drop-down list in the JACM Orientation field.

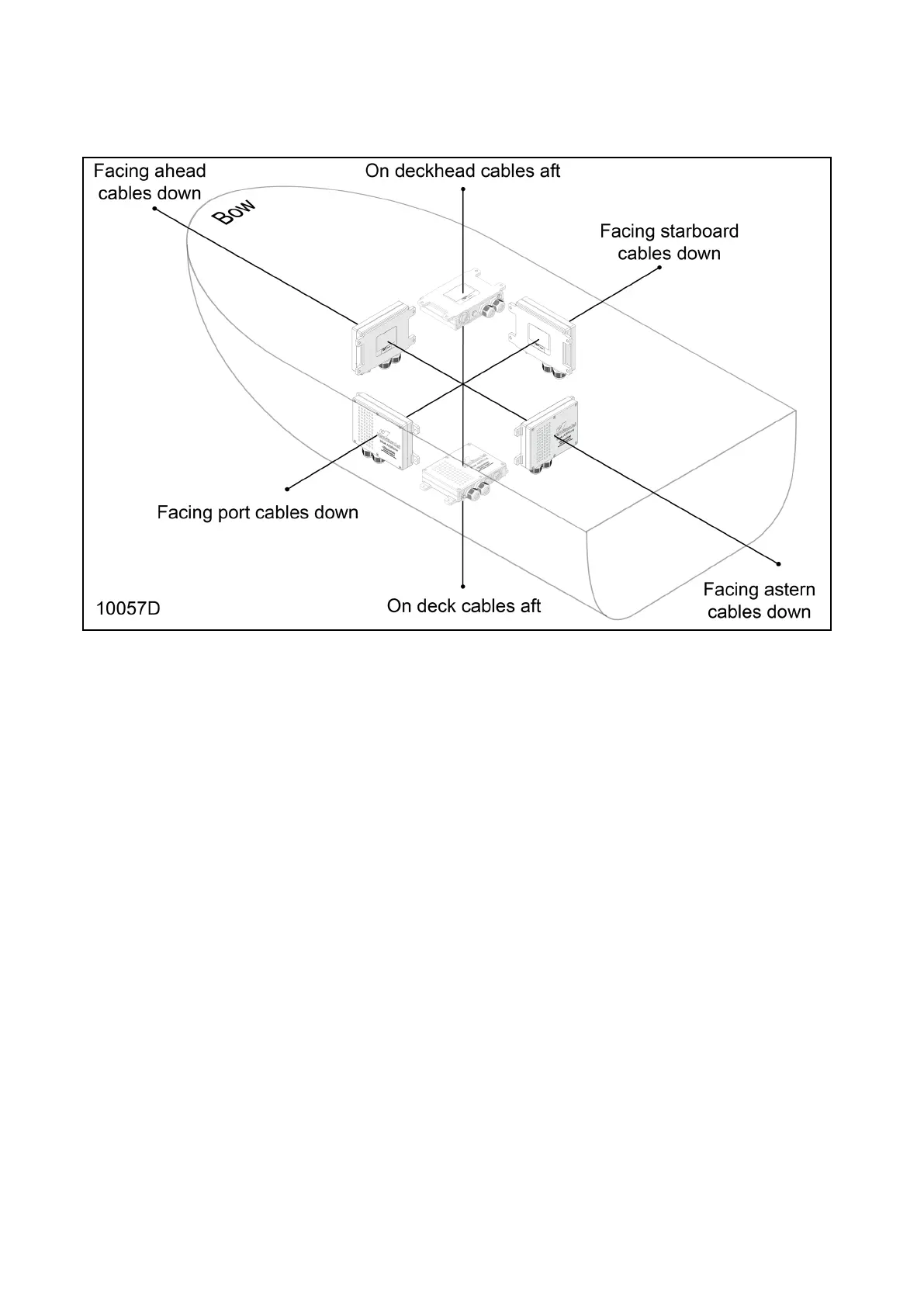

Figure 20: JACM orientation options
