Spraying system
Pump
Six diaphragm pump, model 363 Standard = 540 rpm (6 splines). The design of the diaphragm pump is simple, with easily
accessible valves and diaphragms which isolate the moving parts from the mixture.
Valves and pictograms
The valves and pictograms are identified by a different colour for
different functions. The pictograms facilitate the operation of the valves.
The modular MANIFOLD principle facilitates the addition of optional
suction and discharge equipment. A return valve may be fitted on the
suction valve to improve draining of the sprayer prior to cleaning.
To activate a function, simply turn the handle to the desired function.

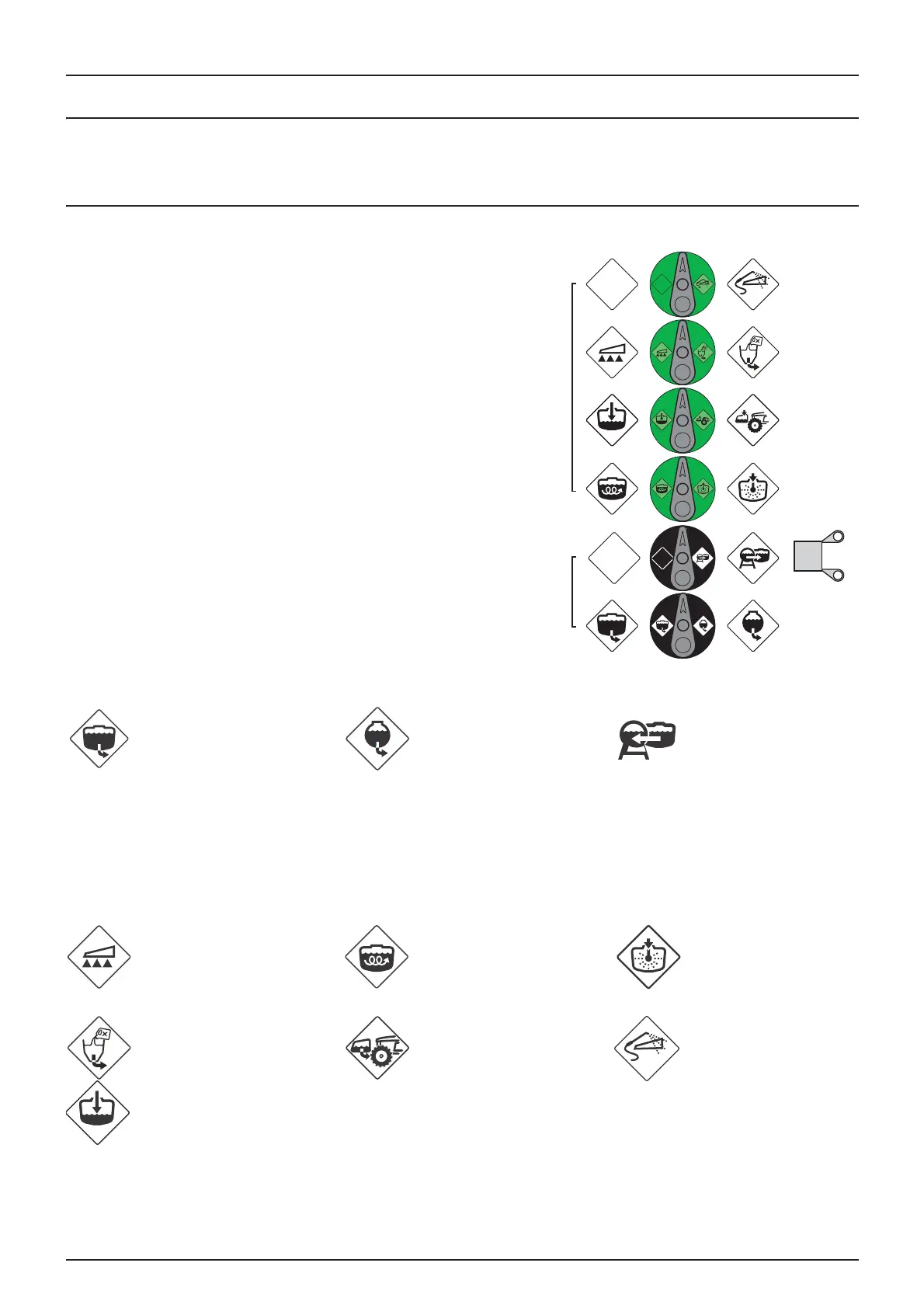

A. Suction valves (main and rinsing tanks, external suction).
B. Pressure valves (spraying, agitation, incorporation of products, tank
rinsing and equipment cleaning).
Suction MANIFOLD valves (A) - black disc
The arrow indicates the active function. Turn the handle to point the
arrow to the pictogram of the function required. If the arrow points to a
position without a pictogram (function not used), the valve is closed.
IMPORTANT! If a valve is difficult to turn or, conversely, turns too easily (= leak) - it should be checked. For more
information, refer to the "Maintenance" section.
Pressure MANIFOLD valves (B) - green disc
The arrow indicates the active function. Turn the handle to point the arrow to the pictogram of the function required. If the
arrow points to a position without a pictogram (function not used), the valve is closed.
From the main tank From the rinsing tank From an external source
To the spraying boom To the main tank agitation To the tank rinsing nozzle
To the product filler To a front tank External cleaning gun
Main tank filling
