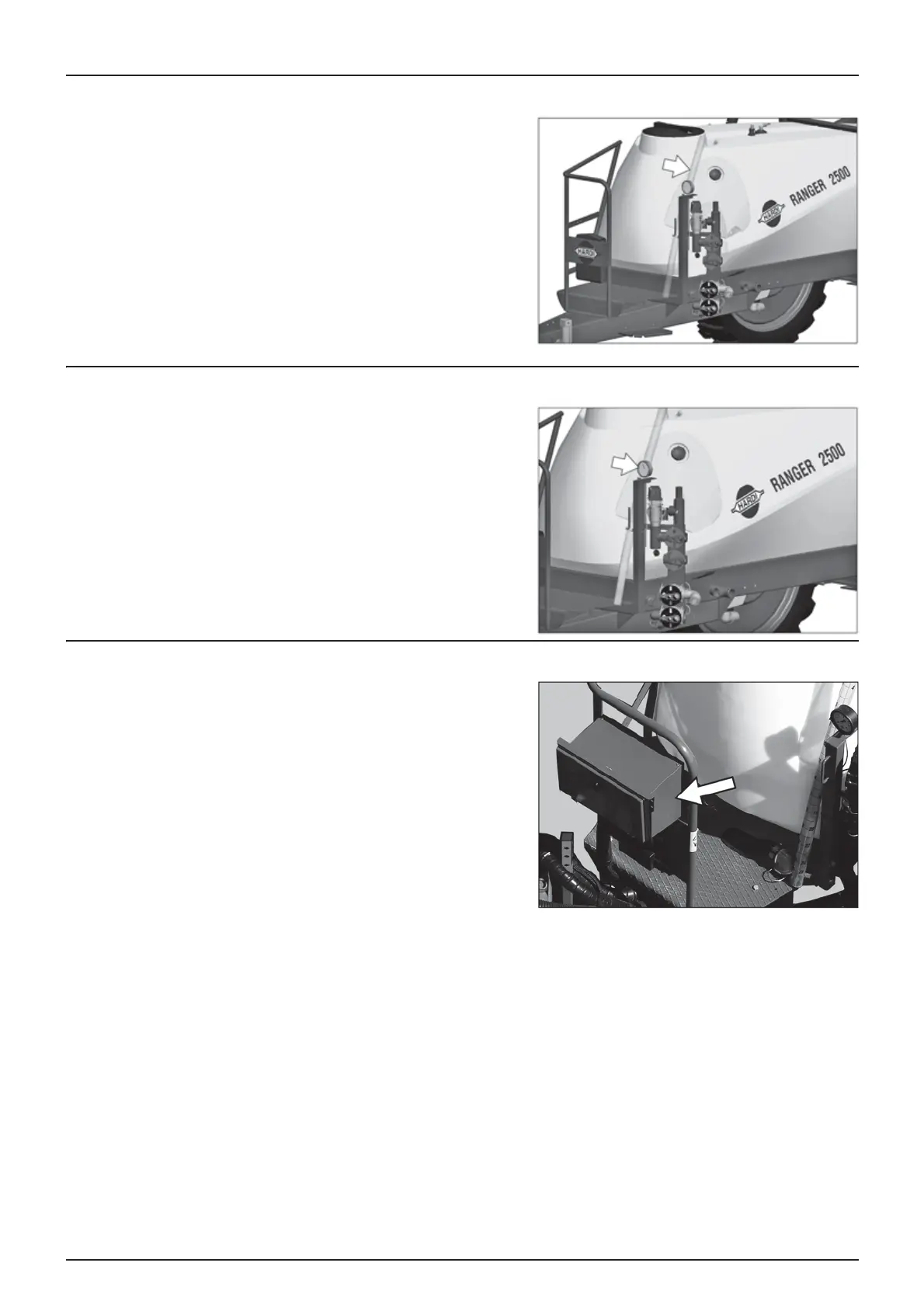

Main tank gauge
The gauge indicates the level of the mixture in the main tank. The scale
is written in litres or Imp./US gallons (for some countries).
The gauge is only an indication of the level in the tank. The total
variation in the accuracy of the level is 7.5% for a tank filled to less than
20% of its capacity. For a tank filled to more than 20%, the accuracy
variation is 5%.
IMPORTANT! For greater accuracy, a filling meter can be fitted as
an option.
Boom pressure gauge
The pressure gauge is located on the platform, above the Manifold
valves. It measures the working pressure in the boom's pipes right next
to the nozzles.
The flow rates shown in the nozzle flow tables are always calculated
according to the pressure measured at the nozzles. When calibrating, as
when working, the pressure should be set using this gauge.
Storage box (optional)
A storage box can be fitted to the platform rail. It is intended for the
storage of protective equipment such as clean clothing, soap for hand
washing, etc. The box is divided into two compartments, allowing clean
items to be separated from dirty ones.
±
WARNING! Although the box is intended for storing clean items,
it should never be used for storing food, drinks or any other
consumable.
