3 - Description
23

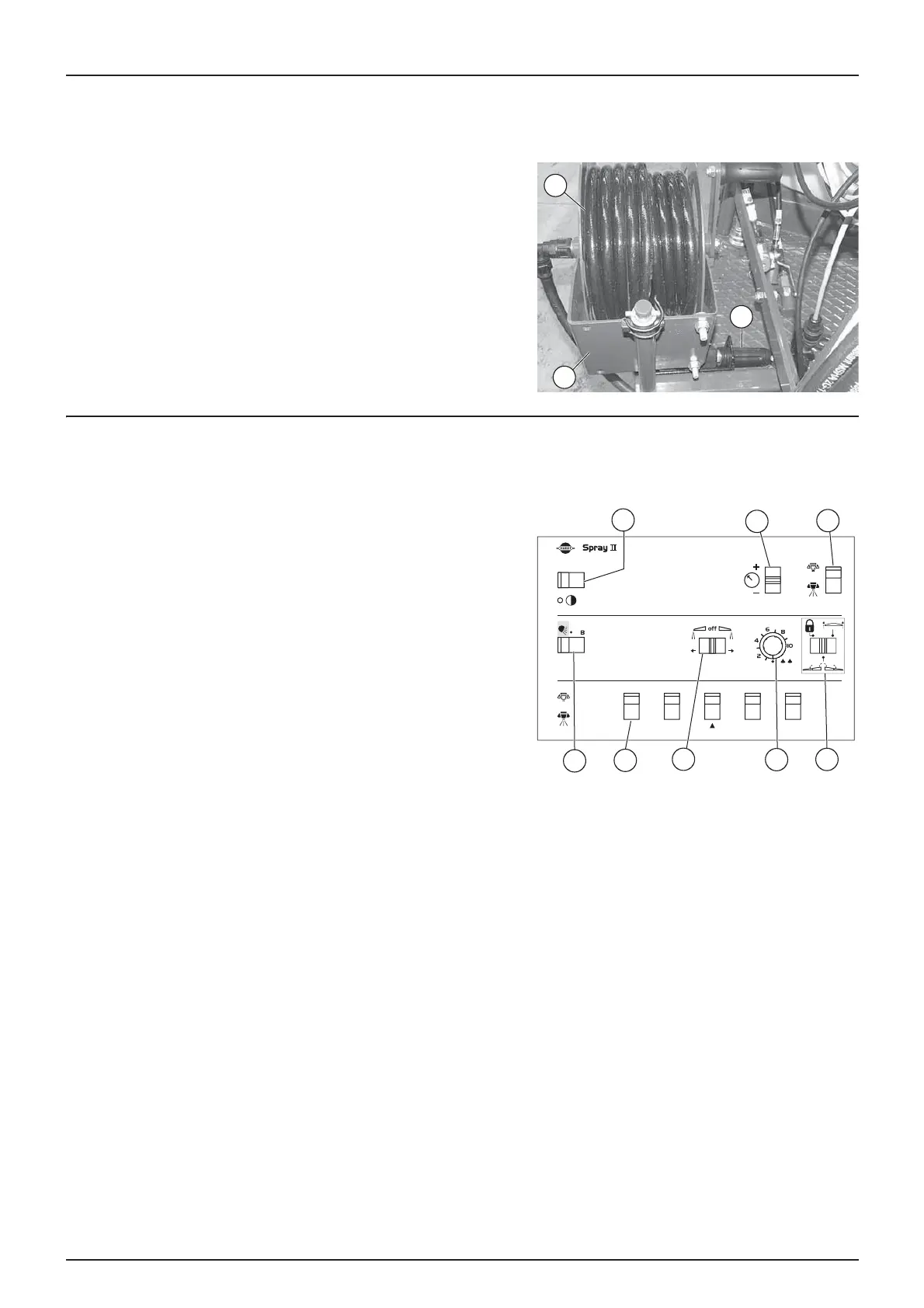

External cleaning equipment (optional)
This equipment comprises a reel with a hose and a spray gun for rinsing the sprayer with clean water while still in the field.
The external cleaning equipment is located to the right of the sprayer.
1. Reel
2. Spray gun
3. Rotating hose reel bracket
For information on using the hose reel, refer to the relevant section.
TR2 Y version control unit
'Sprayll' hydraulic and spraying control
The switches on the Spraying unit control the following functions:
1. Switching on the unit.
2. Regulating the working pressure. Regulates the working pressure.
3. General spraying Open/Closed. Opens or closes all sections.
Closed position at the top and Open position at the bottom.
4. End nozzles (Left/OFF/Right). If end nozzles are fitted, opens them
on each side. Closed position in the middle.
5. Not used
6. Central frame locking selection - Boom Open/Closed - Tilt
7. Individual spray section control valves Open/Closed.
Closed position at the top and Open position at the bottom.
8. Boom lights (optional)/Tank bottom dilution (optional)
For more information on using the spraying functions, refer to section Spray controls page 48
For more information on using the hydraulic functions, refer to section TR2 Y boom hydraulic controls page 37
1
3
2
