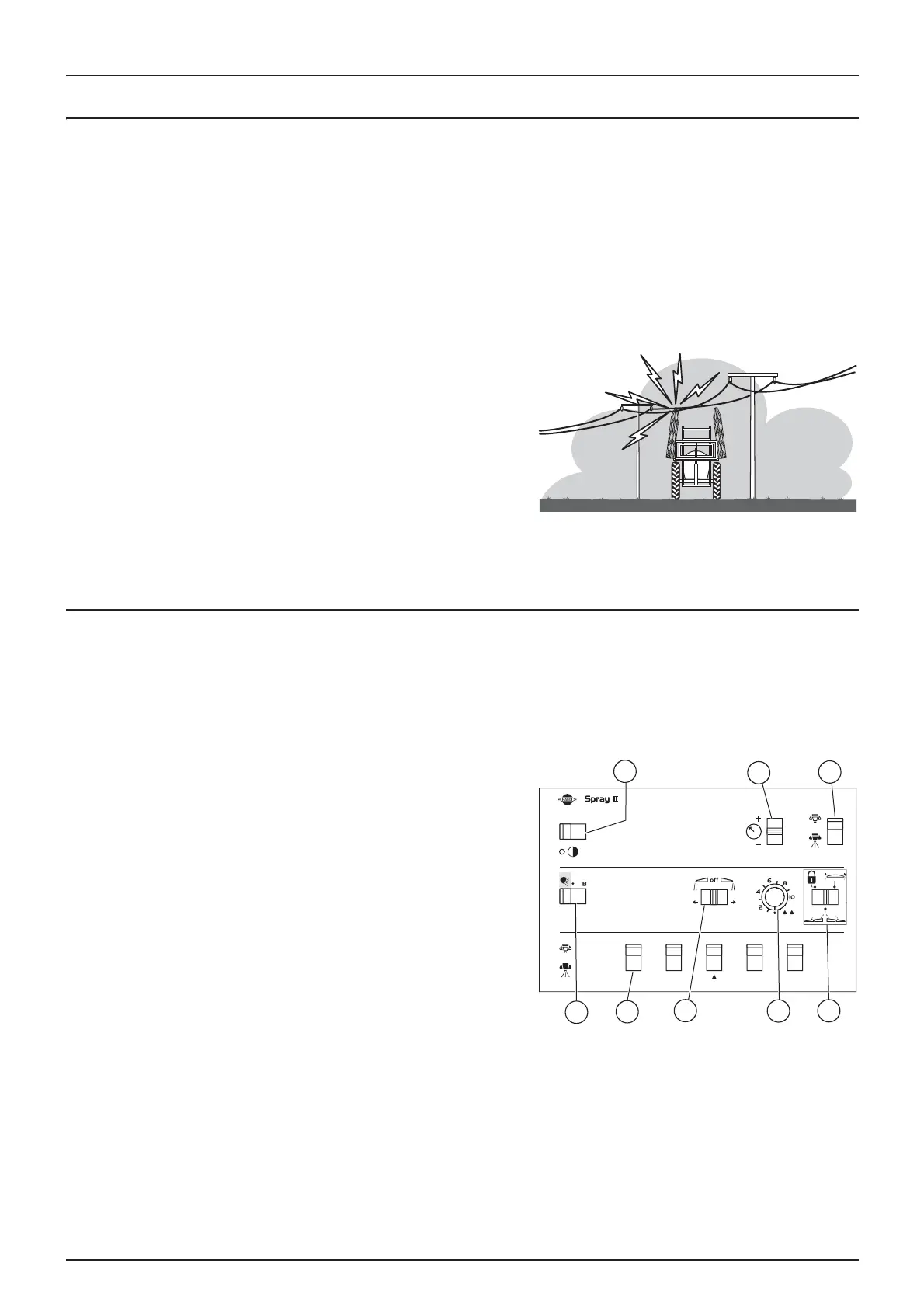

37
5 - Operation
Boom
Safety instructions
The boom must never be unfolded/folded while the sprayer is moving. Only use the unfolding/folding functions when the
sprayer is stationary. Any failure to comply with this rule could damage the boom.
DANGER! Before unfolding the boom, hitch the sprayer to the tractor to prevent it tipping over.
DANGER! Before unfolding or folding the boom, check that nothing and no one is within its field of movement.
DANGER! When you are close to high voltage lines, follow the advice below very carefully:
Never unfold/fold the boom close to overhead power lines.
It could touch the lines during accidental movements.
IMPORTANT! A warning sticker (ref. 978448) is delivered with the
equipment. Display this in the cab, visible from the driver's seat.
IMPORTANT! The boom must be unfolded/folded on even
ground.
TR2 Y boom hydraulic controls
±
WARNING! Before using the unfolding/folding functions, check that the frame is locked in place.
±
WARNING! The boom unfolding/folding functions must only be used when the sprayer is stationary. Otherwise the
boom could be damaged.
To unfold the TR2 Y boom, proceed as follows:
±
Control of the boom's hydraulic functions depends on the direction in which the hydraulic hoses are connected and
the control of the tractor's single and double acting valves.
÷
For more details on identifying the hoses, refer to section Version TR2 Y hydraulic connection page 32
1
7
5
4
6
8
2
3
