Hardi RANGER 2500 TR2 User Manual

8 - Technical specifications
81

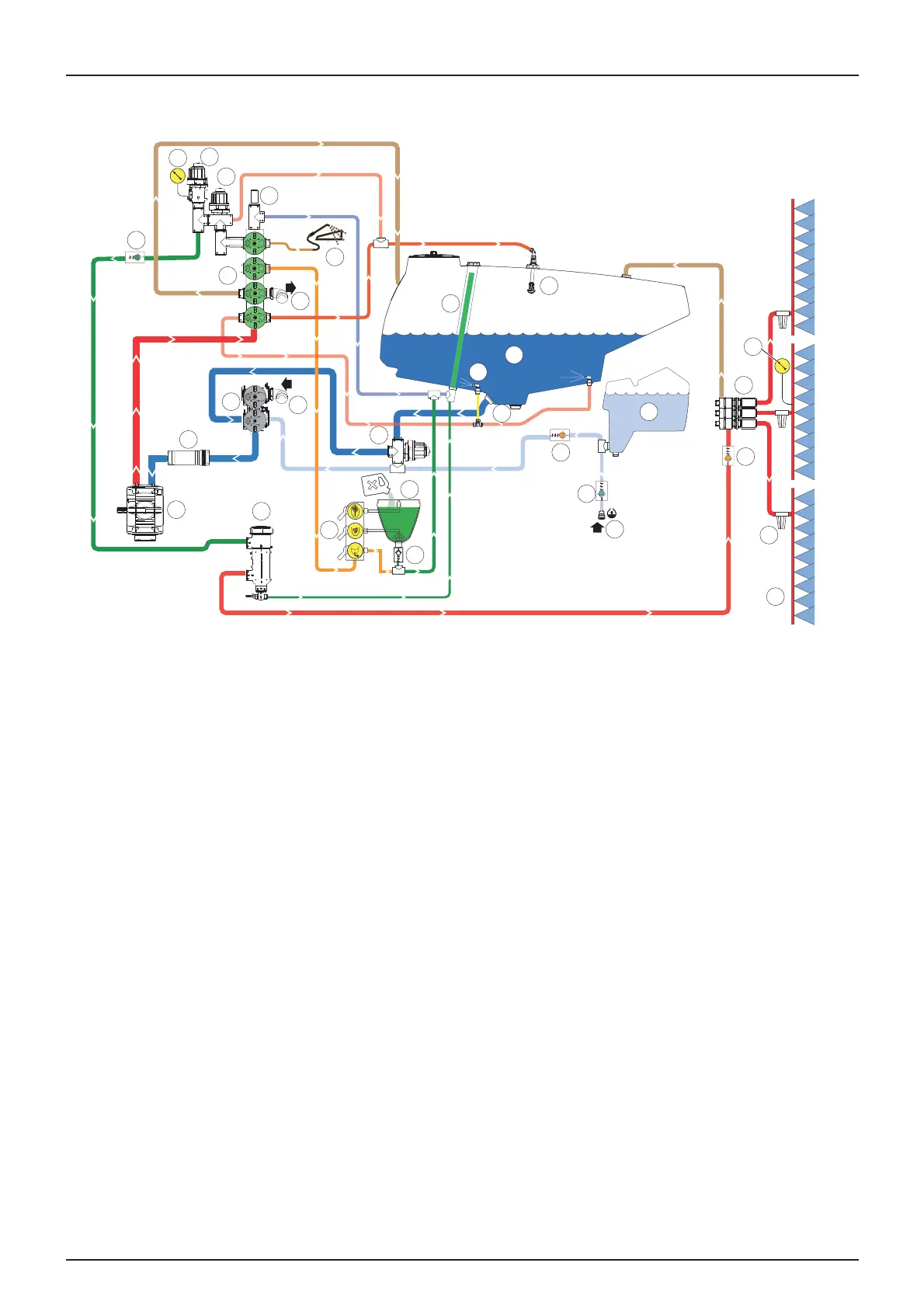

Spraying system with options
1. main tank
2. rinsing tank
3. rinsing nozzle
4. pressure gauge
5. EVC valves
6. non-return valve
7. rinsing tank filling connector
8. TurboFiller
9. TurboFiller valves
10. Cyclone filter
11. suction filter
12. spraying pump
13. suction MANIFOLD valves
14. discharge MANIFOLD valves
15. gun for external cleaning equipment (optional)
16. regulation valve
17. Tank bottom dilution valve - Discharge
18. Tank bottom dilution valve - Suction
19. safety valve
20. boom filters
21. spraying sections
22. agitation
23. Drain valve
24. main tank return
25. external filling connector
26. transfer connector
1
2
5
6
6
6
8
9
10
11
12
13
14
26
25
15
21
20
24
22
23
16
17
19
18
7
6
6
4
3
4
