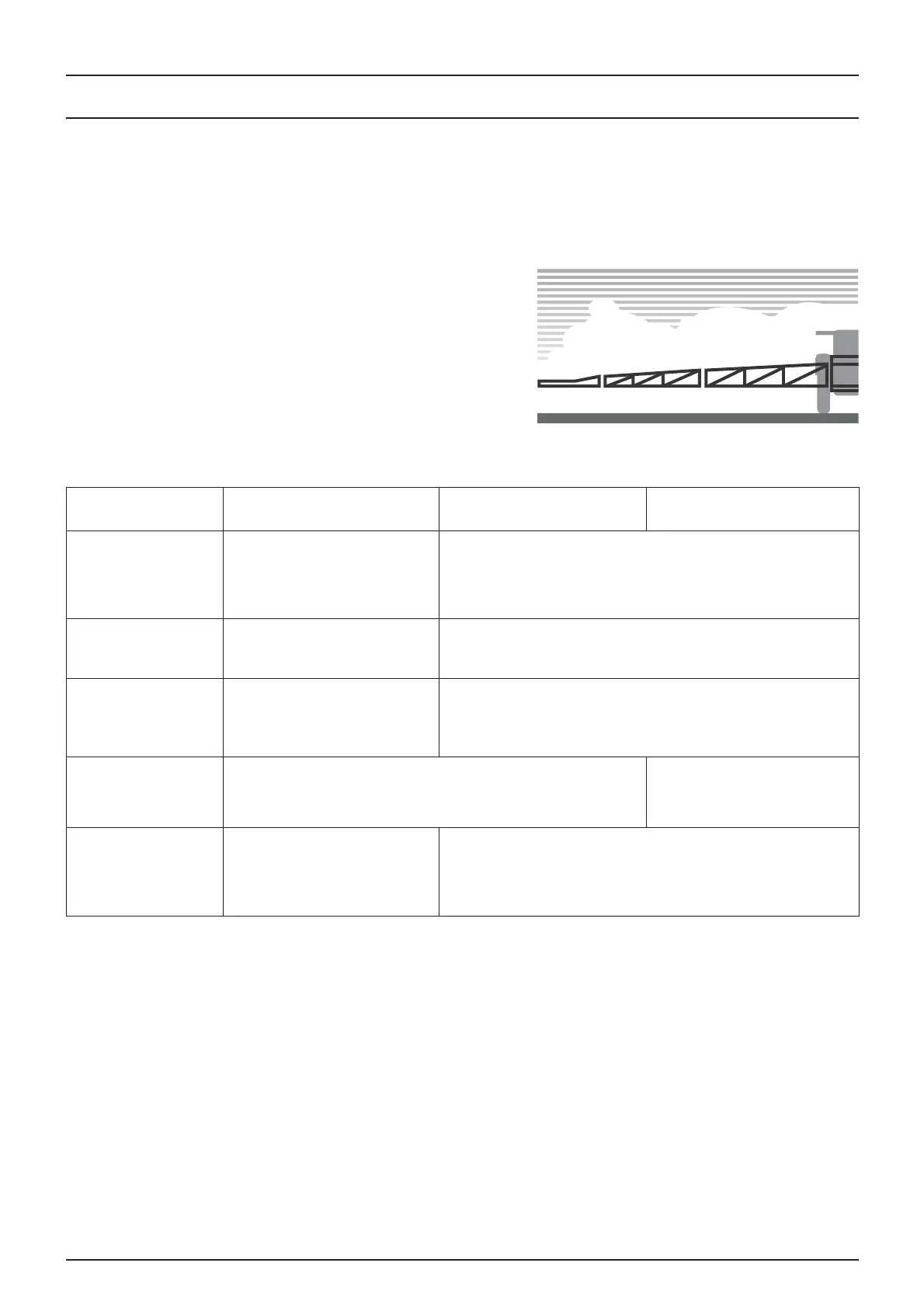

Boom
Boom and terminology
The sprayer is equipped with a TR2 boom. It is held by trapeze arms fixed to the tank's chassis.
The trapeze arms allow the boom to remain horizontal when unfolded and protect it from impacts and vibrations on uneven
terrain. They ensure the longevity of the boom and improve its stability, resulting in more accurate application.
Booms are available in 18, 20, 21, 22 and 24m working widths. All booms are fitted with folding end arms.
The terminology for dual-fold booms is as follows
A - Folding end arm
B - Outer arm
C - Inner arm
D - Central section
Model
Equipment
TR2 Y TR2 V TR2 Z
Function control Tractor valve
control
By hydraulic solenoid valves
and unit in the cab
Independent folding of
the ends
no yes
Hydraulic tilt corrector
optional
Tractor valve
control
yes
Boom tilt
no
yes
Tractor valves
1 single acting control valve
+
1 double acting control valve
1 single acting control valve
+
free return
