Hardi RANGER 2500 TR2 User Manual

8 - Technical specifications
80

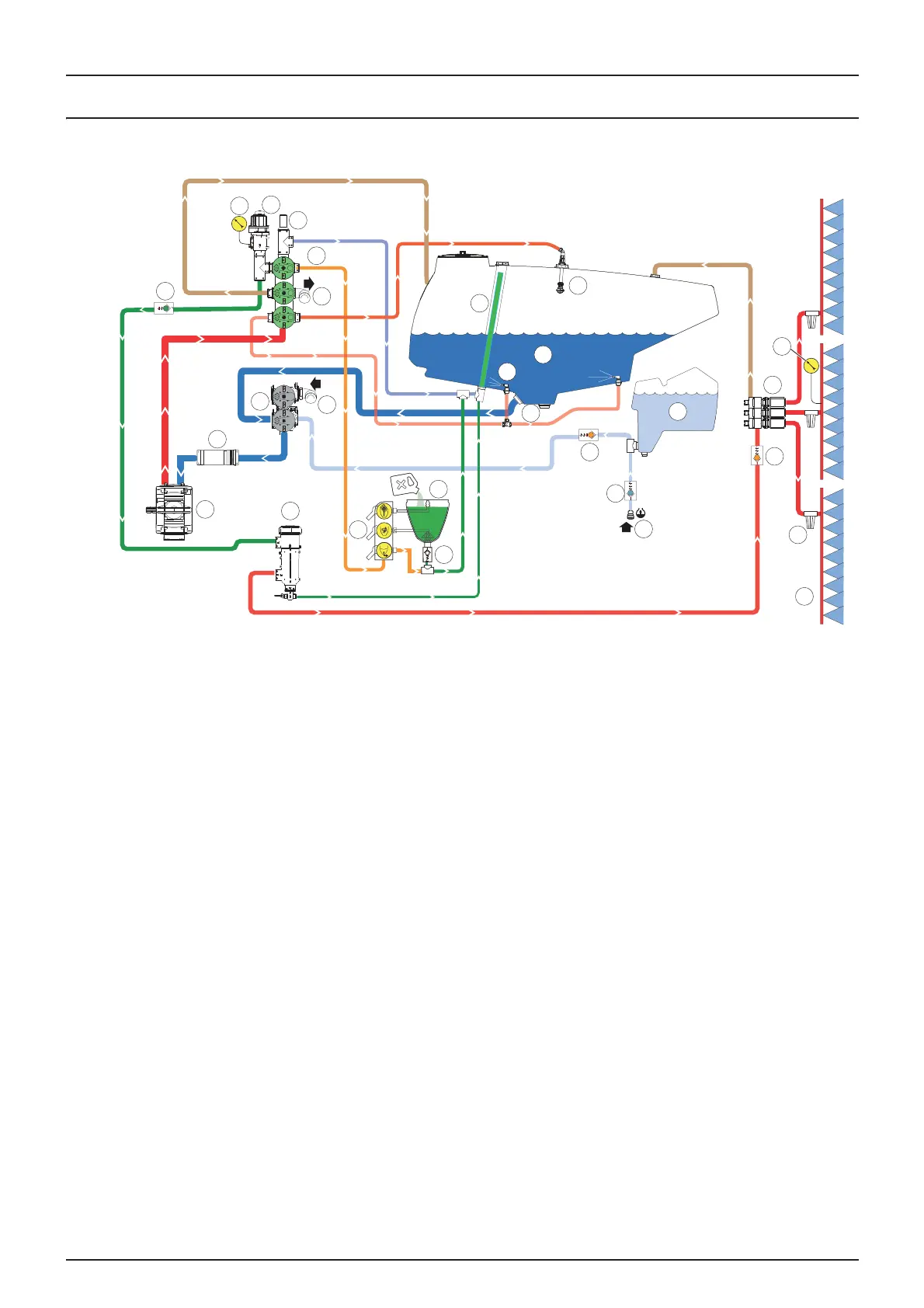

Spraying system schematic diagrams
Basic spraying system
1. main tank
2. rinsing tank
3. rinsing nozzle
4. pressure gauge
5. EVC valves
6. non-return valve
7. rinsing tank filling connector
8. TurboFiller
9. TurboFiller valves
10. Cyclone filter
11. suction filter
12. spraying pump
13. suction MANIFOLD valves
14. discharge MANIFOLD valves
15.
16. regulation valve
17.
18.
19. safety valve
20. boom filters
21. spraying sections
22. agitation
23. Drain valve
24. main tank return
25. external filling connector
26. transfer connector
1
2
5
6
6
6
8
9
10
11
12
13
14
26
25
21
20
24
22
23
16
19
7
6
6
4
3
4
