3 - Description
24

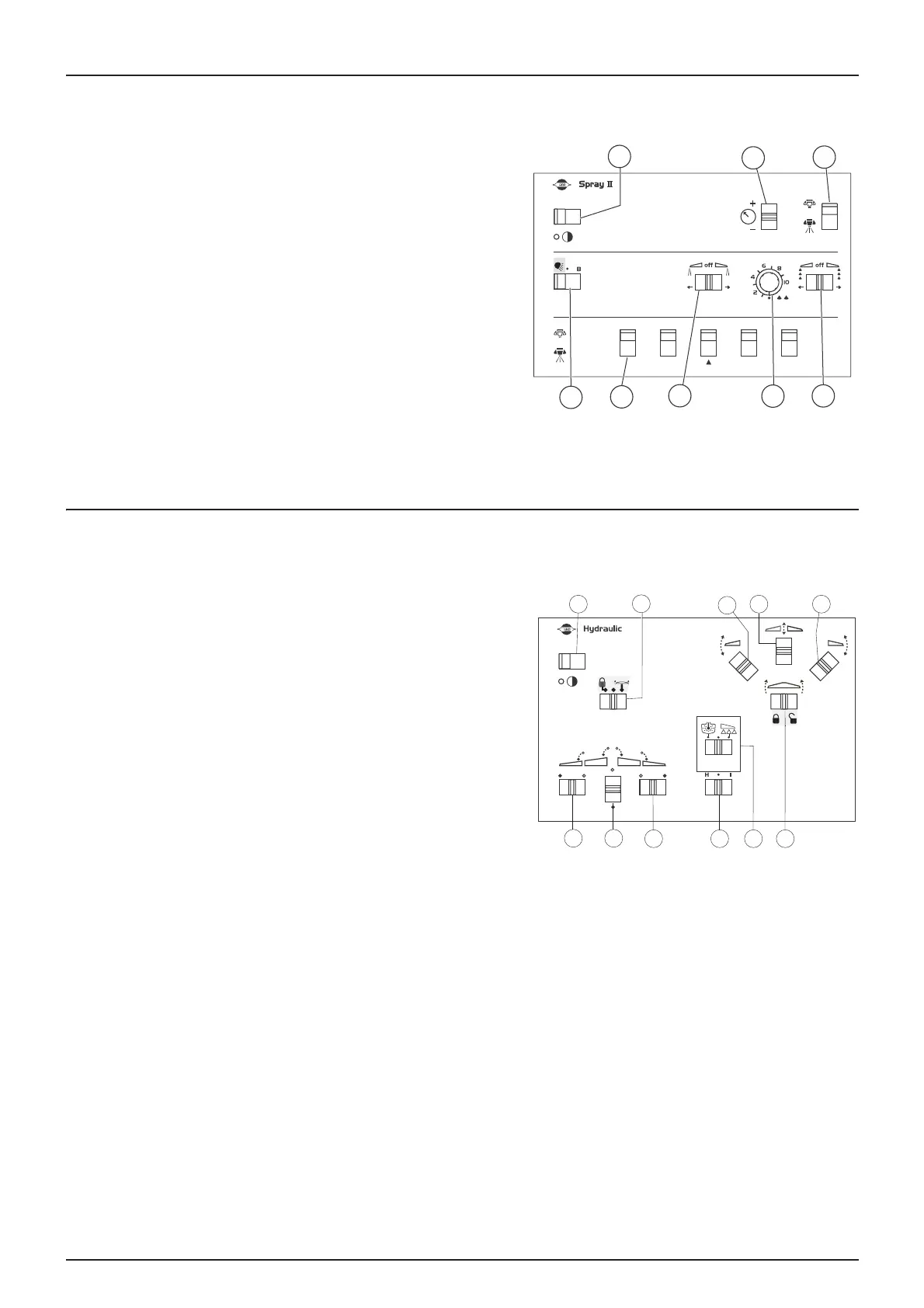

'Sprayll' spraying control
The switches on the spraying control unit control the following functions
1. Switching on the unit.
2. Regulating the working pressure. Regulates the working pressure.
3. General spraying Open/Closed. Opens or closes all sections.
Closed position at the top and Open position at the bottom.
4. End nozzles (Left/OFF/Right). If end nozzles are fitted, opens them
on each side. Closed position in the middle.
5. Not used
6. Not used.
7. Individual spray section control valves Open/Closed.
Closed position at the top and Open position at the bottom.
8. Boom lights (optional).
For more details on using the spraying functions, refer to section Spray controls page 48
'Hydraulic' control
The switches on the hydraulic control unit control the following functions:
1. M/A supply
2. Selection of central frame locking or tilt correction
3. Left boom tilt - TR2 Z version only
4. Boom raise/lower
5. Right boom tilt - TR2 Z version only
6. Fold out/fold in left arm
7. Inner arm simultaneous fold out/fold in
8. Fold out/fold in right arm
9. Hydraulic drawbar
10. Tank bottom dilution (optional)
11. Central frame locking/tilt correction control
For more information on using the hydraulic functions, refer to section TR2 V and TR2 Z boom hydraulic controls page 39
1
7
5
4
6
8
2
3
H2o
H
2
o
1
2
4 5
3
6
8
11
9
7
10
