Spray controls
• To stop the entire boom spraying, set the general O/C switch (3) to closed. The mixture then returns to the tank via the
pressure compensators. The anti-drip valves ensure the nozzles close instantly.
• To shut off one or more sections of the boom, set the corresponding switch(es) (7) to the closed position. The
compensators ensure that pressure is maintained in the sections that remain open.
• On the sprayer, the suction valve must be set to "In the main tank" and the discharge valve to "Spray". Then adjust the
agitation using the valve provided for this purpose.
For more information on the control units, refer to section TR2 Y version control unit page 23.
Quick guide - Operation

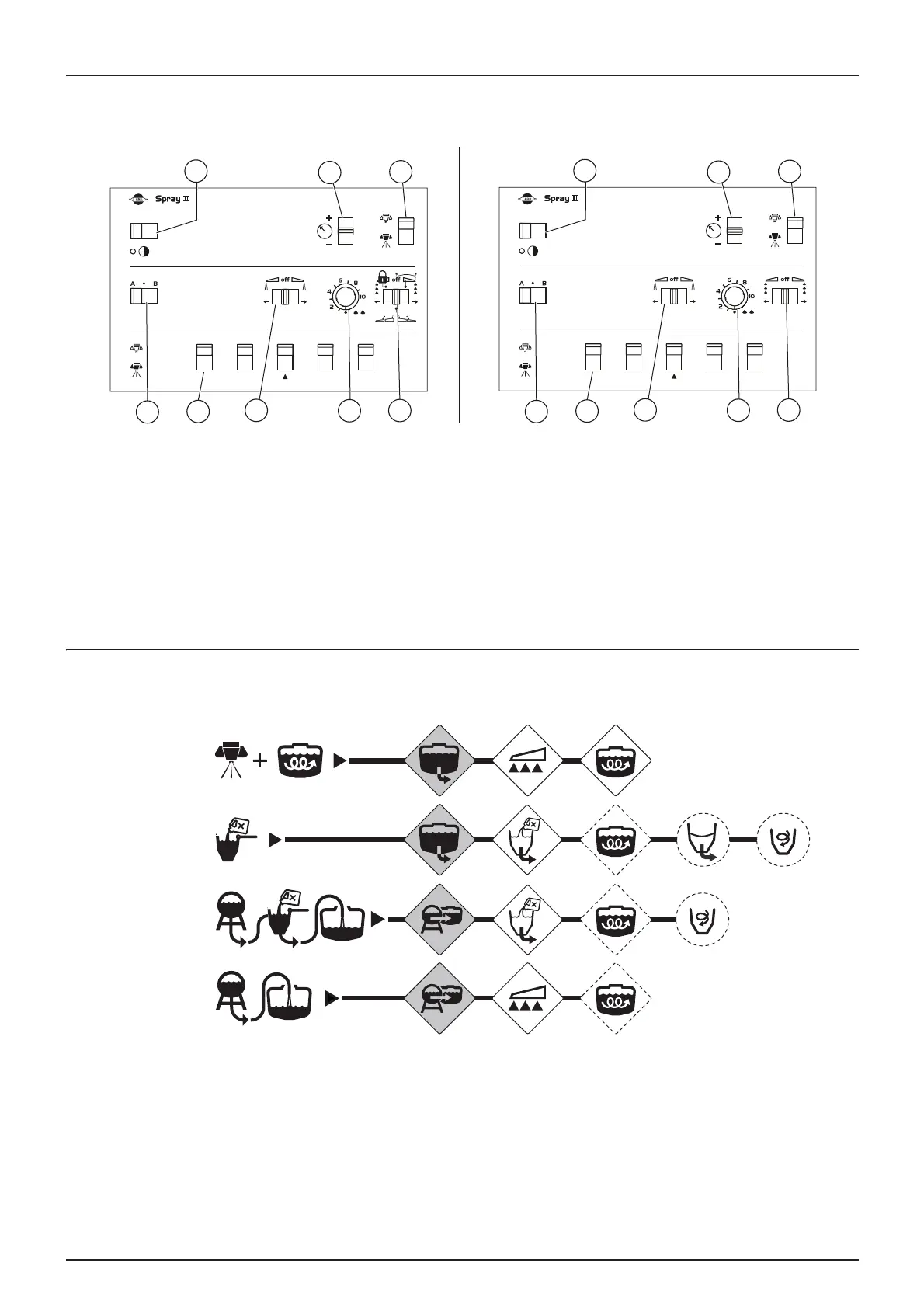

You will find below the correct position for the valves according to the desired operation.
1
7
5
4
6
8
2
3
TR2 V et Z
1
7
5
4
6
8
2
3
TR2 Y
1
2
3
4
