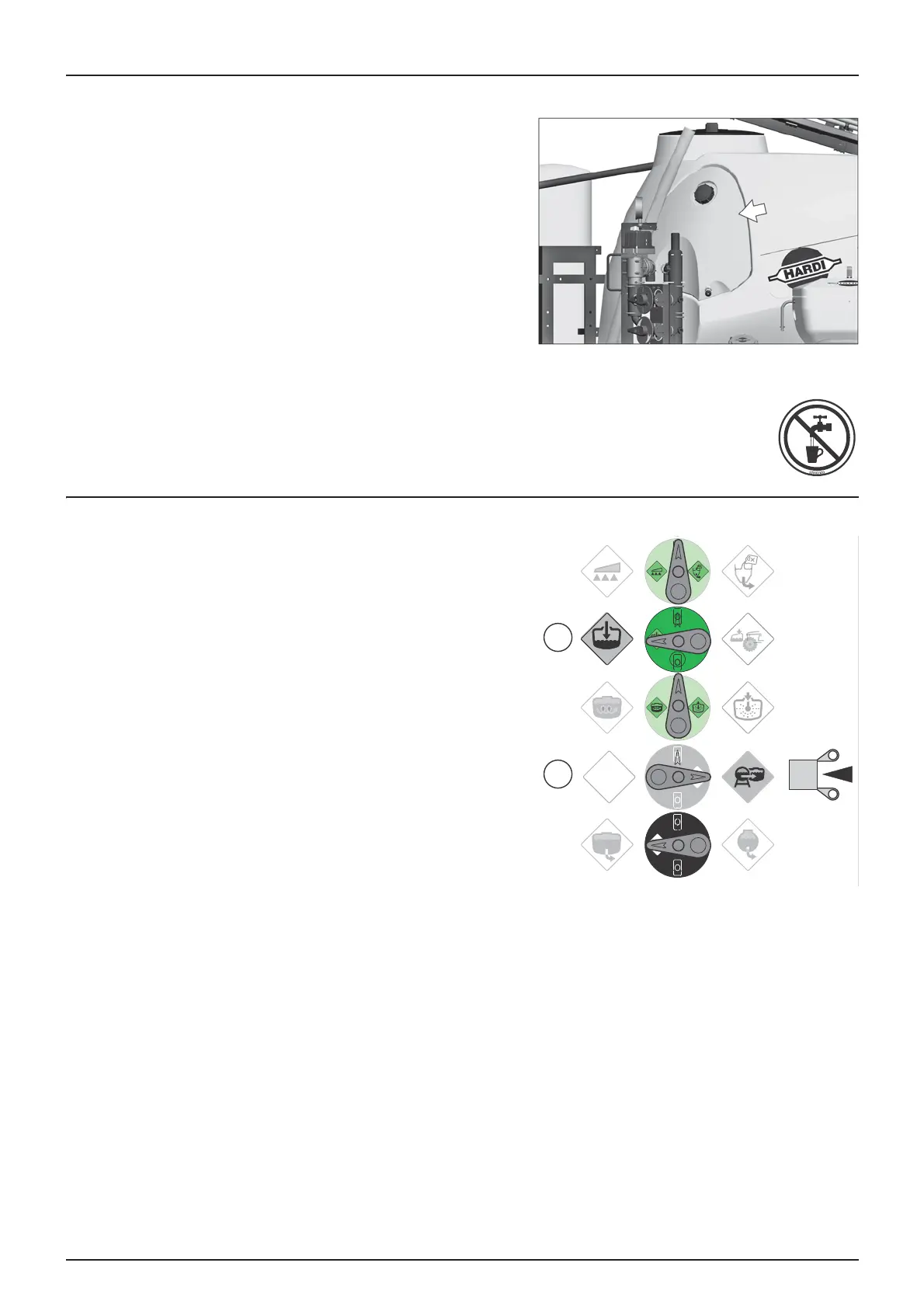

Filling the hand wash tank
A hand wash tank is built into the front left of the main tank (behind the
Manifold valves). It is accessible for filling on the operator's right hand
side, when climbing on to the platform.
To fill the hand wash tank:
1. Remove the tank lid
2. Fill with clean water
3. Replace the tank lid.
To use the water:
• Turn the ball valve to open the tap.
The water contained in this tank is intended for hand washing, cleaning
a blocked nozzle, etc. Fill this tank with clean water only.
Capacity: 20 litres.
±
WARNING! Although this tank contains only clean water, NEVER drink it.
Water filling device
The filling device operates as follows:
• Ensure the suction valve (1) is closed before removing the plug.
• Connect the filling pipe to the suction valve (1).
• Turn the pressure valve (2) to "Direct filling"
• Switch on the pump and set the power take-off to 540 rpm.
• Turn the handle on the suction valve (1) to "External suction"
• The tank fills with water. Monitor the gauge.
• To stop filling, close the suction valve (1) and then turn the suction
valve (3) to the "Main tank suction" position.
• Switch off the pump.
• Disconnect the suction pipe and replace the plug.
€
DANGER! Avoid any contamination or personal injury. Do not
turn the suction valve on the filling device before connecting the pipe and switching on the pump. If you open the
valve without switching on the pump, liquid will leak out via the connector.
±
WARNING! Do not leave the sprayer while the tank is filling and keep an eye on the gauge, so that the tank does NOT
overflow.
IMPORTANT! Comply with current legislation with regard to the use of filling devices. In some areas, it is forbidden to
take water from natural reservoirs (lakes, rivers, etc.). It is strongly recommended that you fill the tank from a closed
reservoir in order to avoid any contamination.
