8 - Technical specifications
86

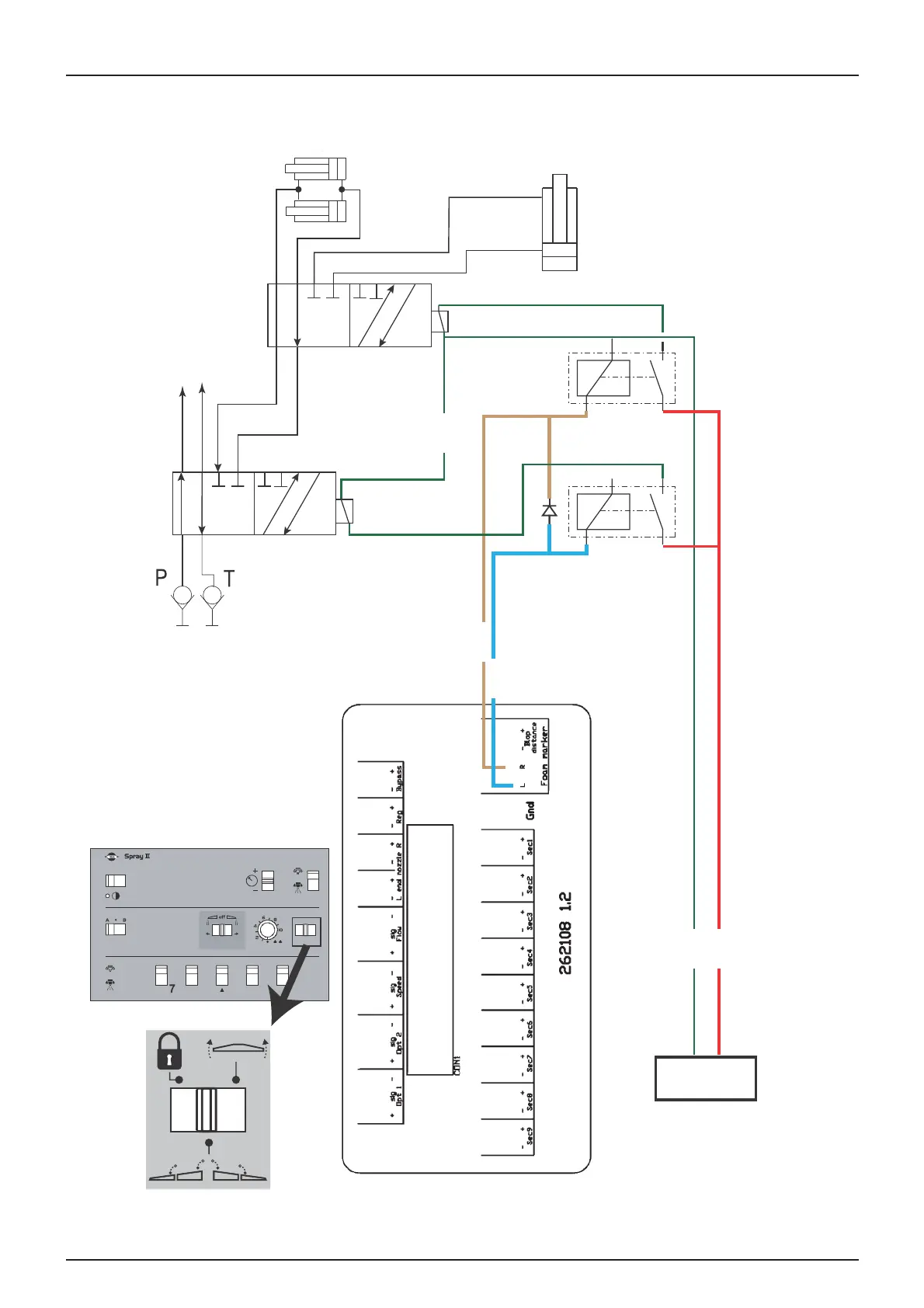

Electrical diagram for blockage - tilt - boom unfolding selection - TR2 Y
SELECTEUR N°1
PLOT PUISSANCE
12VDC
SELECTEUR N°2
VERIN DE DEVERS
VERS VERINS DE
DEPLIAGE REPLIAGE
DE LA RAMPE
VERINS DE BLOCAGE
+
-
ROUGE
BRUN
BLEU
NOIR
NOIR
