C-14 888-2463-001 3/6/08
WARNING: Disconnect primary power prior to servicing.
Diamond Series™
Appendix C Pioneer Power Supply
PM33215F-8 Instructional Manual, Rev 3, 4/23/2007
12
Section 8 I/O Interface Connections
ATTENTION:
The following Procedure Must Be Carried Out By An Electrically Competent
Person Using Appropriate ESD and Soldering Procedures.
“Electrically Competent Person” as defined in the IEC-60215 Safety Standard

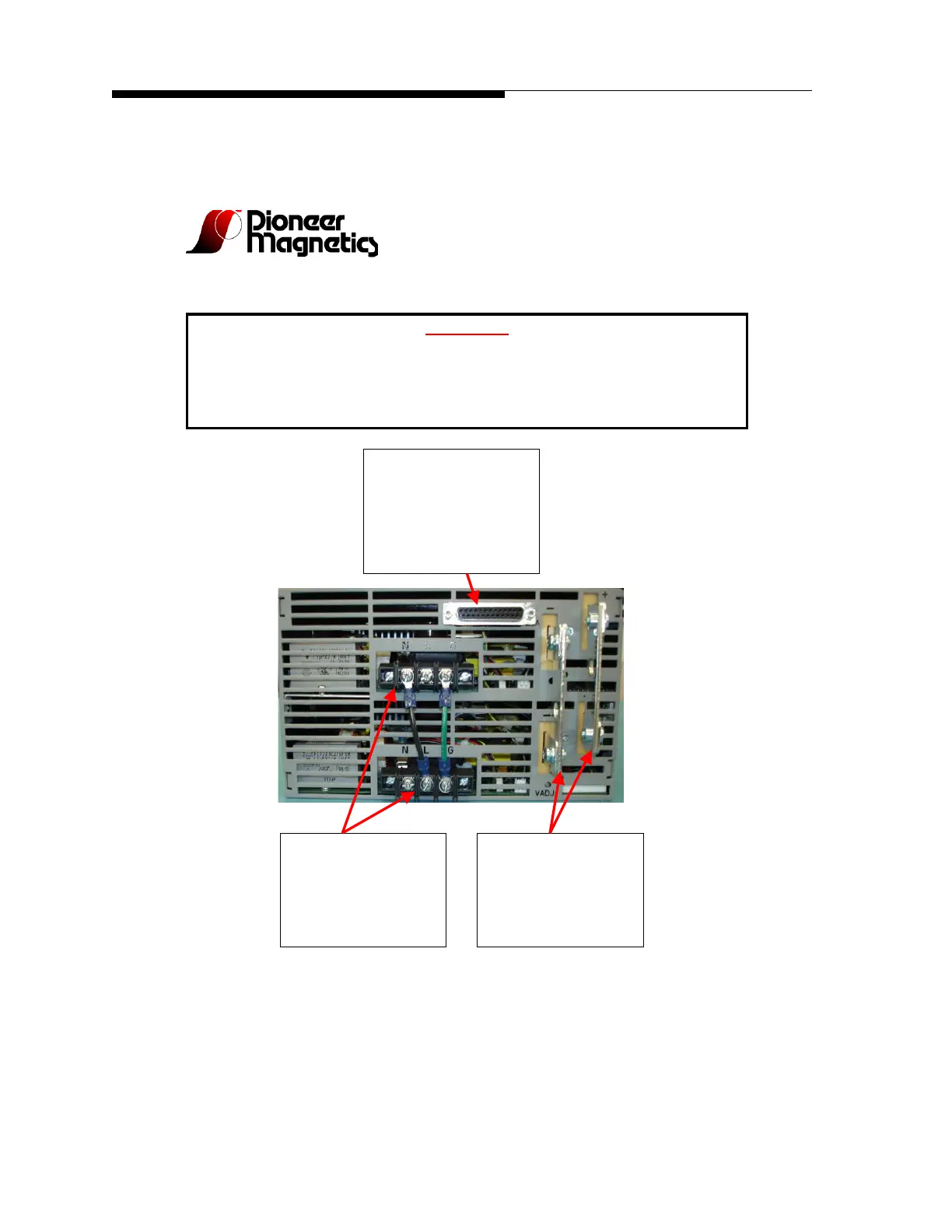

Option Connector DB25:
(-156A)
Pin 1 DC OK Return
Pin 2 DC OK Source
Pin 4 Remote Sense (+)
Pin 6 Remote Sense (-)
Pin 8 Remote Enable Input
Pin 9 Remote Enable Return
AC Input
Two sets of three position
terminal blocks using 6-32
screws. These terminal blocks
can be wired for 240VAC or
480VAC. The terminals are
wired for 480VAC at the factory
DC Output
Positive & Negative output bus
bars with 0.325” holes.
The outputs of the two modules
are connected in parallel with
bus bars at the factory
