3/6/08 888-2463-001 C-21
WARNING: Disconnect primary power prior to servicing.
Appendix C Pioneer Power Supply
Diamond Series™
PM33215F-8, 5kW, Instructional manual Rev 2, 3/26/2007 19
Section 11 Replacing Fan Assembly

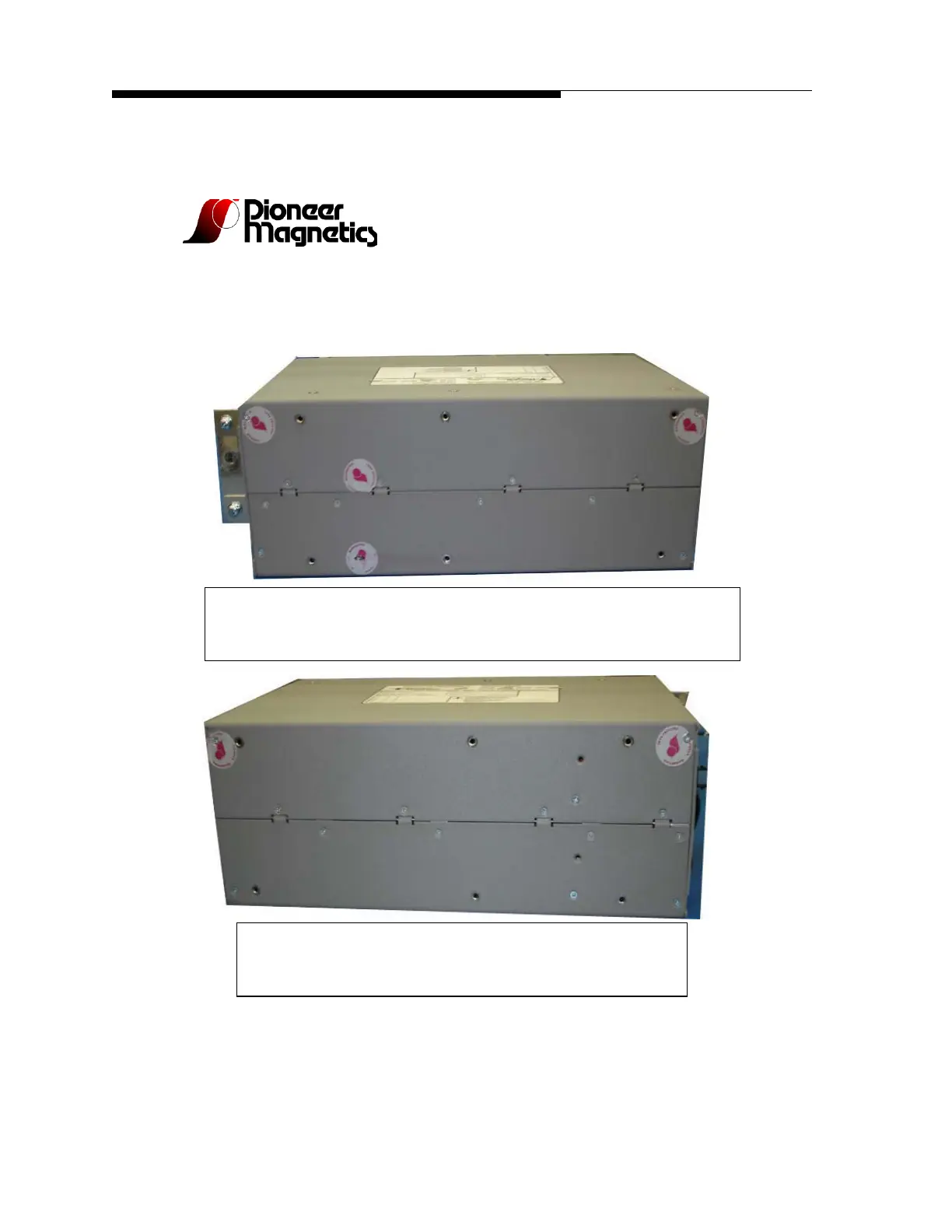

Step 1: To Remove the Top cover, follow the instructions below.
Top Cover
6
5
23
Remove the six screws on one side at the marked locations.
The screws marked 1 and 6 are covered by the Warranty labels.
Remove these screws w/o removing the labels.
Note screw size and locations
Remove the seven screws on other side at the marked locations.
The screws marked 1 and 7 are covered by the Warranty labels.
Remove these screws w/o removing the labels.
Note screw size and location
Top Cover
7
6
5
23
To Next Page
