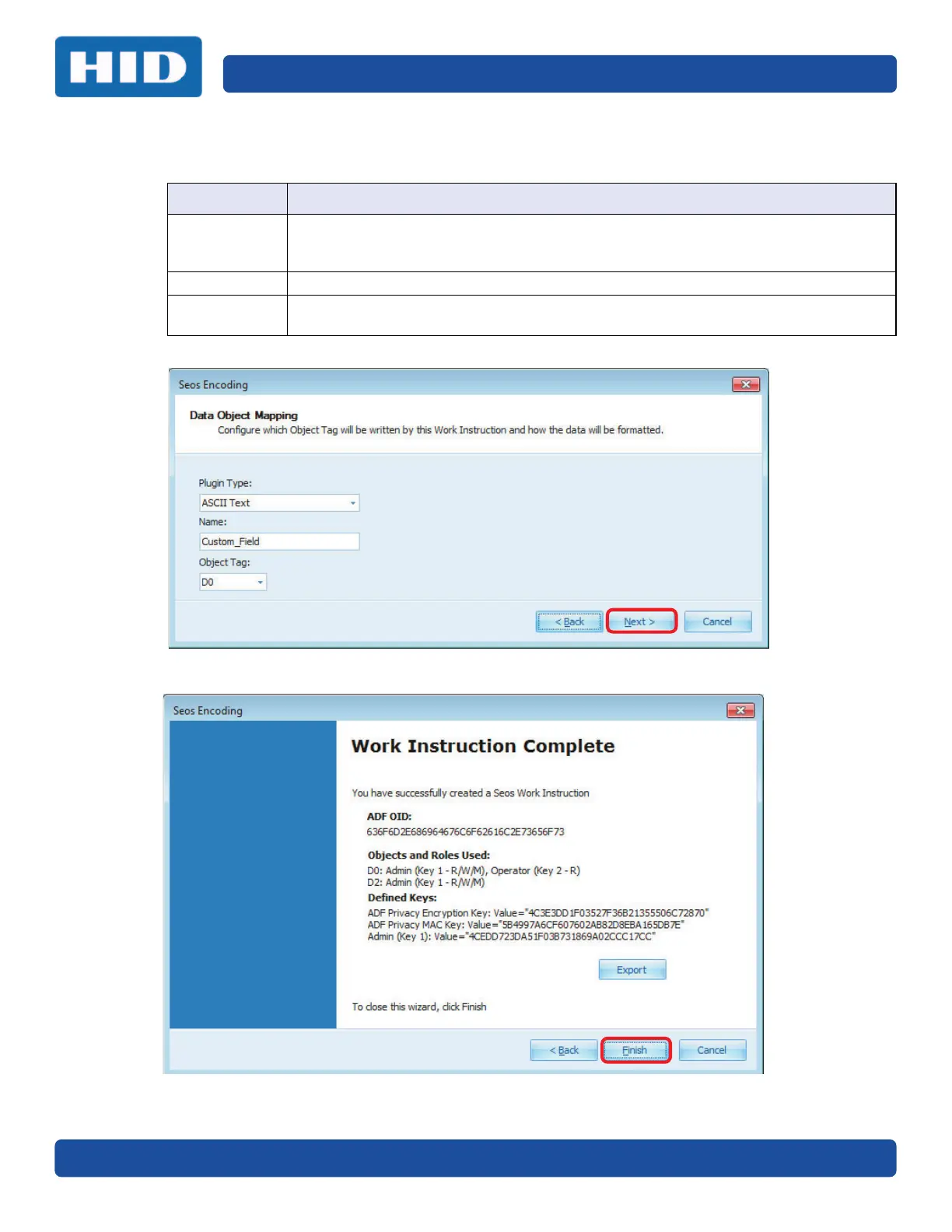

7. Data Object Mapping: Configure which Object Tag will be written by this Work Instruction and
how the data will be formatted, and click Next.
8. Review the configuration summary and click Export (to a .txt file) if required. Click Finish.
9. Return to Section 5.5: Create a Work Order, step 5 to save the Work Order.
Field Description
Plugin Type
This defines how the data will be entered by the user in the Work Order Manager, or in
Data Entry. Options are ASCII Text, Hexadecimal Data, Unicode Text, or Signed 64-bit
Integer.
Name
This defines the name of the data field in which the user will enter the custom data.
Object Tag
If more than one Object Tag is defined in the ADF, select which Object Tag this Work
Instruction should read or write. The default is D0.
