July 2017 PLT-01067, Version: A.7
Work Instruction Wizard Page 6-21

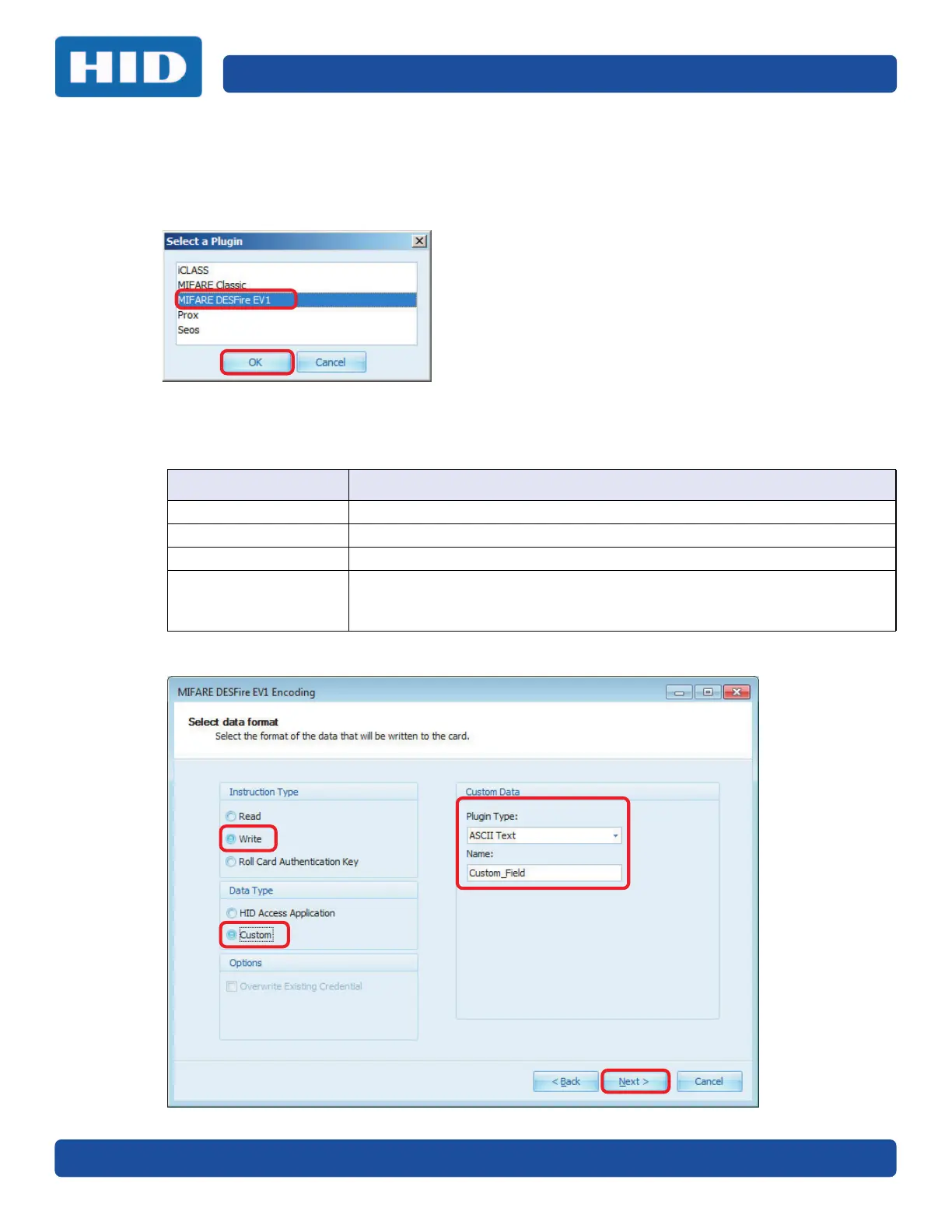

6.3.2 MIFARE DESFire EV1: Custom Encoding
This section covers the Work Instruction wizard for MIFARE DESFire EV1, with Custom Encoding.
1. Select the MIFARE DESFire EV1 technology type. Click OK.
2. The Work Instruction Wizard opens to allow you to configure the Work Instruction for MIFARE
DESFire EV1. Click Next.
3. Select Data Format: You can make selections from the following. When complete click Next.
Note: For this example, a Write/Custom/ASCII Text/Custom_Field configuration is selected.
Field Description
Instruction Type Read, Write, Roll Card Authentication Key, or Move Genuine SO Sector
Data Type For this example Custom must be selected.
Options Not available with Custom.
Custom Data Plugin Type: ASCII Text, Hexadecimal Data, Unicode Text
Name: Modify the Name, if needed. Note: Name field constitutes column in
Work Order data view.
